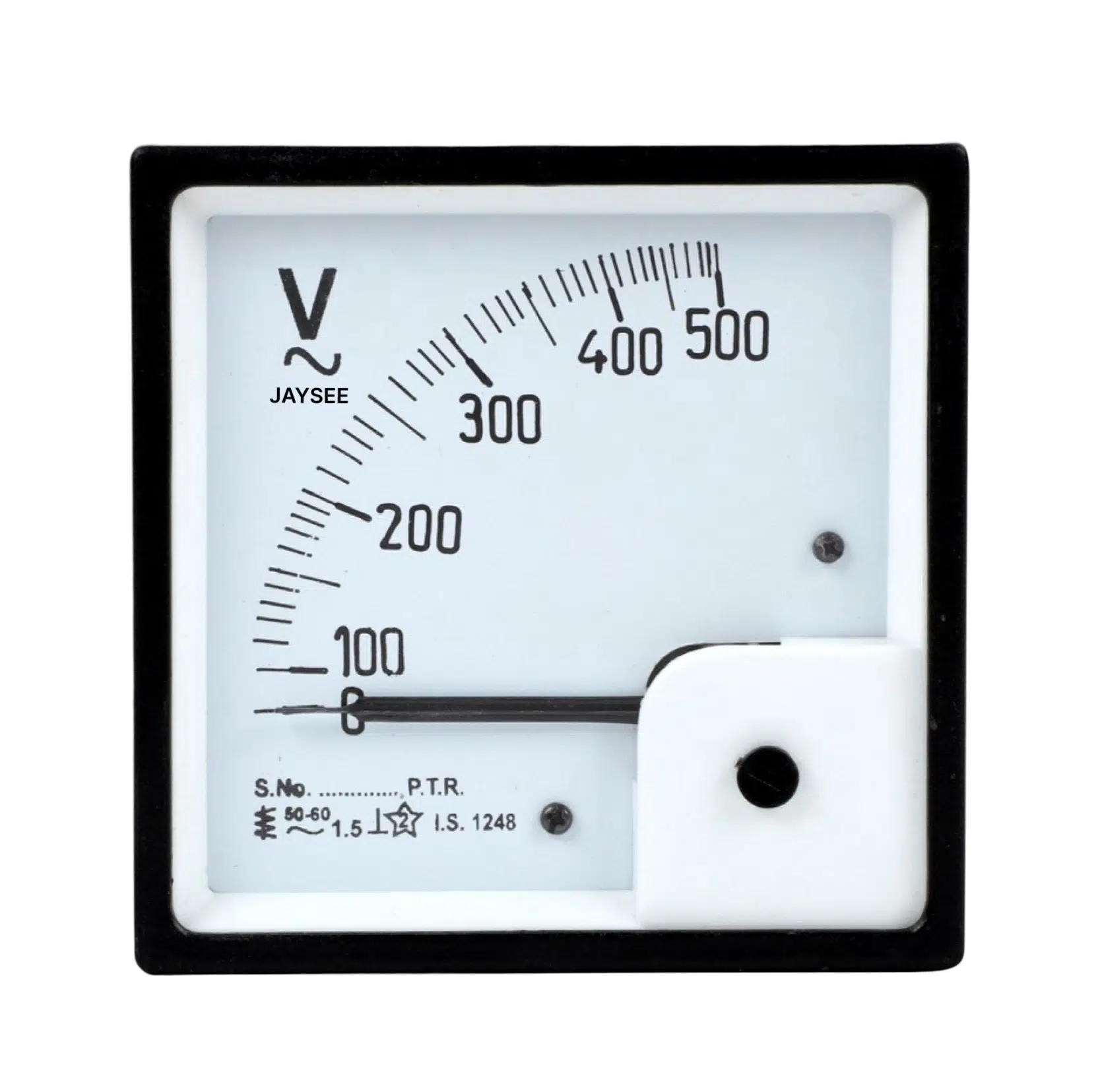

Analog Voltmeter Panel Type 500V AC DC

An analog voltmeter, specifically of the moving iron type, is a widely used instrument for measuring electric potential difference between two points in a circuit. This device utilizes a simple yet effective mechanism to provide readings on a calibrated dial. When a voltage is applied, the moving iron element within the voltmeter interacts with a magnetic field, causing it to move. This movement is translated into a rotational motion, which is then indicated on the device’s scale.

The fundamental principle behind the moving iron voltmeter is based on the behavior of magnetic forces. When an electric current flows through a coil, it generates a magnetic field. The moving iron component, usually a small piece of iron, experiences a force proportional to the current and the resulting magnetic field. As the voltage increases, the current in the coil rises, leading to a greater force on the moving iron. This allows for accurate measurement of voltage across a wide range of values.

Moving iron voltmeters are known for their durability and reliability, making them suitable for various applications in both laboratory and field settings. Unlike digital voltmeters, these instruments provide a continuous, real-time reading, which can be advantageous for observing fluctuations in voltage. The analog display can sometimes offer a clearer understanding of trends, especially in dynamic situations where changes occur rapidly.

However, while moving iron voltmeters have many advantages, they are not without limitations. Their accuracy can be affected by factors such as temperature changes and external magnetic fields. As a result, while they remain a popular choice for many applications, alternative measurement technologies, like digital voltmeters, are also commonly utilized for tasks requiring higher precision. Overall, the moving iron voltmeter remains an important tool in electrical measurement, appreciated for its straightforward design and functionality.
