Hand Driven Van De Graaff Generator

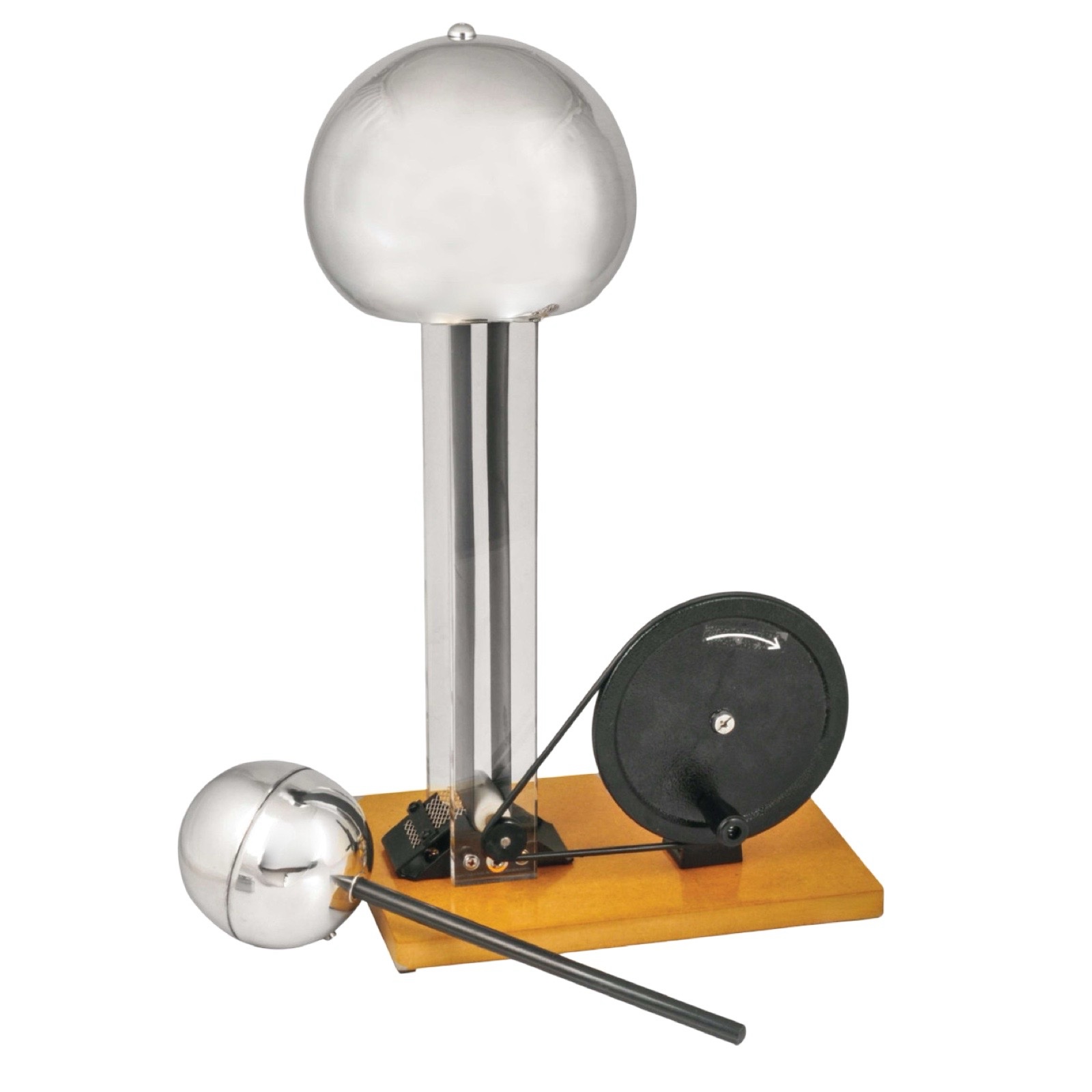

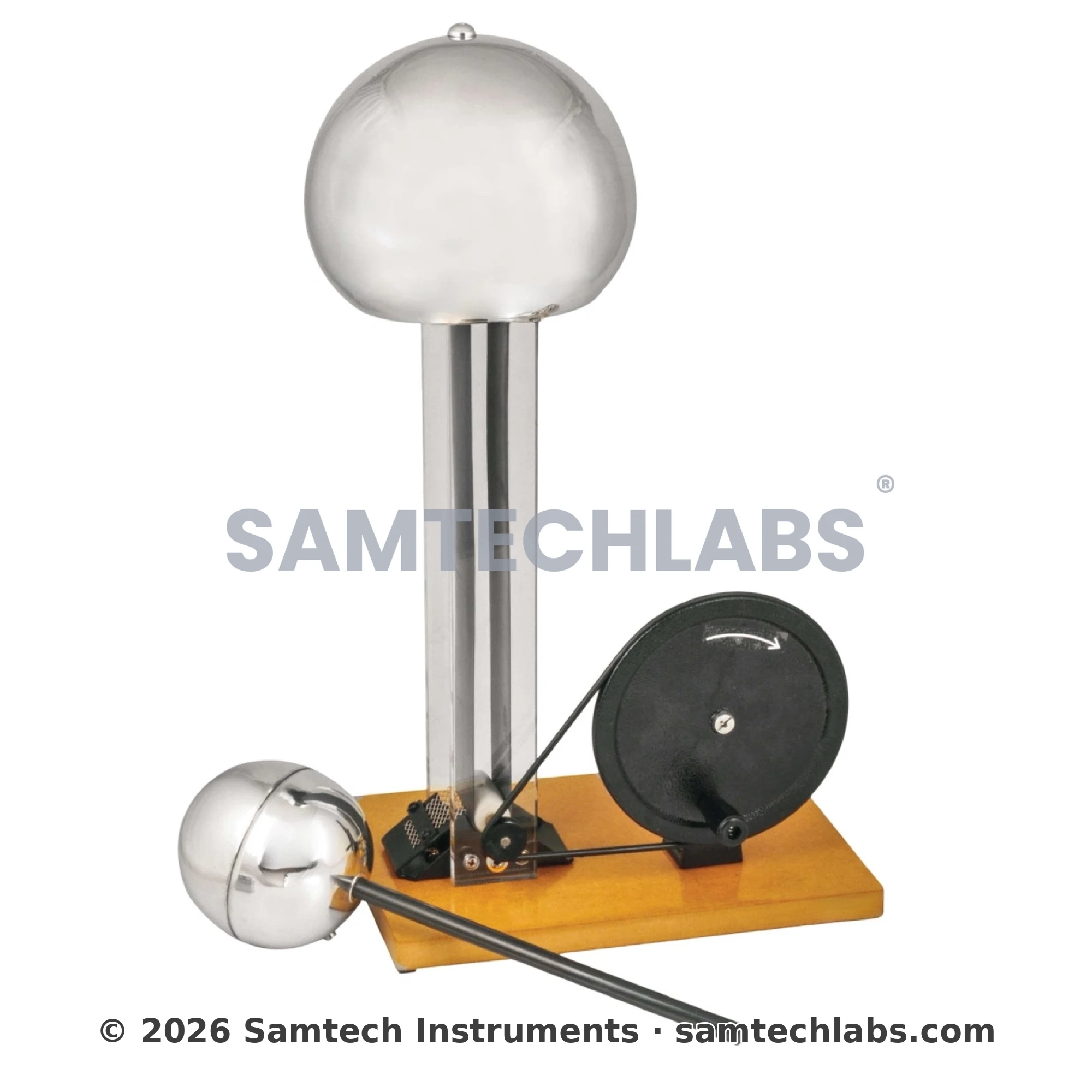

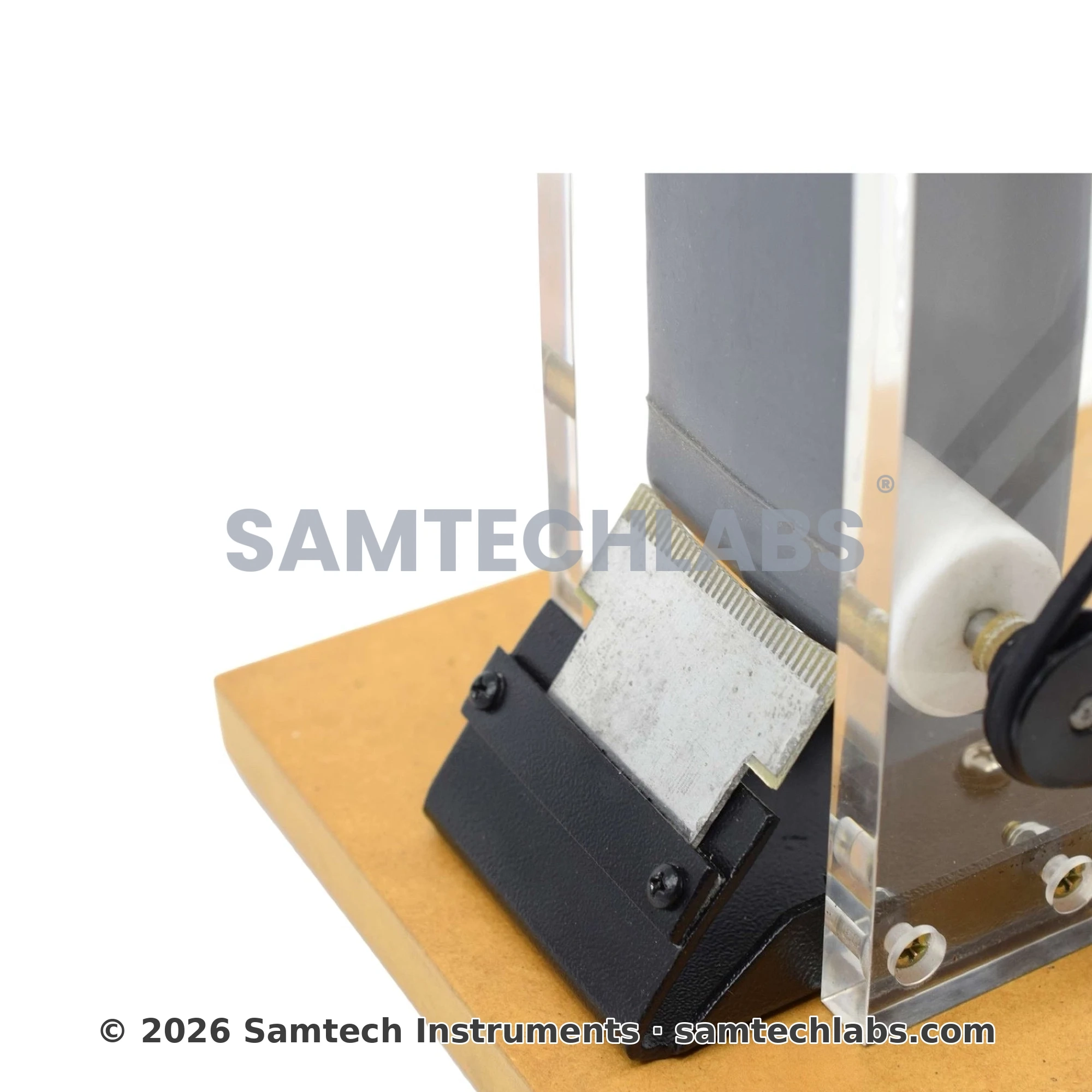

The Hand Driven Van de Graaff generator is an electrostatic generator that produces high voltage through the process of charging a metal sphere. The fundamental mechanism revolves around a moving belt, usually made of rubber, which transports electric charge from a low voltage source to the sphere. As the belt moves, it rubs against a comb-like structure that helps to transfer electrons to the belt, effectively charging it. When the belt reaches the metal sphere at the top, it transfers the accumulated charge, causing the sphere to become highly charged and build a substantial electric potential.

The operation of the Van de Graaff generator relies on the principles of electrostatics and the behavior of electric charges. The generator typically contains an insulated base where the motor drives the belt. The belt starts moving and gains charge from the stationary combs positioned at the base, which serve to provide electrons to the belt through the process of triboelectric charging. This belt then rises and carries the charge to the upper metal dome, where it becomes concentrated due to the shape of the sphere and the nature of electric field distribution around it. As the potential builds up, the voltage can reach several million volts.

One of the fascinating aspects of the hand driven Van de Graaff generator is its ability to demonstrate various principles of electricity, such as electric fields, capacitance, and charge distribution. When the generator reaches a high enough voltage, it can produce impressive visual and auditory effects, like sparks and arcs of electricity that leap from the sphere to nearby objects. This not only serves as a striking display of electrical energy but also provides a hands-on educational tool for illustrating complex scientific concepts in physics, making it both a powerful scientific instrument and an engaging teaching aid.
