Magnetic Field Along Circular Loop

Magnetic Field Along Circular Loop – Current Carrying Coil Demonstration Model | Manufactured by Samtech Instruments

Samtech Instruments presents the Magnetic Field Along Circular Loop Model, a physics demonstration apparatus designed to show the magnetic field produced by a current‑carrying circular coil. This model helps students understand electromagnetic field formation and direction of magnetic field lines.

Ideal for physics laboratories, STEM education, and classroom demonstrations, the model provides clear visualization of magnetic field inside and around a circular loop.

What Is Magnetic Field Along Circular Loop Model?

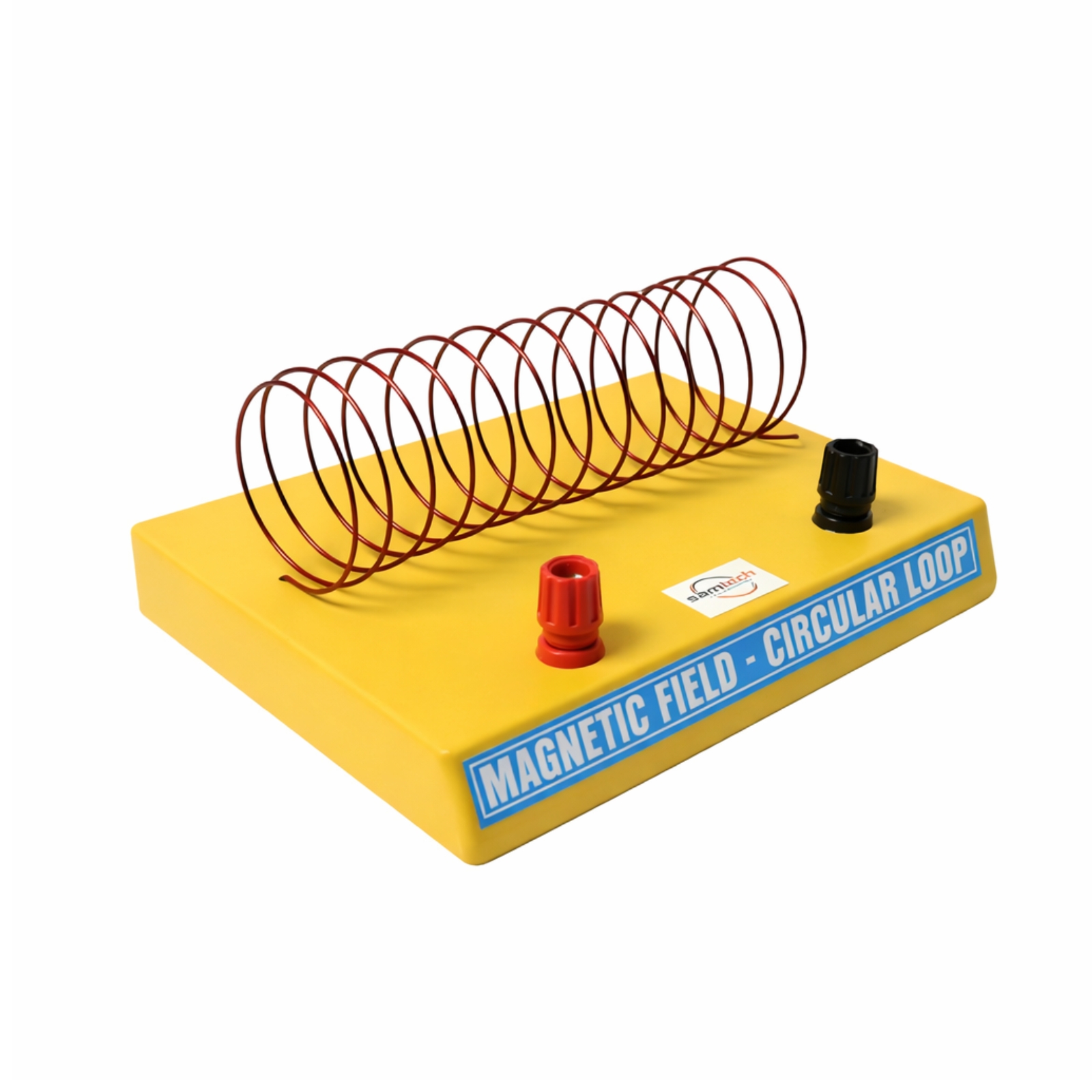

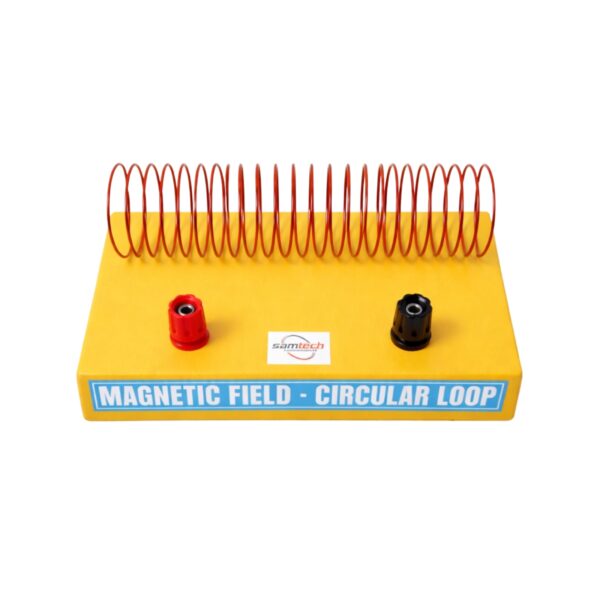

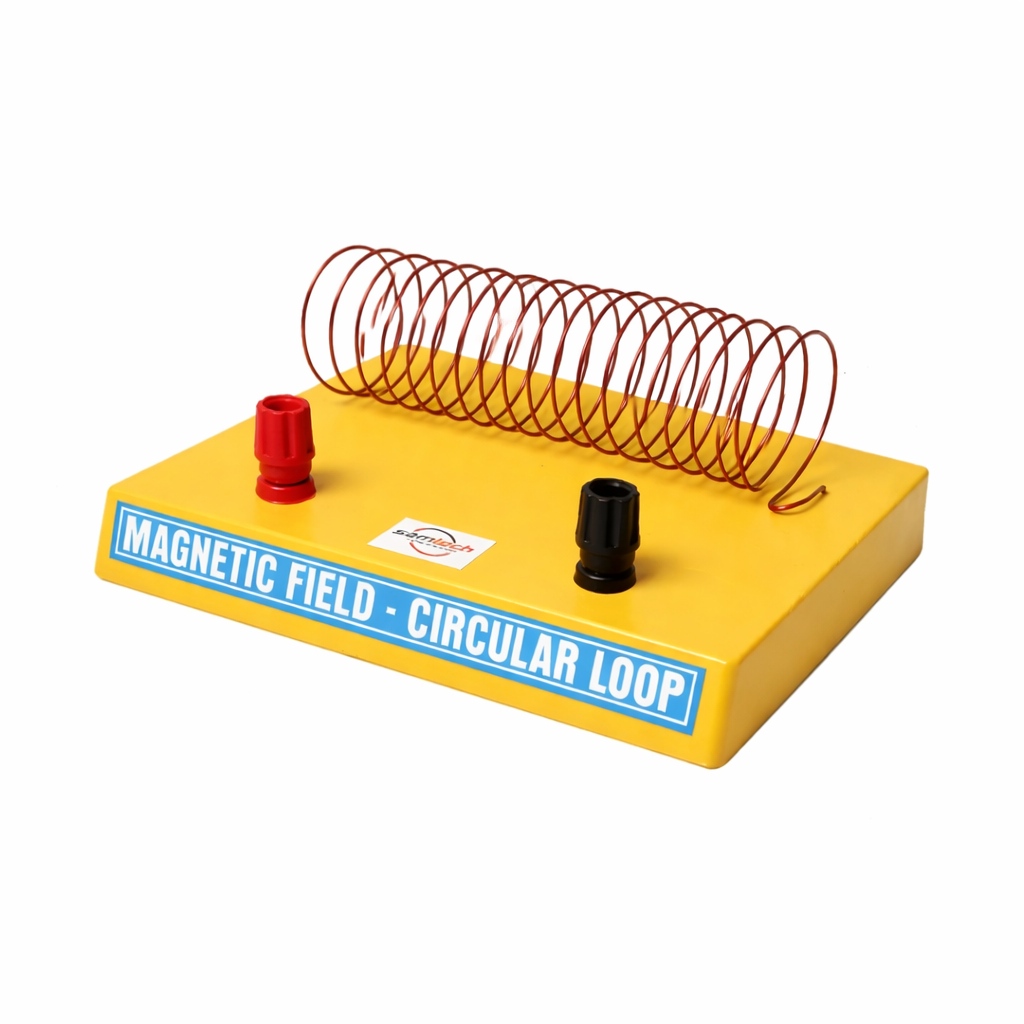

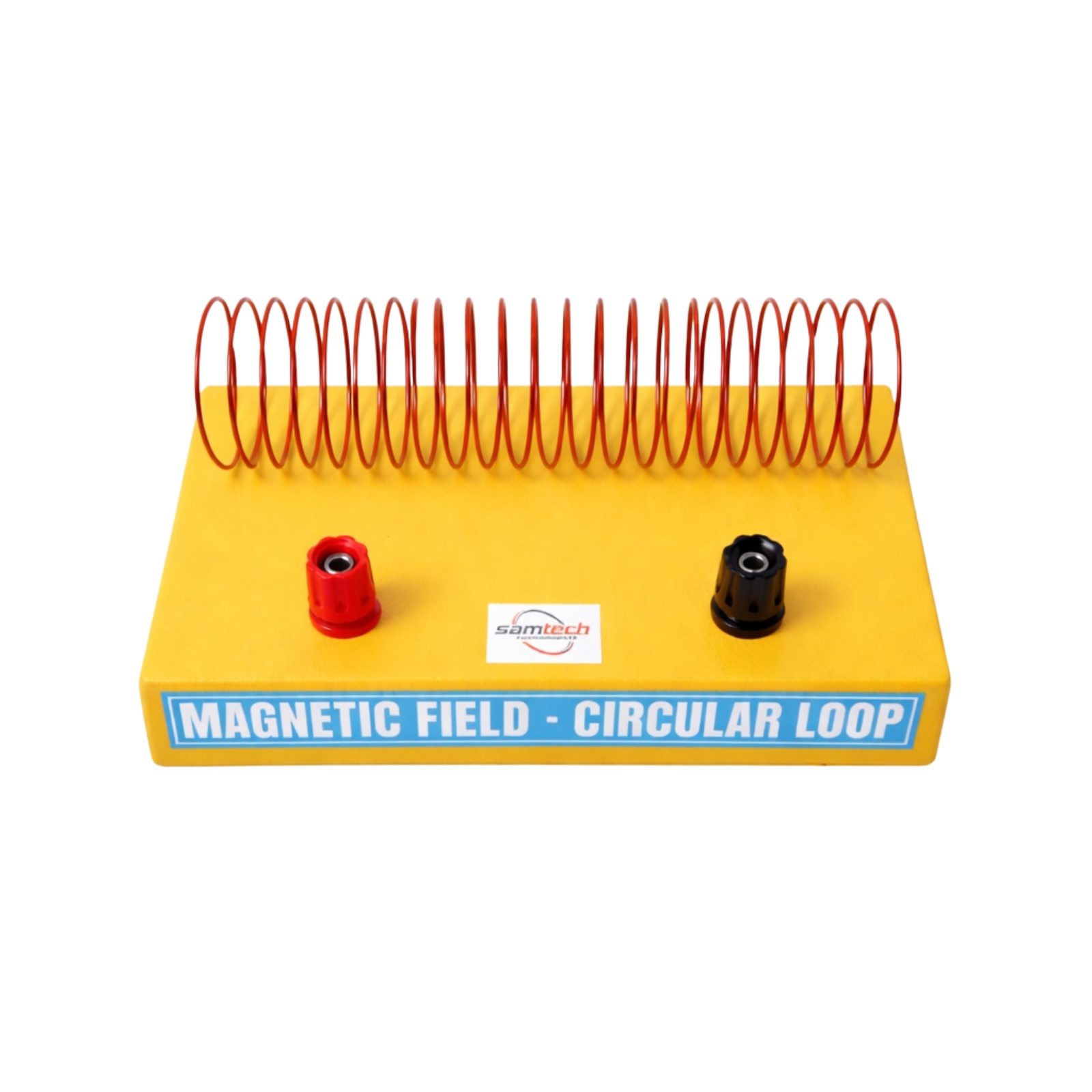

The model consists of a circular coil mounted on a base with two terminals. When electric current flows through the circular loop, a magnetic field is produced along the axis of the coil, similar to a bar magnet.

Using a compass, students can observe the direction of magnetic field and understand the Right Hand Grip Rule.

Specifications

• Product: Magnetic Field Along Circular Loop

• Base Size: 5″ × 6″

• Coil Type: Circular loop conductor

• Terminals: Two connection terminals

• Mounting: Fixed on durable base

• प्रयोग: Magnetic field demonstration

Key Features

🧲 Demonstrates magnetic field of circular loop
⚡ Shows effect of current in coil
📐 Demonstrates Right Hand Grip Rule
🏫 Ideal for classroom demonstrations
🔬 Physics & STEM learning model
🪛 Durable mounted base construction

Educational Applications

Magnetic Field of Circular Coil

Shows field along axis of loop

Right Hand Grip Rule

Helps determine field direction

Electromagnetism Concept

Relates current and magnetism

Physics Lab Experiment

Used with compass for observation

Classroom Teaching Aid

Clear demonstration model

Ideal For

• School physics laboratories

• STEM labs

• Electricity & magnetism experiments

• Classroom demonstrations

• Science exhibitions

• Educational institutions

FAQ

Q1: What does this model demonstrate?
A: It demonstrates magnetic field produced by a current carrying circular loop.

Q2: What is the base size?
A: Base size is 5″ × 6″.

Q3: How is it used?
A: Current is passed through coil and magnetic field observed using compass.

Q4: Which rule is demonstrated?
A: Right Hand Grip Rule.

Q5: Is it suitable for school labs?
A: Yes, ideal for physics labs and classroom teaching.

Conclusion

The Magnetic Field Along Circular Loop Model by Samtech Instruments is an essential electromagnetism demonstration apparatus for understanding magnetic field produced by current carrying coil. With 5″ × 6″ base size, it is perfect for school labs, STEM learning, and classroom demonstrations. ⚡🧲
