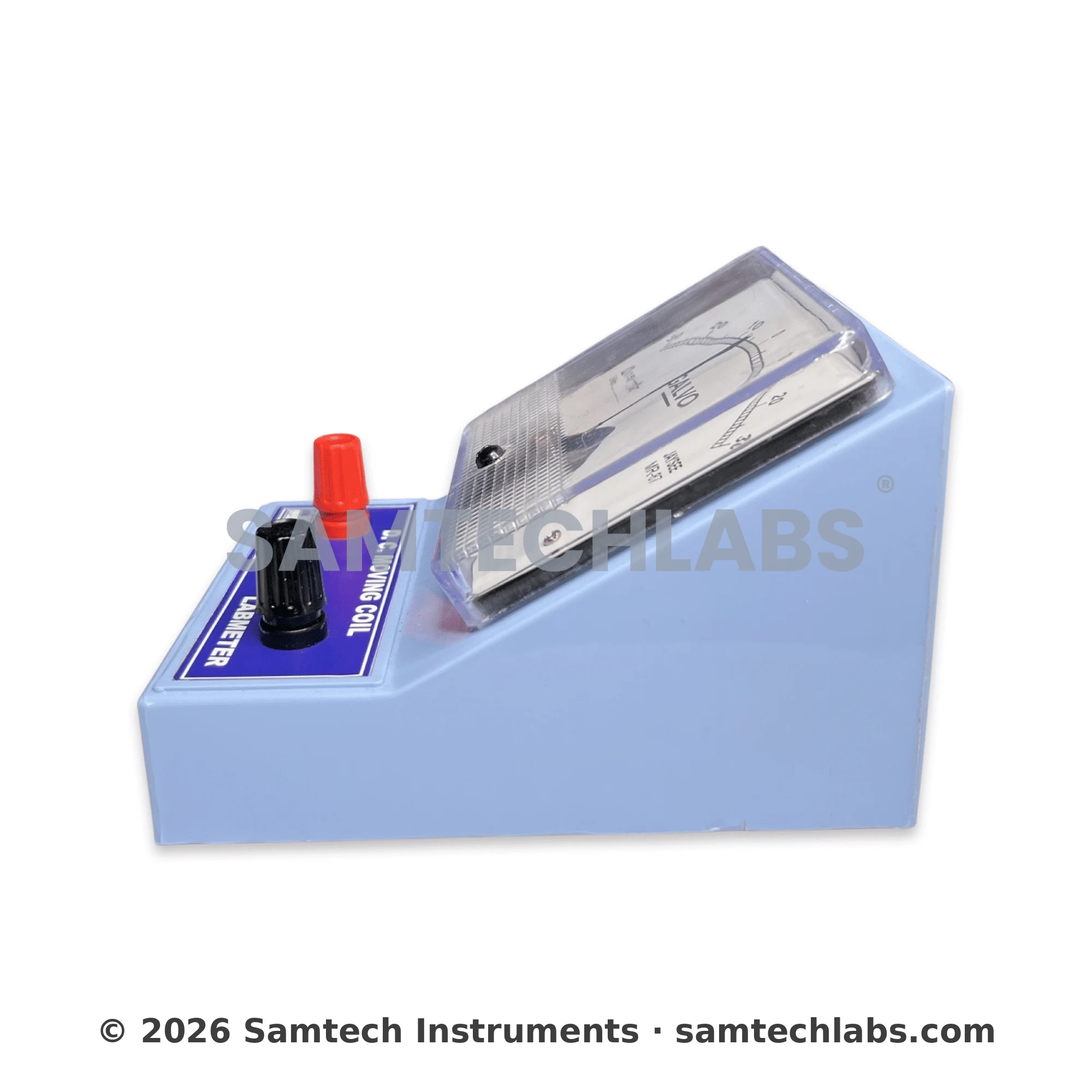

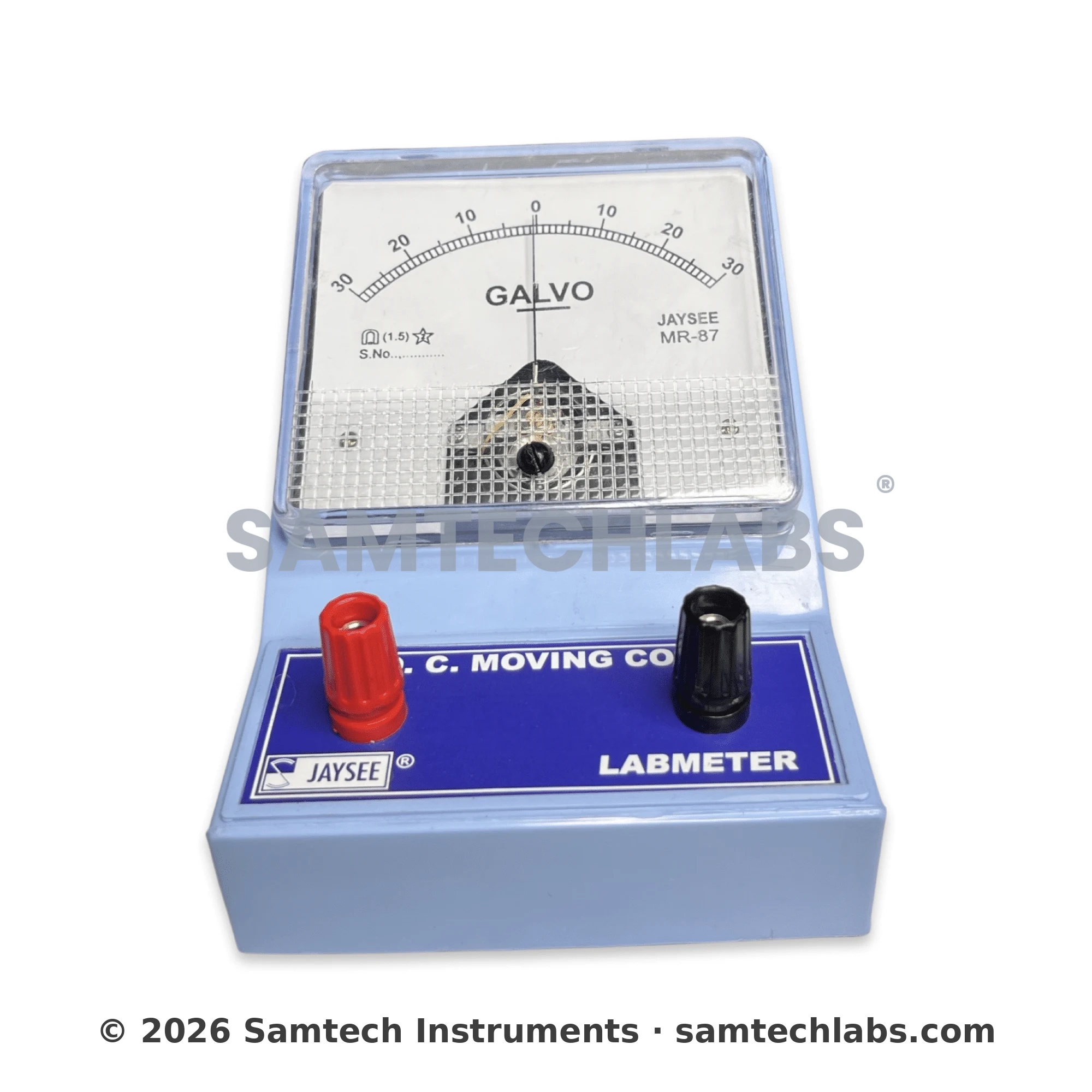

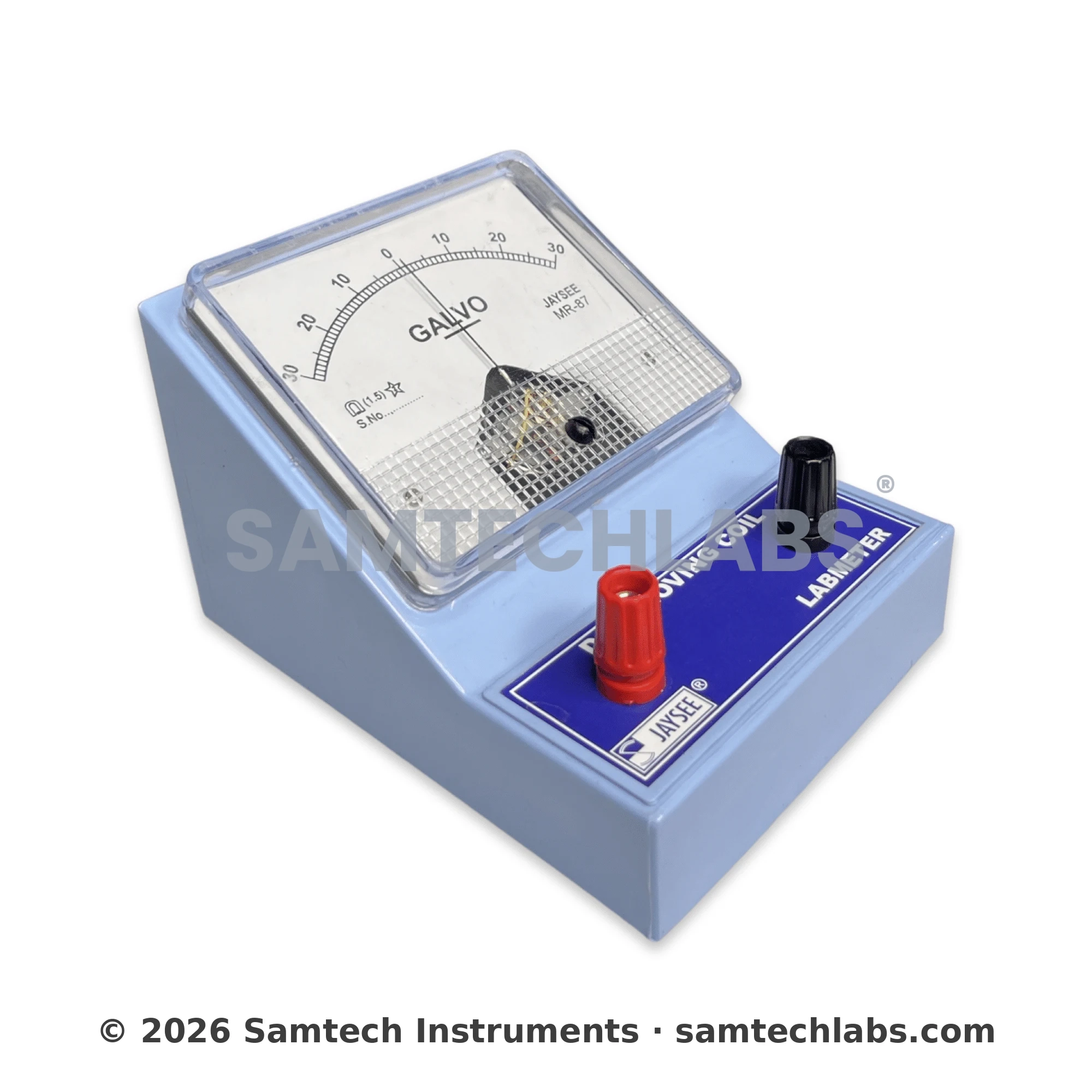

MR87 Desk Stand Meter

Salient Features for MR87 Desk Stand Meter | Voltmeter Ammeter & Galvanometer

  • Specially designed for easy use in educational institutions and laboratories
  • Meters are inclined to be easy to read and are mounted on ABS plastic stands with brass terminals.
  • The rugged movement ensures sustained accuracy and reliability,
  • Clear and well-defined dial markings with knife edge pointer
SKU: SAM-4

Original price was: ₹500.Current price is: ₹190. (Exc. GST)

Enter Range like 10V, 5A etc

11 People watching this product now!
  • Pick up from the Samtech Store in Ambala

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

  • Warranty 1 year
  • Free 7-Day Replacement

Description

Range of DC Moving Coil Ammeter

Single Range – 250uA, 300uA, 500uA, 1mA, 5mA, 10mA, 50mA, 100mA, 300mA, 500mA, 1A,3A, 5A, 10A

Dual Range – 1A/5A, 2.5A/5A, 500mA/1A

Triple Range – 50mA/500mA/5A

Range of DC Moving Coil Voltmeter

Single Range – 100mV, 150mV, 250mV, 500mV, 1V, 2V, 3V, 5V, 10V, 15V, 20V, 25V, 100V, 150V, 300V

Dual Range – 1V/5V, 2.5V/5V

Triple Range – 3V/15V/30

Range of DC Moving Coil Galvanometer

Single Range – 30-0-30 G, 50-0-50 G, 35-0-35 G

Specification

Overview

Dimensions 14 × 10 × 10 cm
Brand JAYSEE
Accuracy +/- 2 F.S.D
Color Blue , Yellow
Scale length 97mm
Packaging Thermocol Box
