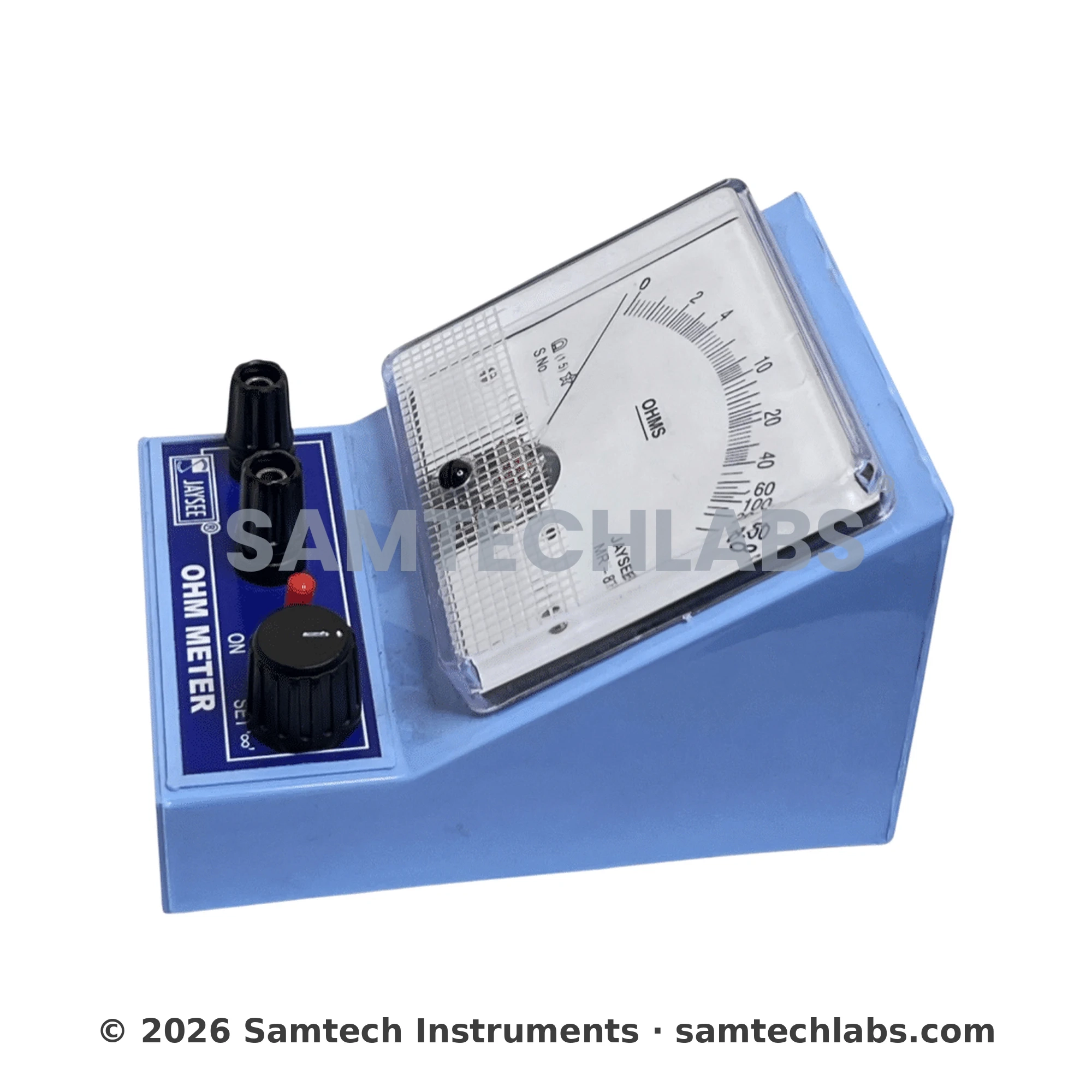

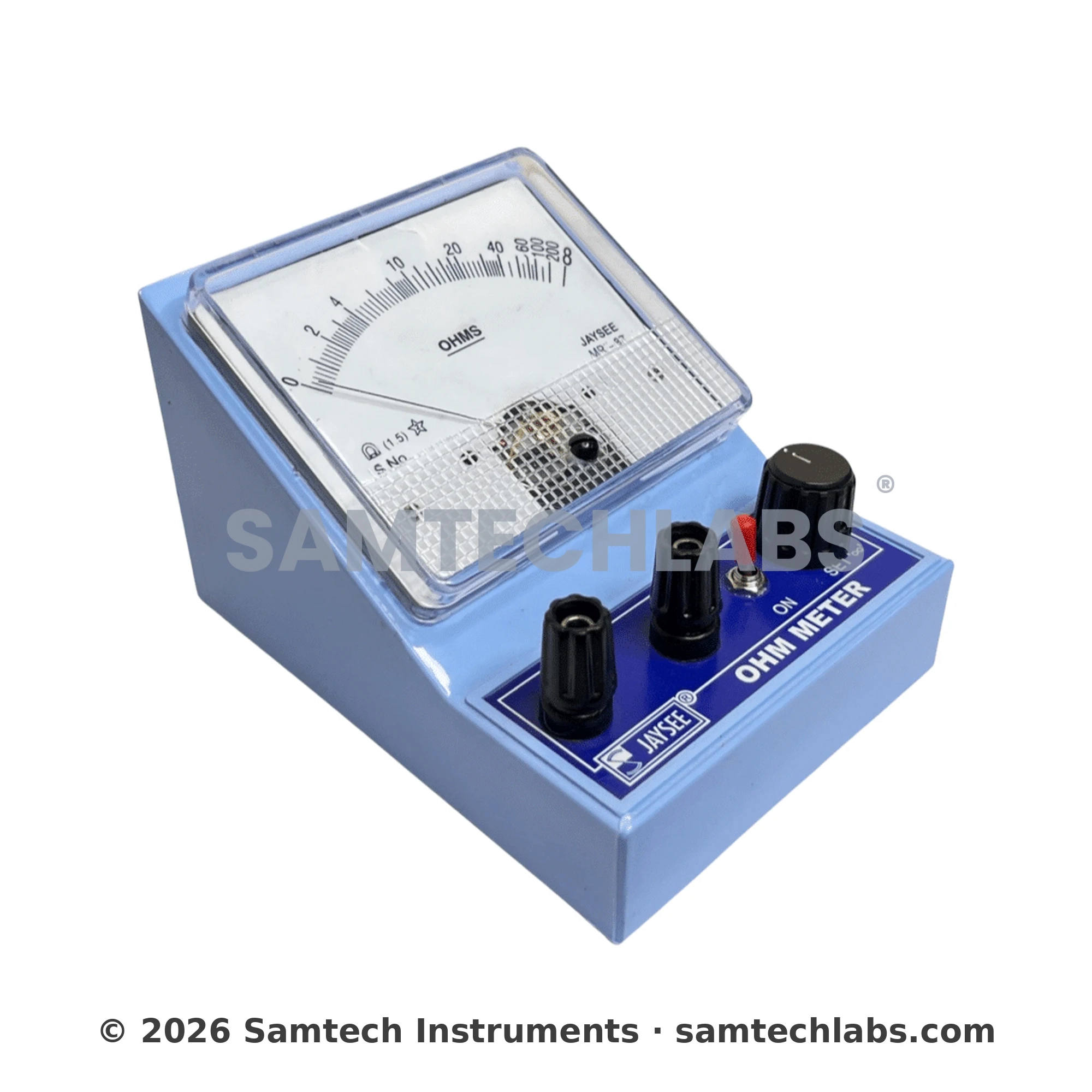

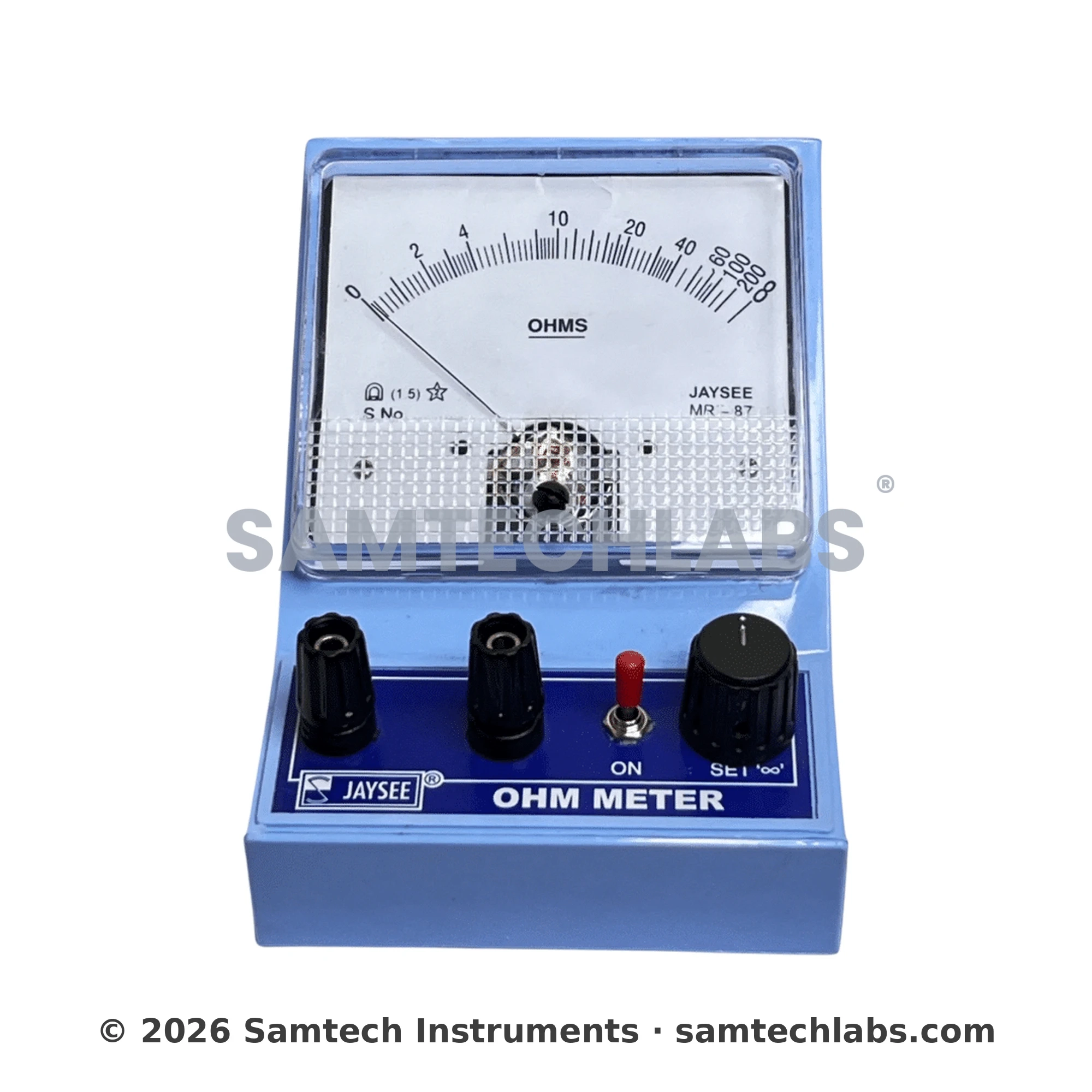

Ohm Meter Shunt Type Analog

An ohm meter is a type of electrical meter that measures electrical resistance in ohms. Resistance is a measure of how difficult it is for electric current to flow through a component or circuit. Resistance is usually represented by the symbol "R" and is measured in ohms (Ω).

Ohm meters are commonly used in electrical and electronic engineering to measure the resistance of various components such as resistors, capacitors, and diodes. They can also be used to check for continuity between different points in a circuit and to measure the resistance of wires and cables.

When using an ohm meter, it is important to take certain precautions to avoid damaging the component being measured or the meter itself. For example, the circuit being measured should be turned off and disconnected from any power source to avoid the risk of electric shock. The meter's probes should be touched to the correct points in the circuit, and the correct range should be selected on the meter to ensure an accurate measurement.

Overall, ohm meters are essential tools for anyone working with electrical and electronic systems and are widely used in a variety of industries, including automotive, aerospace, and telecommunications.
