7 Decade Resistance Box

The JAYSEE 7 Decade Resistance Boxes, manufactured by Samtech, are precision instruments designed for rapid and accurate resistance measurements. These resistance boxes feature specially designed switches that allow for precise adjustments, covering a wide range of resistance values from 1 to 11,111,110 Ohms.

Key Specifications:

• Decades Range: 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ
• Total Resistance Range: 1 Ω to 11,111,110 MΩ
• Accuracy:
  • 0.5% for 1 Ω
  • 1% for 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, and 1 MΩ
• Increment Step: 1 Ω
• Range of Resistance: Seven decades
• Power Rating of Resistors: 1W
• Weight: Less than 1.5 kg
• Warranty: 1 year

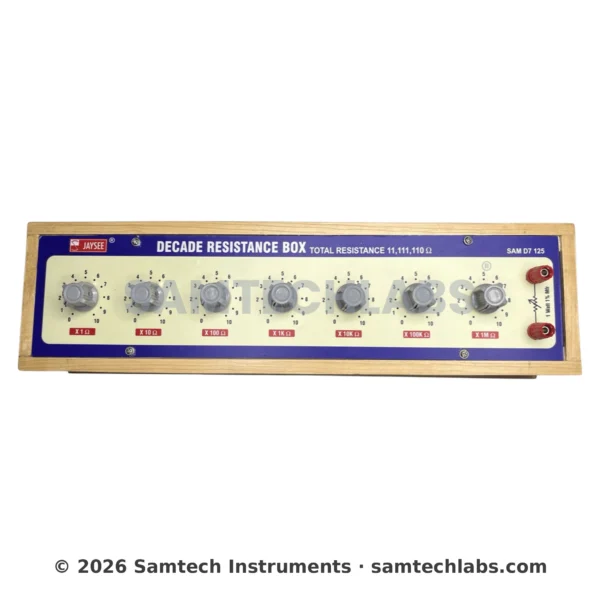

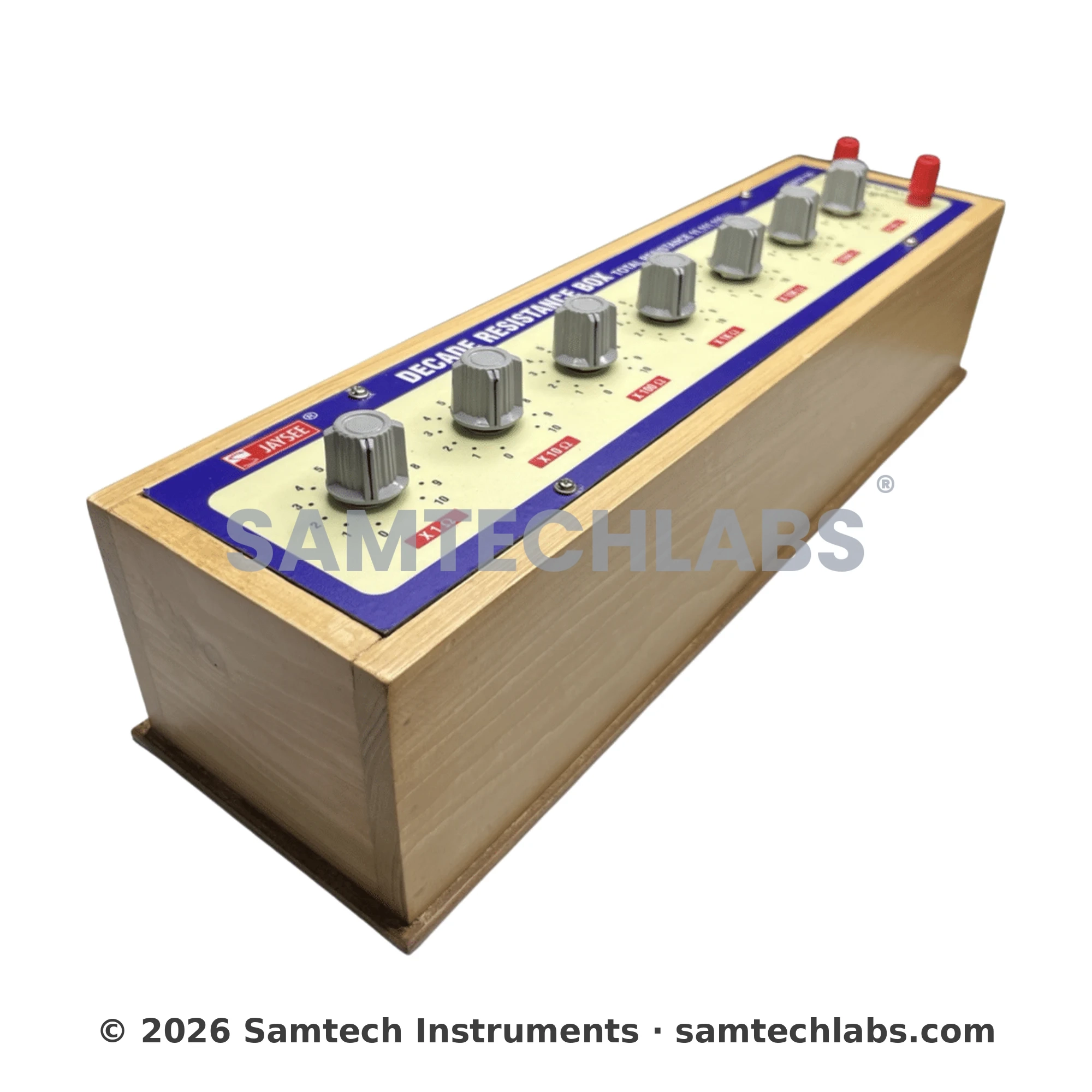

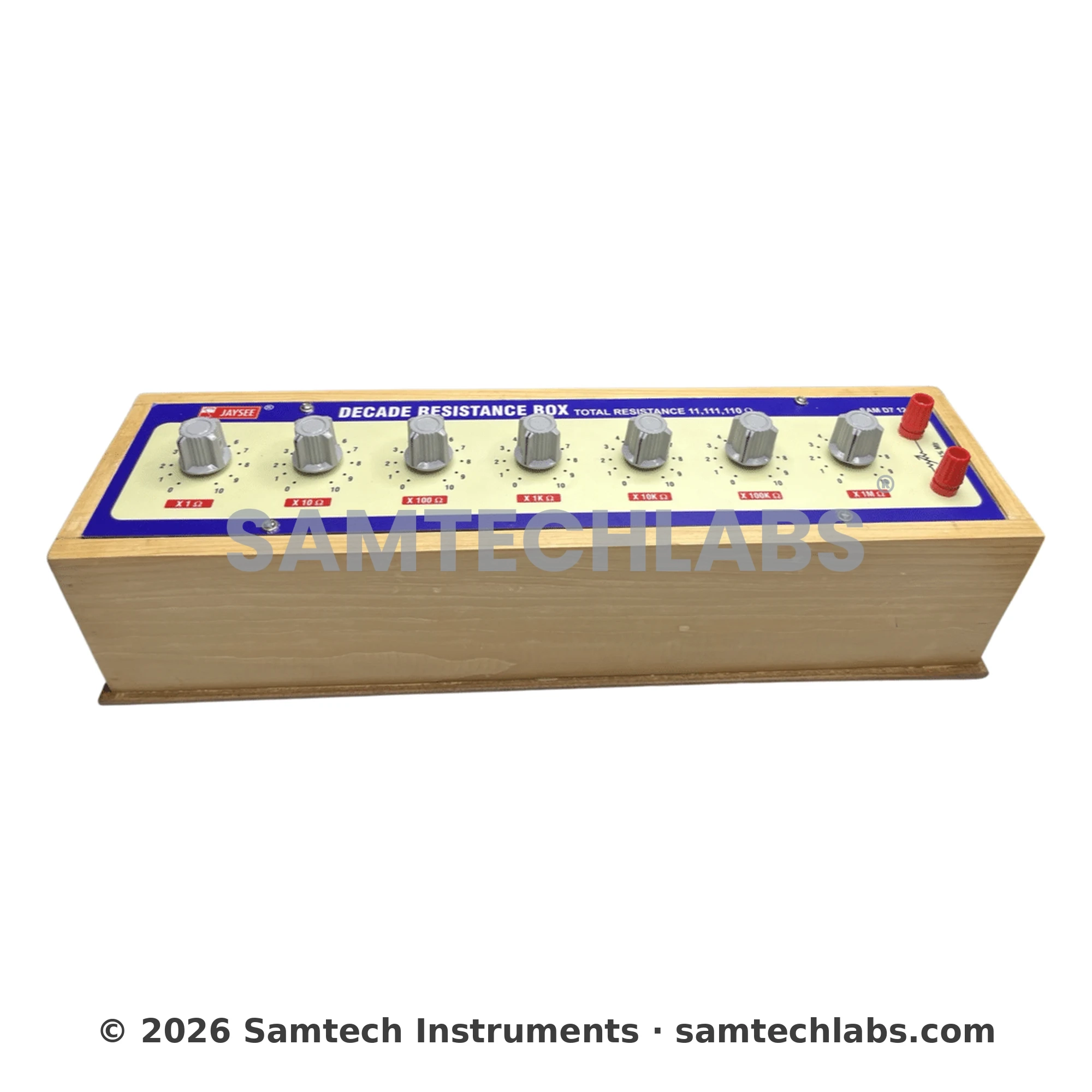

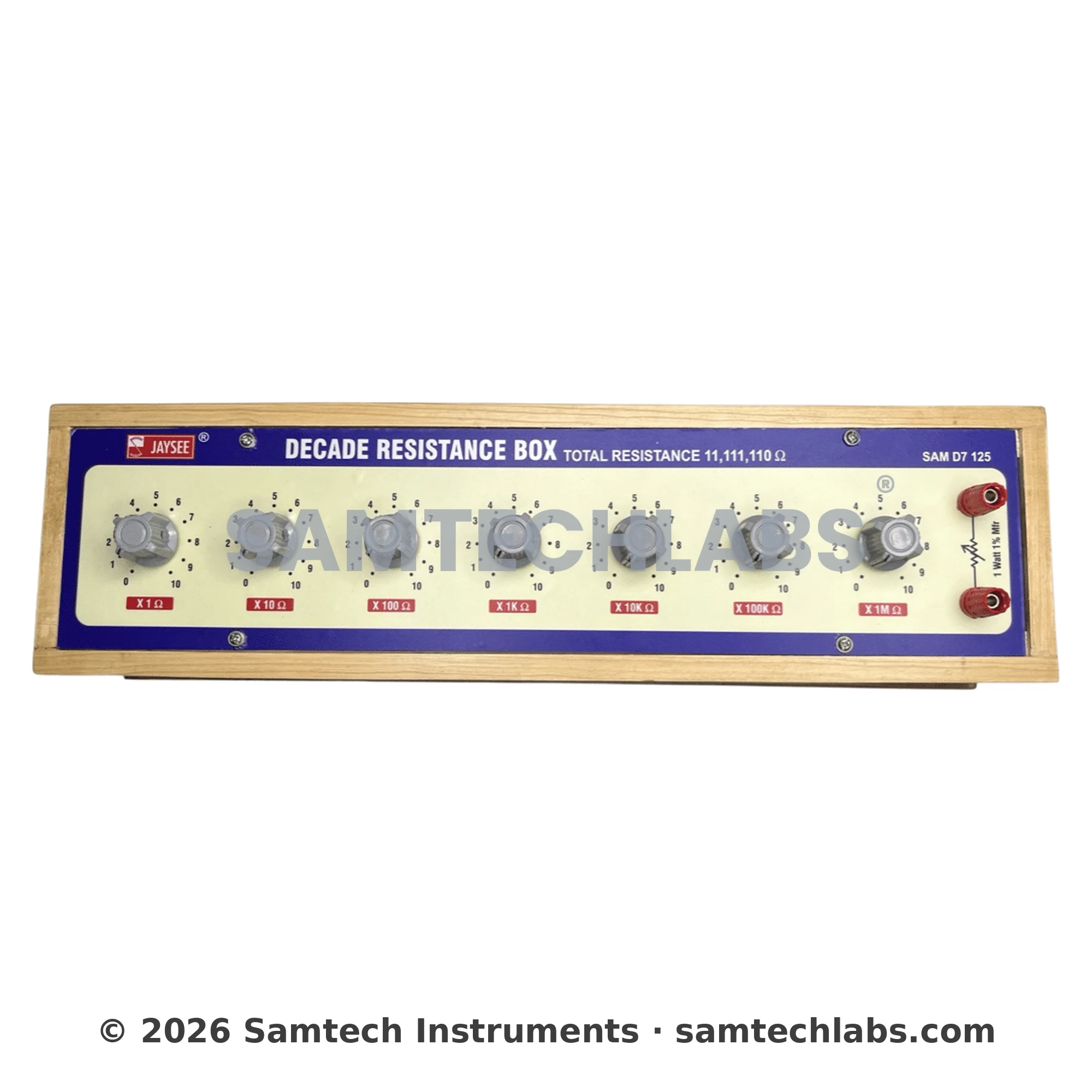

The decade resistance boxes are designed with a panel-mounted dial assembly, enclosed in a sturdy metal or wooden box to protect against dust and acid fumes. Each decade switch has 1 to 10 positions, including a zero position, allowing for precise and reliable resistance adjustments. The resistance values are of ±1% tolerance and have a power rating of 1 Watt. The knobs on the resistance boxes are designed with ribs for comfortable operation, and the output socket terminals are of 4 mm in size.

The SAM-D7125 Decade Resistance Boxes by Samtech offer excellent accuracy, durability, and ease of use. With their wide range of resistance values, precise adjustments, and reliable performance, these resistance boxes are suitable for various laboratory applications, research facilities, and educational institutions. The product comes with a 1-year warranty, ensuring its quality and reliability.
