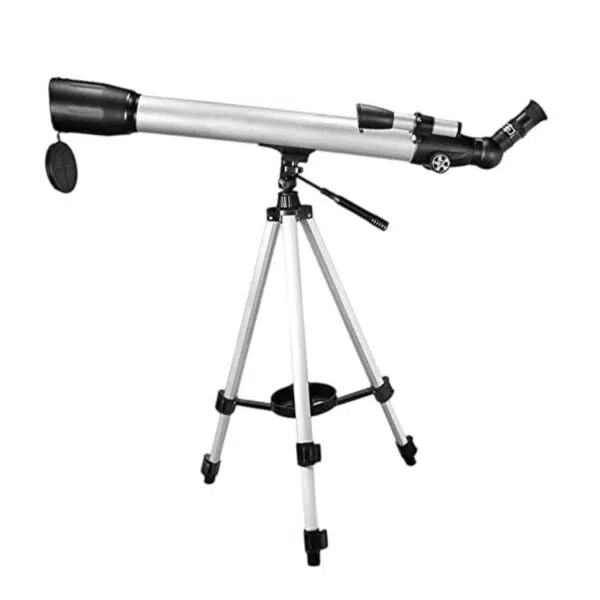

Astronomical Telescope
Original price was: ₹10,000.₹3,500Current price is: ₹3,500. (Exc. GST)
-48%

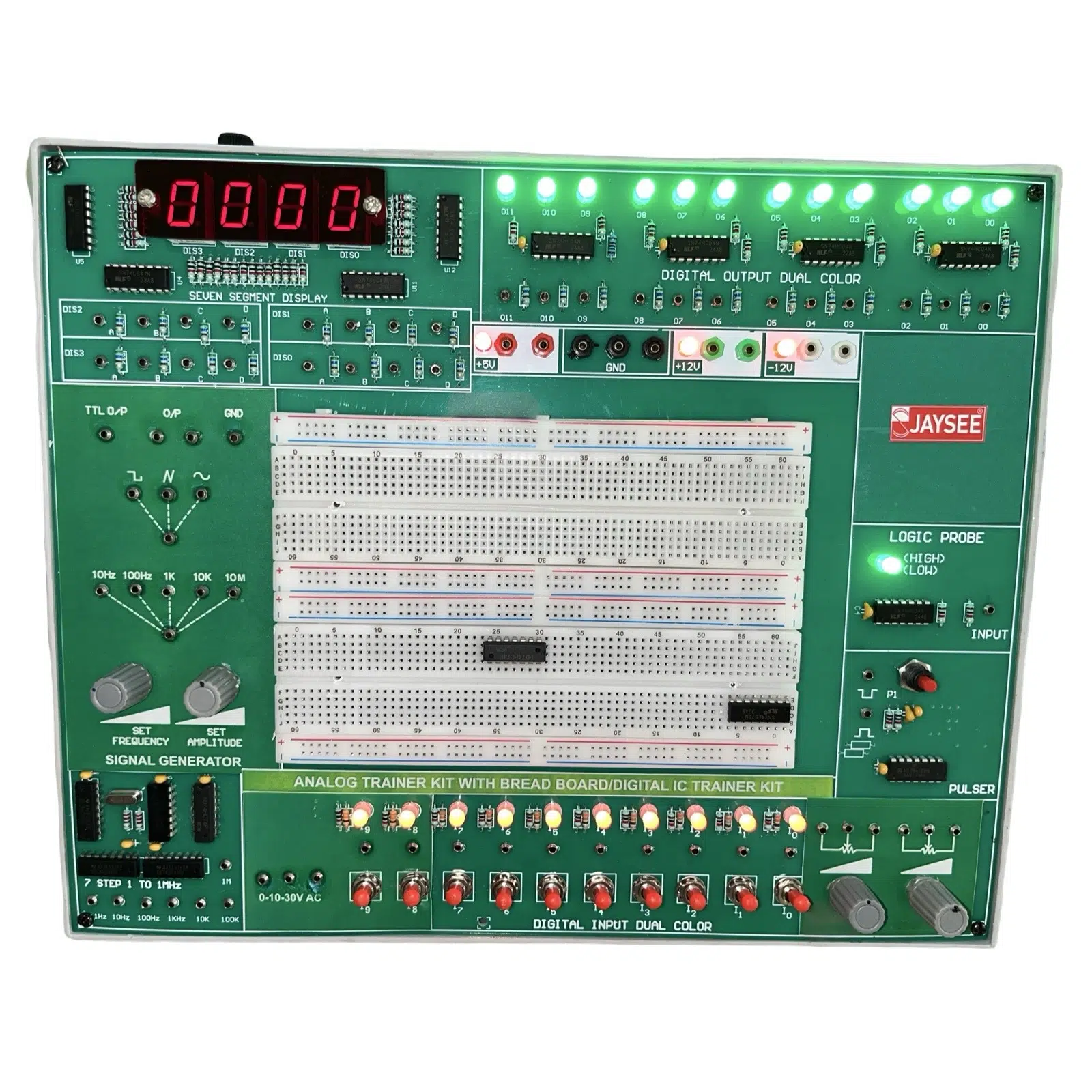

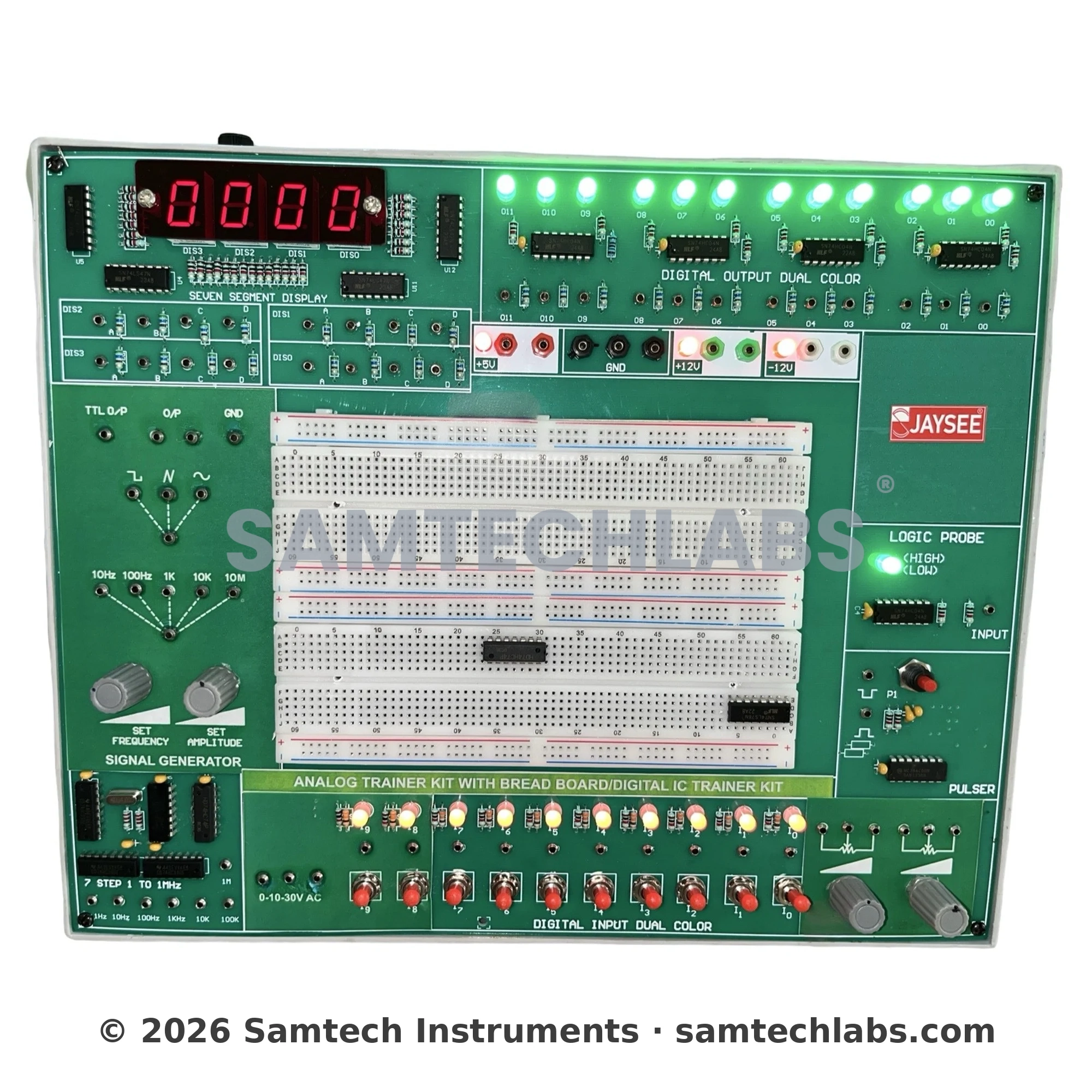

Analog & Digital IC trainer kit
Samtech’s Analog & Digital IC Trainer Kit combines TTL/CMOS logic experiments with on-board analog signal generation — 10 logic inputs, a wide-range function generator, a 1280-point breadboard and a dual DC/AC power supply on a single board, built for engineering and diploma electronics labs.
Original price was: ₹20,000.₹10,500Current price is: ₹10,500. (Exc. GST)
15
People watching this product now!
- Warranty 1 year
- Free 7-Day Replacement
Description
The Analog & Digital IC Trainer Kit is designed for practical experiments in digital electronics and IC fundamentals. It combines TTL/CMOS-compatible logic inputs and indicators with signal generation, a logic probe, breadboard space and built-in DC and AC power supplies for laboratory circuit work.
TTL/CMOS Logic – 10 logic-level inputs with input and output LED indicators.
Signal Generation – Fixed signal frequencies from 1 Hz to 10 MHz, plus sine, square and triangle waveform generation.
Practical Circuit Work – 1280-point breadboard with built-in DC and AC power supplies.
Technical Specifications
Logic Inputs & Indicators
- Logic-Level Inputs10, TTL/CMOS compatible
- Input Indicators10 dual-color LEDs
- Output Indicators10 LEDs
Signal & Function Generation
- Fixed Signal Generator1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz and 10 MHz
- Function GenerationSine, square and triangle
- Pulse GenerationSingle pulse using a push-button switch
- Logic ProbeFor checking logic-low, logic-high and pulse signals
Display & Board
- Display4-digit seven-segment display
- BreadboardOn-board 1280-point breadboard
Power Supply & Controls
- DC Power Supply+5 V and ±12 V
- AC Power Supply0–10–30 VAC
- PotentiometersTwo: 1 kΩ and 100 kΩ
Experiments You Can Perform
- Study of operation of all logic gates.
- Study of binary adders:
- Half Adder
- Full Adder
- Two-Bit Binary Parallel Adder
- Study of Half Subtractor.
- Study of Binary to Gray Code conversion.
- Study of Gray Code to Binary Code conversion.
- Study of Binary to Excess-3 Code conversion.
- Study of characteristics of various types of Flip-Flops.
- Study of Crystal Oscillator.
- Study of 4-Bit Binary Up/Down Counter.
- Study of Johnson Counter.
