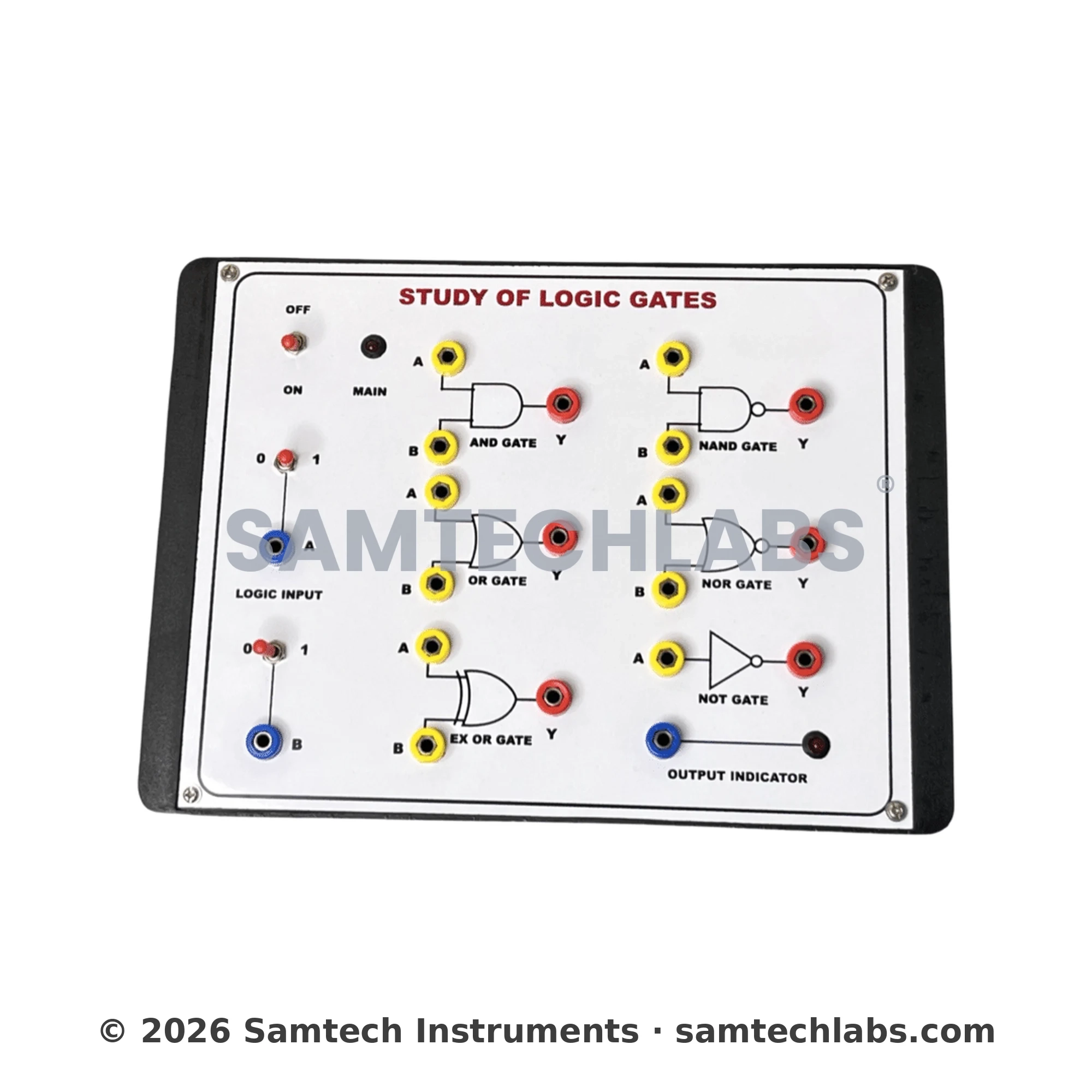

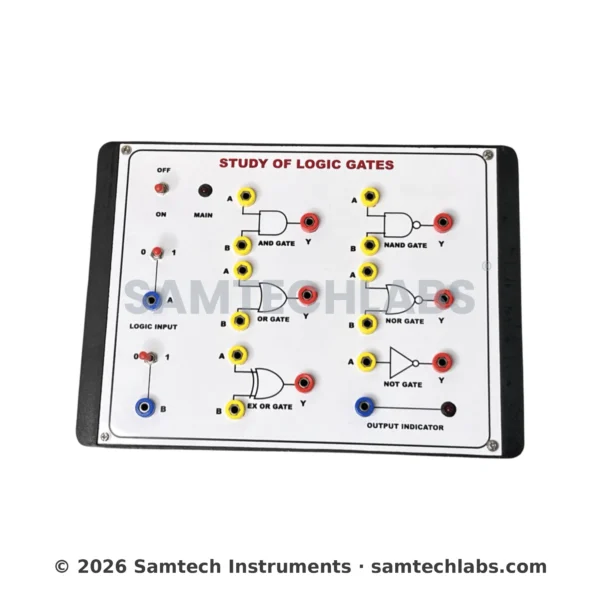

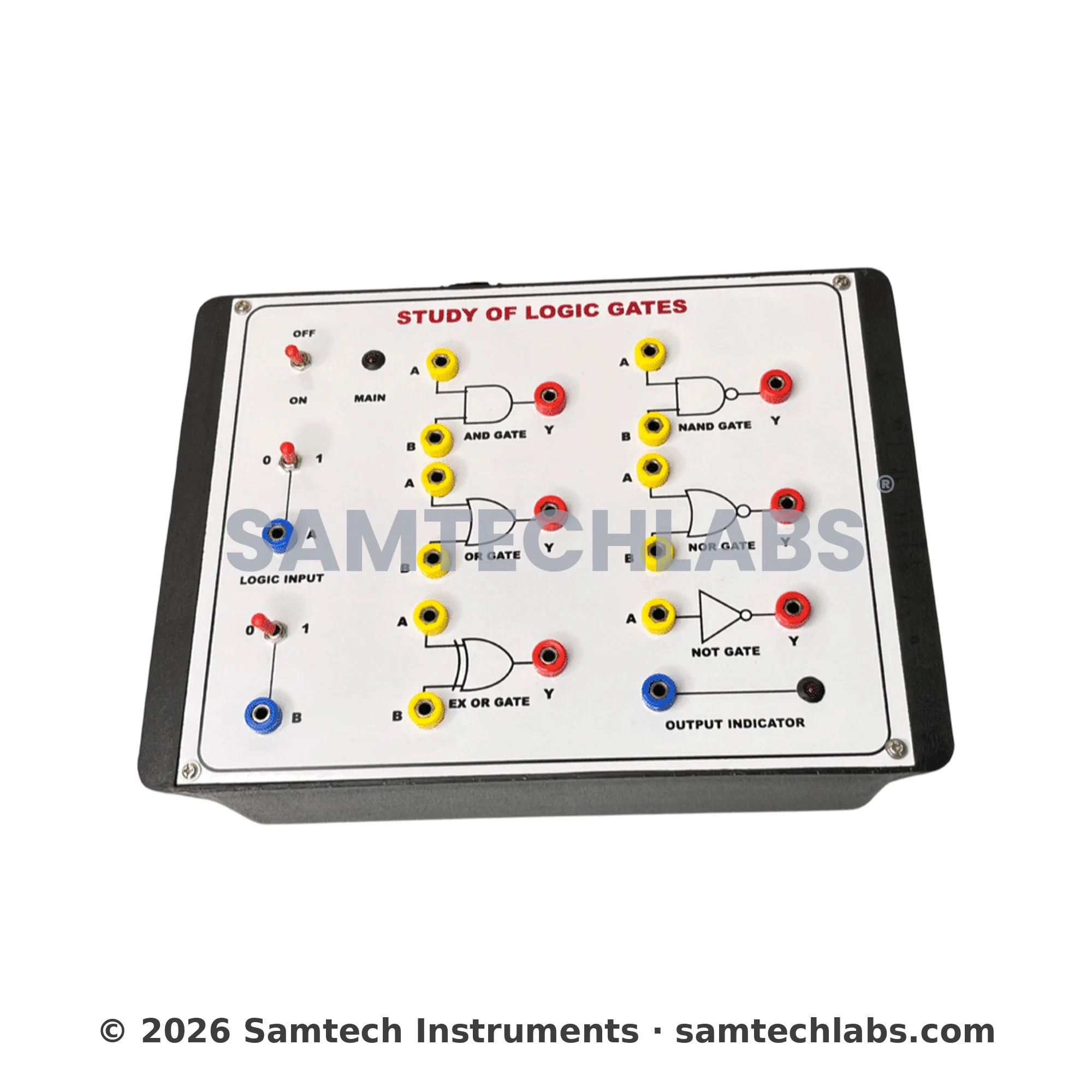

6 in 1 Logic Gate Apparatus

  • Versatile 6-in-1 Logic Gate Apparatus by JAYSEE
  • Features AND, OR, NOT, NAND, XOR, and NOR gates
  • Convenient switch for easy switching between gates
  • Clear indications for each gate on the front panel
  • Manual & Patch Cord Included
SKU: SAM-401

Original price was: ₹2,000.Current price is: ₹850. (Exc. GST)

11 People watching this product now!
  • Pick up from the Samtech Store in Ambala

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

  • Warranty 1 year
  • Free 7-Day Replacement

Description

For several years, we have been a respected supplier of the 6-in-1 Logic Gate Apparatus to our extensive customer base. It is meticulously designed using top-quality raw materials and the latest machinery at our facility, in accordance with industry norms and standards. The 6-in-1 Logic Gate Apparatus undergoes rigorous quality testing to ensure that its quality is never compromised at any stage.

Objective :

2 Input IC Basic Logic Gates Apparatus has been designed to verify the truth tables of the following Gates :

  • AND Gate (IC 7408)
  • OR Gate (IC 7432)
  • NOT Gate (IC 7404)
  • EX-OR Gate (IC 7486)
  • NAND Gate (IC 7400)
  • NOR Gate (IC 7402)
  • EX-NOR Gate (IC 74266)

Technical Specifications :

Inbuilt Fixed / Variable DC Regulated Power Supply

Output Voltages: 5VDC

ICs & Components Provided

IC

  • 7408
  • 7432
  • 7404
  • 7486
  • 7400
  • 7402

Standard Accessories :

Power chord & Instruction manual

Specification

Overview

Brand

JAYSEE
