Operational Amplifier Trainer

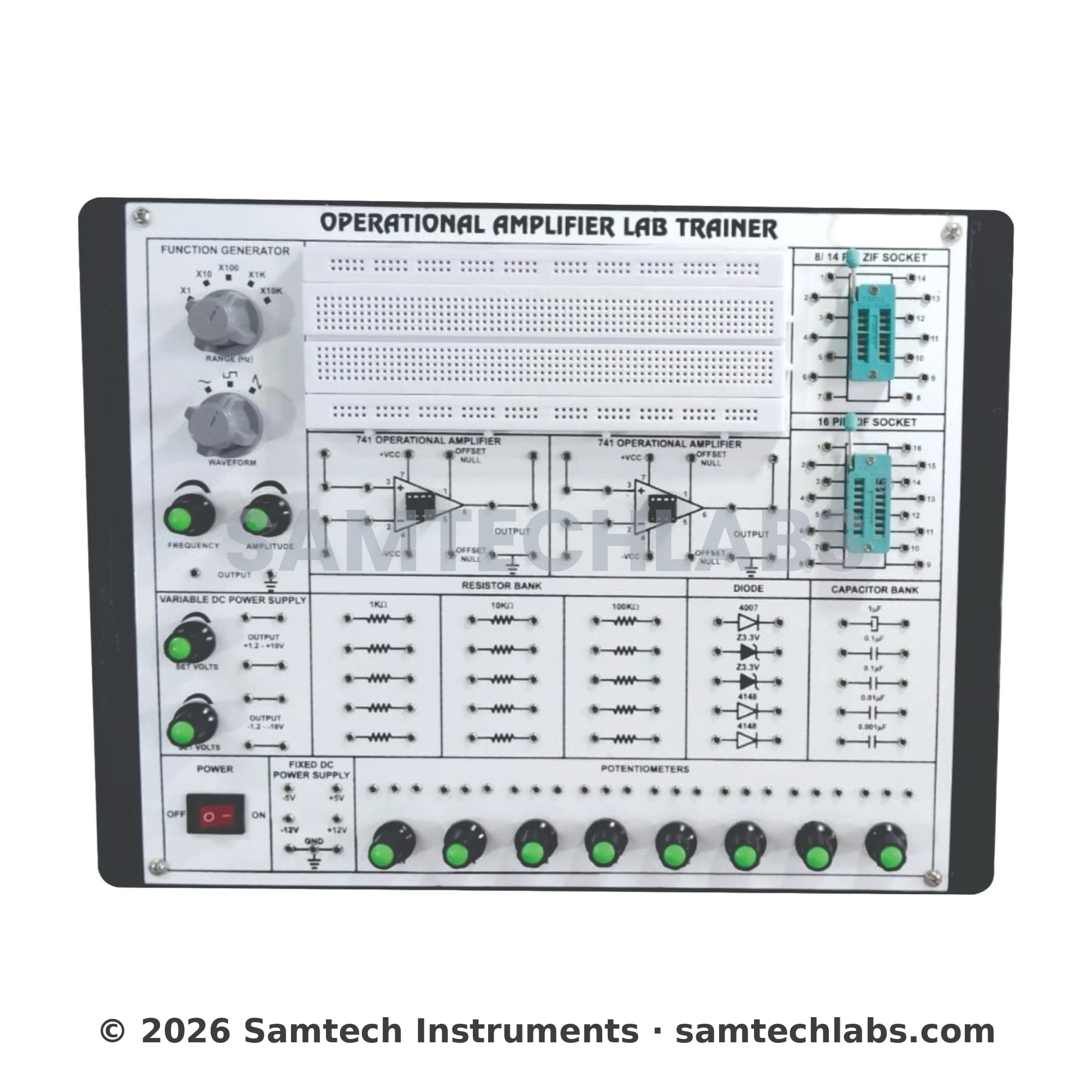

The Operational Amplifier Trainer includes:

  • Fixed and Variable DC Power Supply
  • On-board Function Generator
  • Zif Sockets and IC 741
  • Resistors, Capacitors,Diodes and On-board Potentiometers

Original price was: ₹12,000.Current price is: ₹7,250. (Exc. GST)

19 People watching this product now!
  • Pick up from the Samtech Store in Ambala

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

  • Warranty 1 year
  • Free 7-Day Replacement

Description

OBJECTIVE : Study and Construction of Various Analog Electronics Lab Experiments using an Operational Amplifier Trainer.

TECHNICAL SPECIFICATIONS :
* Fixed DC Power Supply IC Regulated ±5V DC & ±12V/ 250mA.
* Nos. of Variable DC Power Supply IC Regulated 1.2 -10V DC/ 250mA.
* Operated On Mains Power 230V, 50Hz ±10%
* On board Function Generator 100KHz with Sine, Square & Triangular Wave
* On Board Two nos. of Zif Sockets (14 Pin &16 Pins).
* Two Nos. of IC 741 with All pins terminated on 2mm Banana Sockets
* On Board Resistors Bank (1K, 10K & 100K – 5 Each), Capacitor Bank & Diode (4007, 4148 & Zener 3.3V)
* On Board Potentiometer (1K, 10K, 100K & 1M – 2 Nos. Each)

SALIENT FEATURES:
* Designed the Instruments more than 12 Experiments
* Front panel built with high-class insulated printed circuit board sheet with well-printed circuits and symbols.
* Instruction Manual.
* Connections are brought out through 2mm Brass Sockets.
* Patch Cords 2mm.
* The trainer is housed in ABS Plastic cabinet.Size of the trainer set 320m x 250mm.

STANDARD ACCESSORIES :
* 2mm Patchcords.
* User Manual.

LIST OF EXPERIMENTS :
* Inverting Amplifier
* Non – inverting Amplifier
* Buffer
* Comparator
* Adder
* Subtractor
* Square Wave Generator
* Differentiator and its working as High Pass Filter
* Integrator and its working as Low Pass Filter
* Logarithmic Amplifier
* Voltage Controlled Current Source
* Current Controlled Voltage Source & many more

OPTIONAL ACCESSORIES:
* Digital Multimeter
* C.R.O.
