Heat Conductivity Apparatus

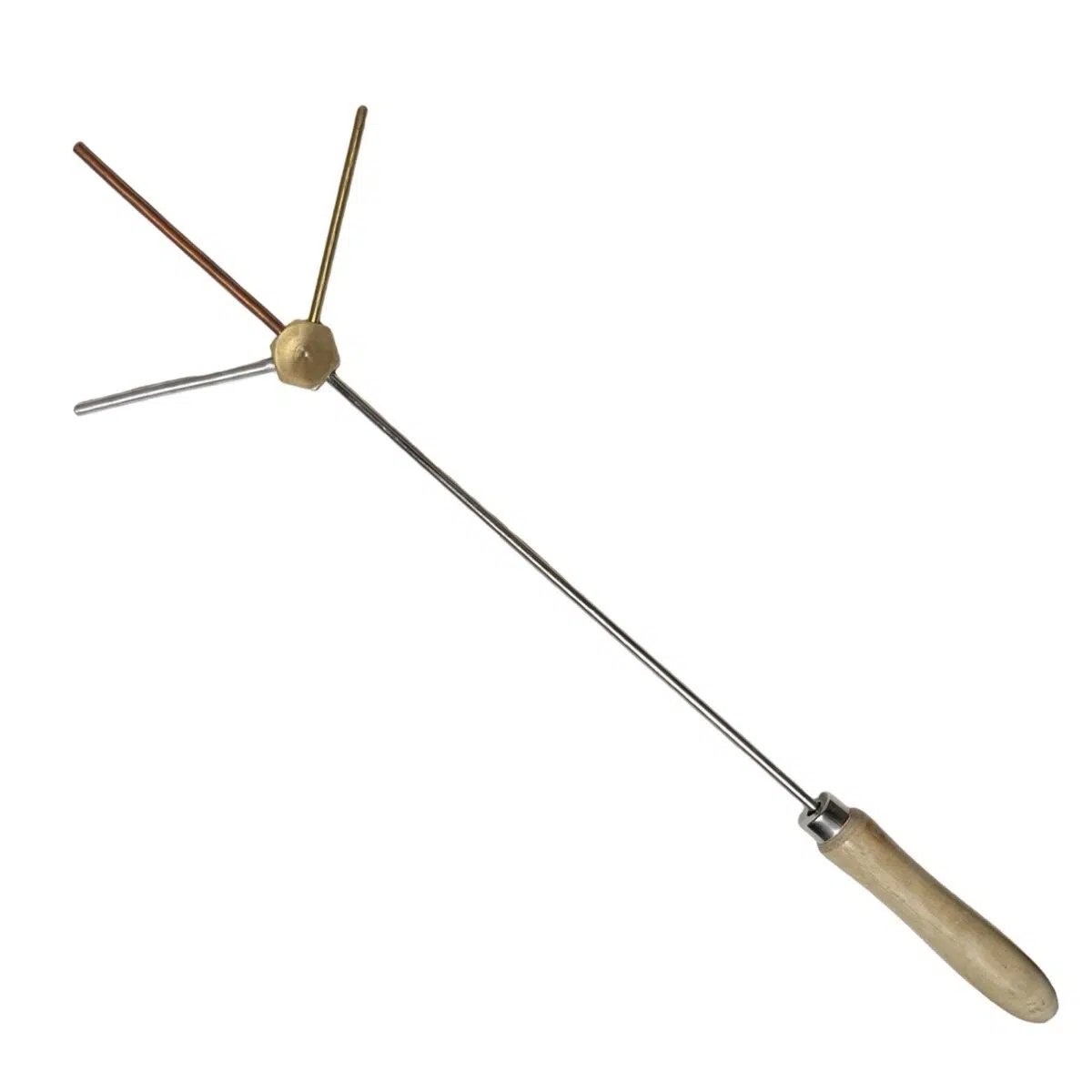

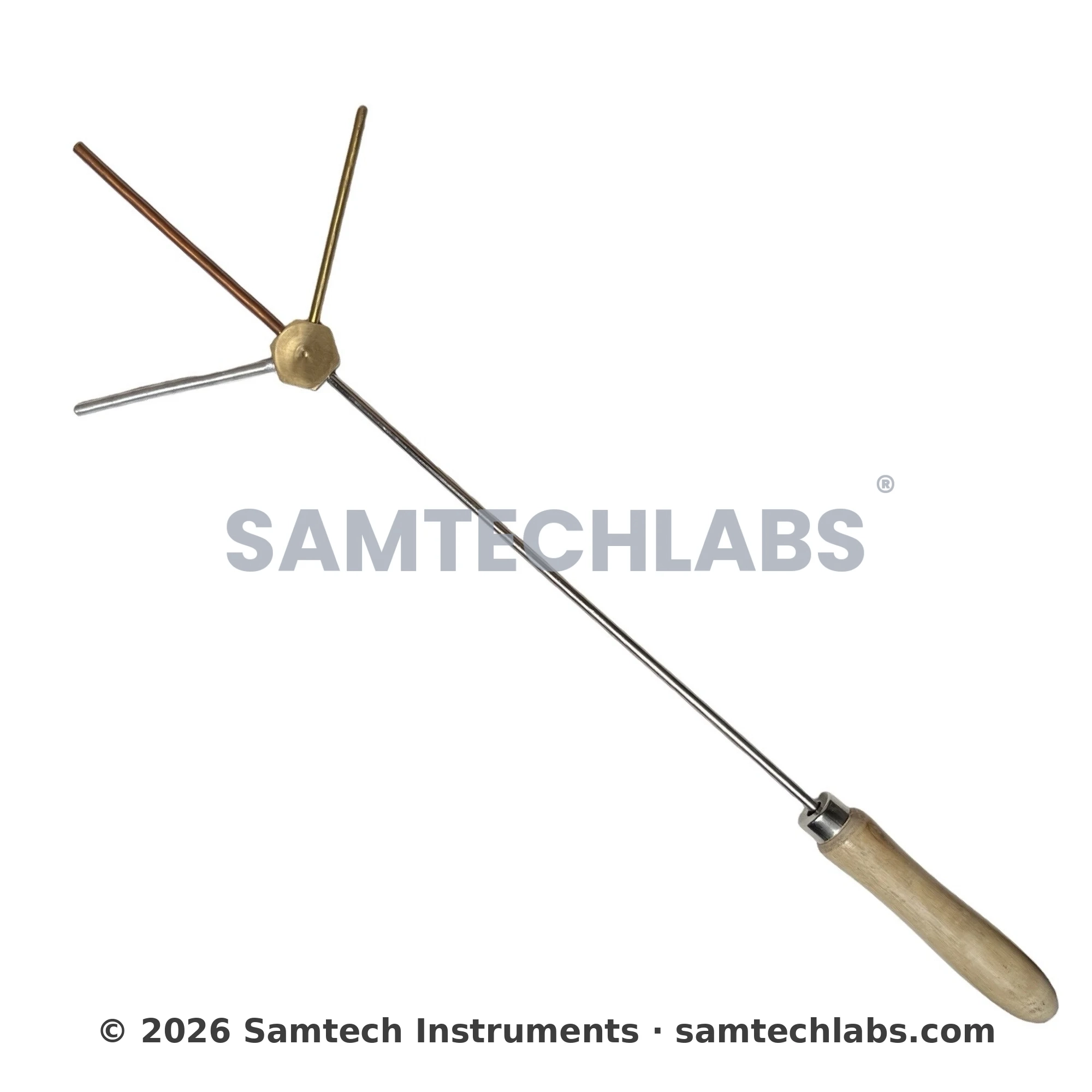

The Heat conductivity apparatus is designed to visually demonstrate the differences in heat conduction between various metals. It consists of three metal rods—copper, brass, and iron—arranged in a circular formation within a metal ring. This design not only highlights the properties of each material but also allows for simultaneous heating. By using a spirit lamp, heat is applied uniformly to all three rods, providing a clear comparison of how quickly or slowly heat travels through each type of metal. The wooden handle ensures easy manipulation during demonstrations.

As the experiment begins, the heated ends of the rods become noticeably warm, and observers can feel the temperature changes along each rod. Typically, copper, known for its excellent thermal conductivity, will warm up the fastest, followed by brass, and finally iron, which has relatively low conductivity.

This gradual increase in temperature along the rods emphasises how different materials respond to heat differently. The experiment effectively illustrates the concept of thermal conductivity in a tangible way.

An extra-long copper rod is included in the Heat conductivity apparatus to further enhance the demonstration. This rod is particularly useful in showcasing the time it takes for heat to transfer from the hot end to the cold end. By measuring the temperature change along the length of this rod as heat is applied, participants can observe that even in a highly conductive material like copper, heat transfer is not instantaneous.

This aspect of the experiment reinforces the understanding of thermal conductivity and the principles of heat transfer in solid materials. It consists of three metal rods made from copper, brass, and iron, all arranged in a metal ring. This setup is mounted on a wooden handle and includes wax and a spirit lamp to facilitate demonstrations.

The Heat conductivity apparatus design allows each rod to be heated simultaneously, illustrating that the rate of heat conductivity varies among different materials. Additionally, an extra-long copper rod is included to demonstrate that heat takes time to transfer from the hot end to the cold end.
