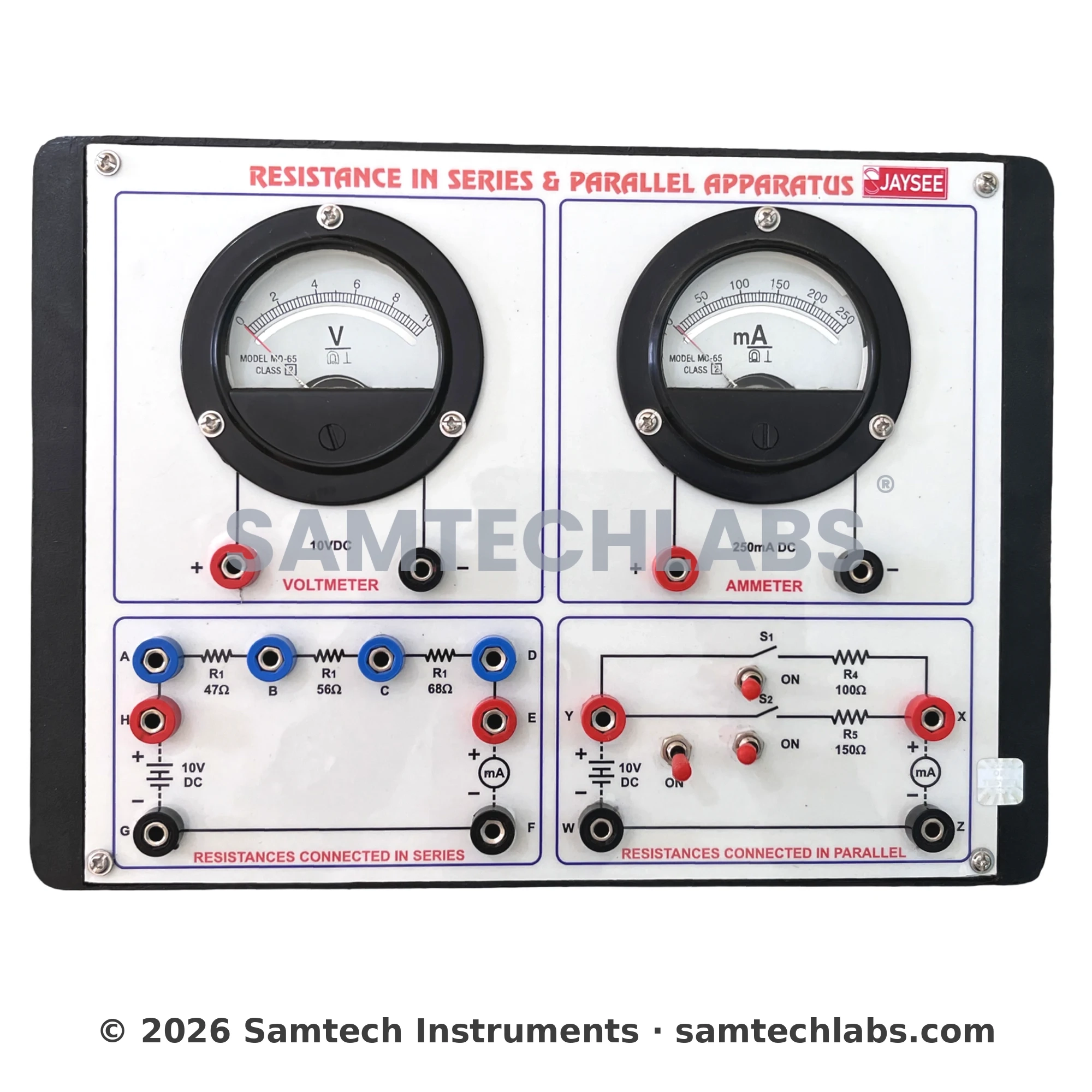

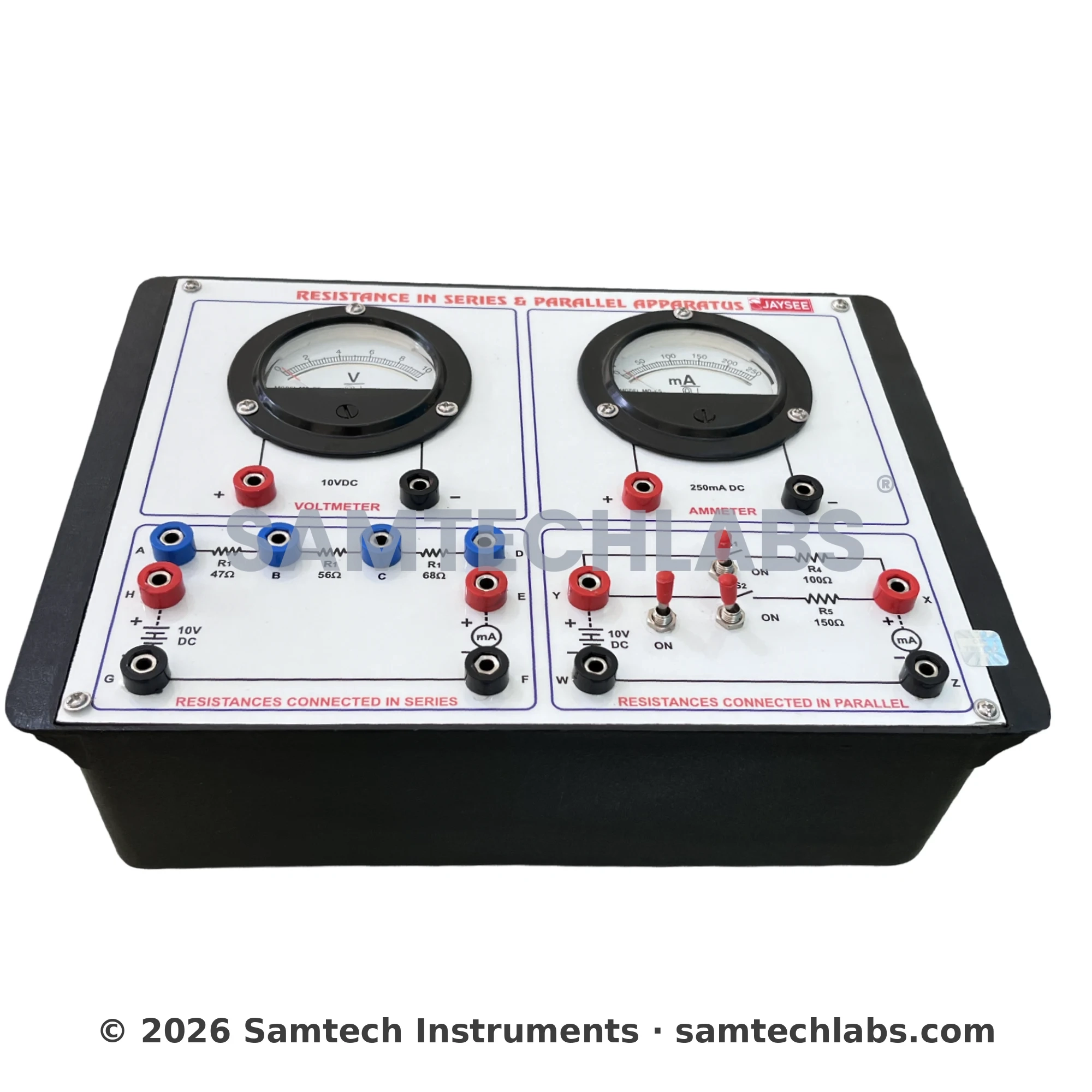

Resistance in Series and Parallel

When we talk about resistance in electronic circuits, it’s important to understand the concepts of series and parallel connections. In a series circuit, the components are connected end-to-end, forming a single path for the current to flow. When resistors are connected in series, their individual resistances add up to form the total resistance of the circuit. This means that in a series circuit, the total resistance is always greater than the resistance of any single resistor in the circuit.

On the other hand, in a parallel circuit, the components are connected across each other, providing multiple paths for the current to flow. When resistors are connected in parallel, the total resistance’s reciprocal is equal to the sum of the individual resistances’ reciprocals. In simpler terms, the total resistance is always less than the resistance of the smallest resistor in the circuit.

Understanding the differences between series and parallel connections is crucial in designing and analyzing electronic circuits. Series circuits are often used when a consistent amount of current is required to flow through all components, while parallel circuits are used when components need to share the same voltage level. Both configurations have their specific applications and play important roles in the functioning of various electronic devices and systems.
