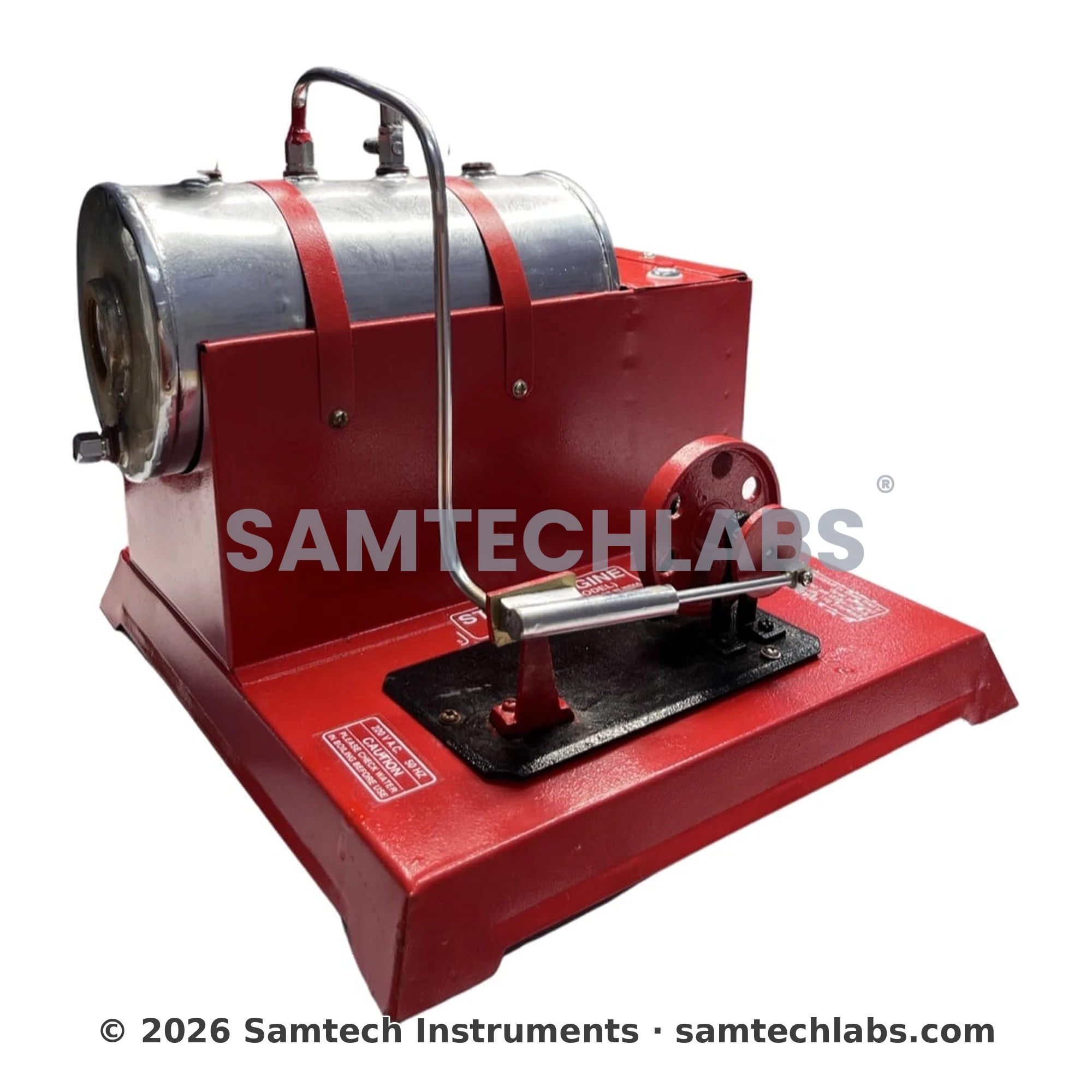

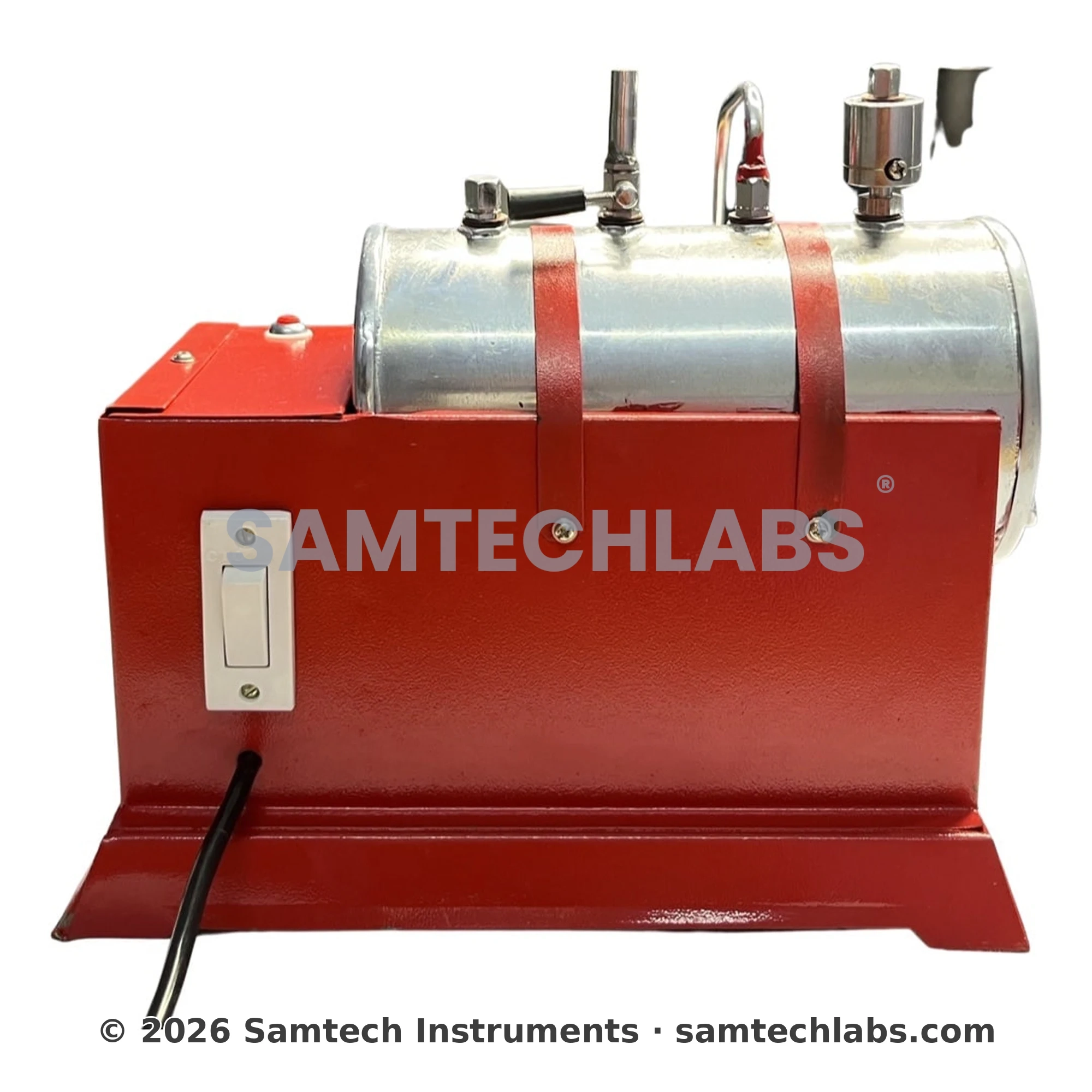

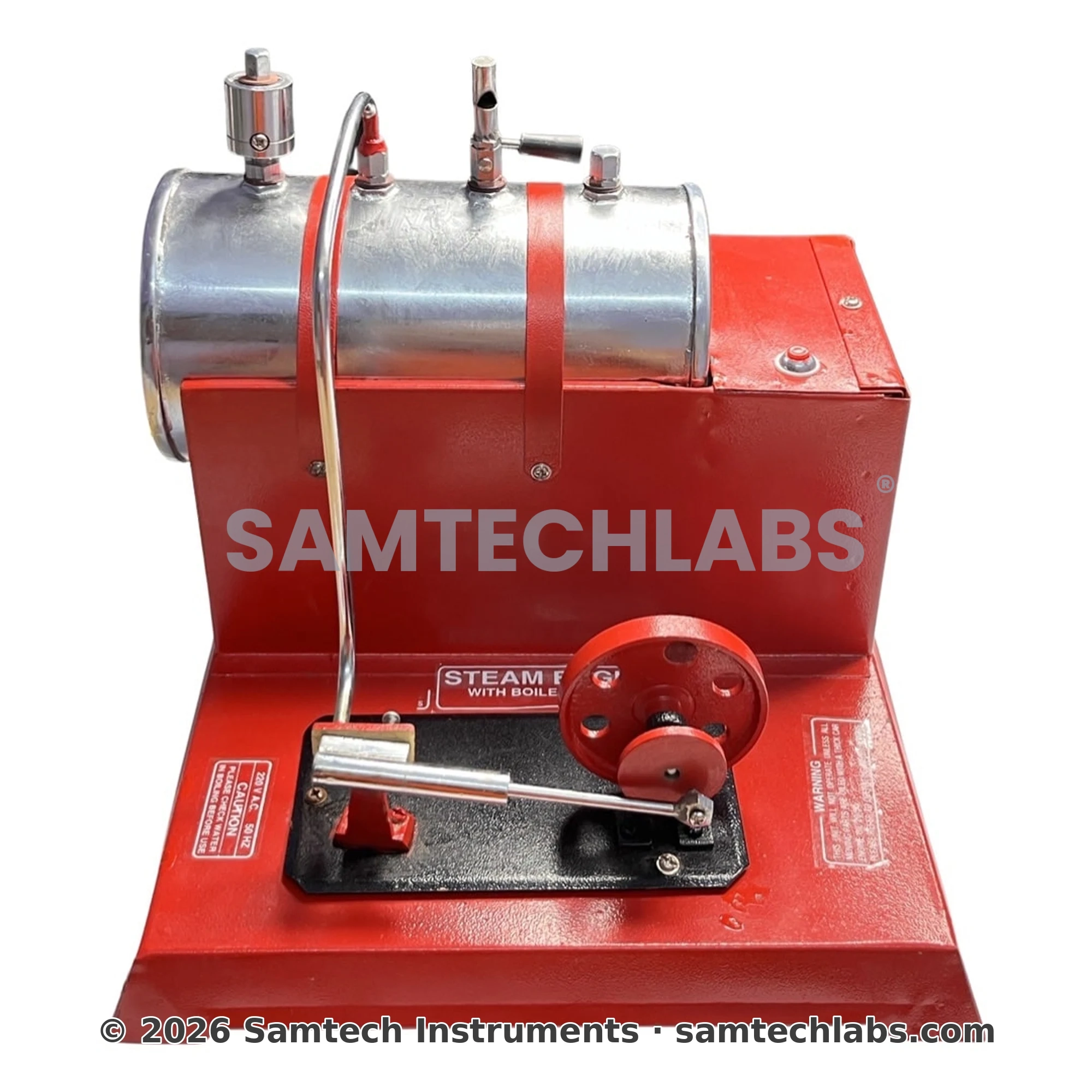

Steam Engine Model with Boiler

The Steam Engine model with boiler is a captivating working model that effectively demonstrates the operation of a commercial steam engine. It offers an engaging learning experience for students and enthusiasts alike. Here are the key features and details:

• The model includes an extra-large horizontal boiler equipped with a whistle, safety valve, and steam gauge.
• The brass boiler is securely mounted on a steel housing with a chimney, enhancing its durability and stability.
• An inspection window is incorporated to provide a clear view of the water level inside the boiler.
• The model is supported by a sturdy metal base, ensuring steady operation during demonstrations.
• Two varieties of the steam engine model are available:
  1. The first operates on 220V AC, 50 Hz power supply.
  2. The second variety allows the water to be heated using dry fuel, providing an alternative heating method.
• The model effectively showcases the release of exhaust steam into the air, enabling students to understand important aspects of steam locomotives:
  1. The constant water loss through steam exhaust highlights the need for station water replenishment.
  2. The distinctive “choo-choo” sound originates from the forceful release of steam under pressure.

The steam engine model with a boiler is an exceptional educational tool that offers a hands-on understanding of steam engine principles and enhances knowledge of steam power and its applications.
