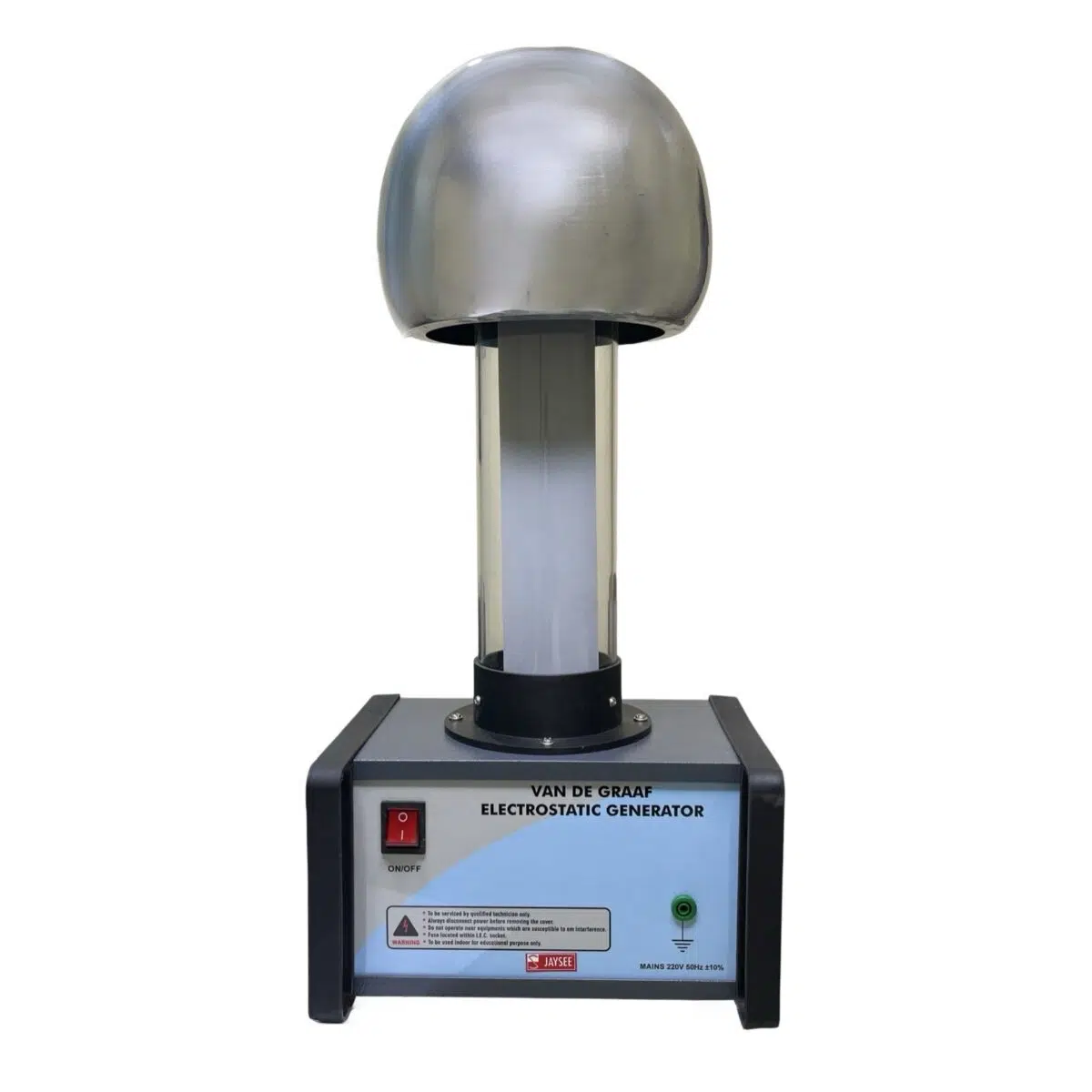

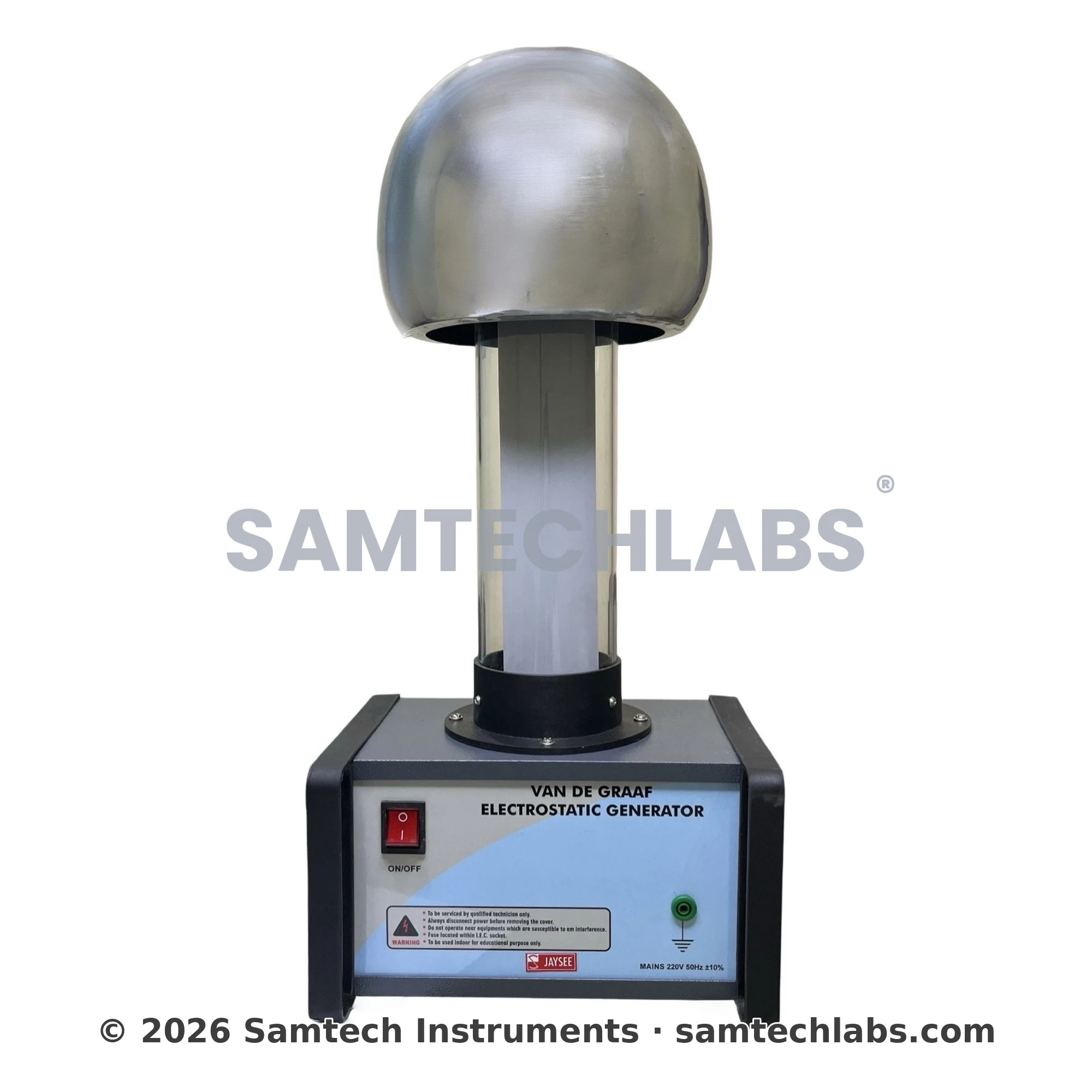

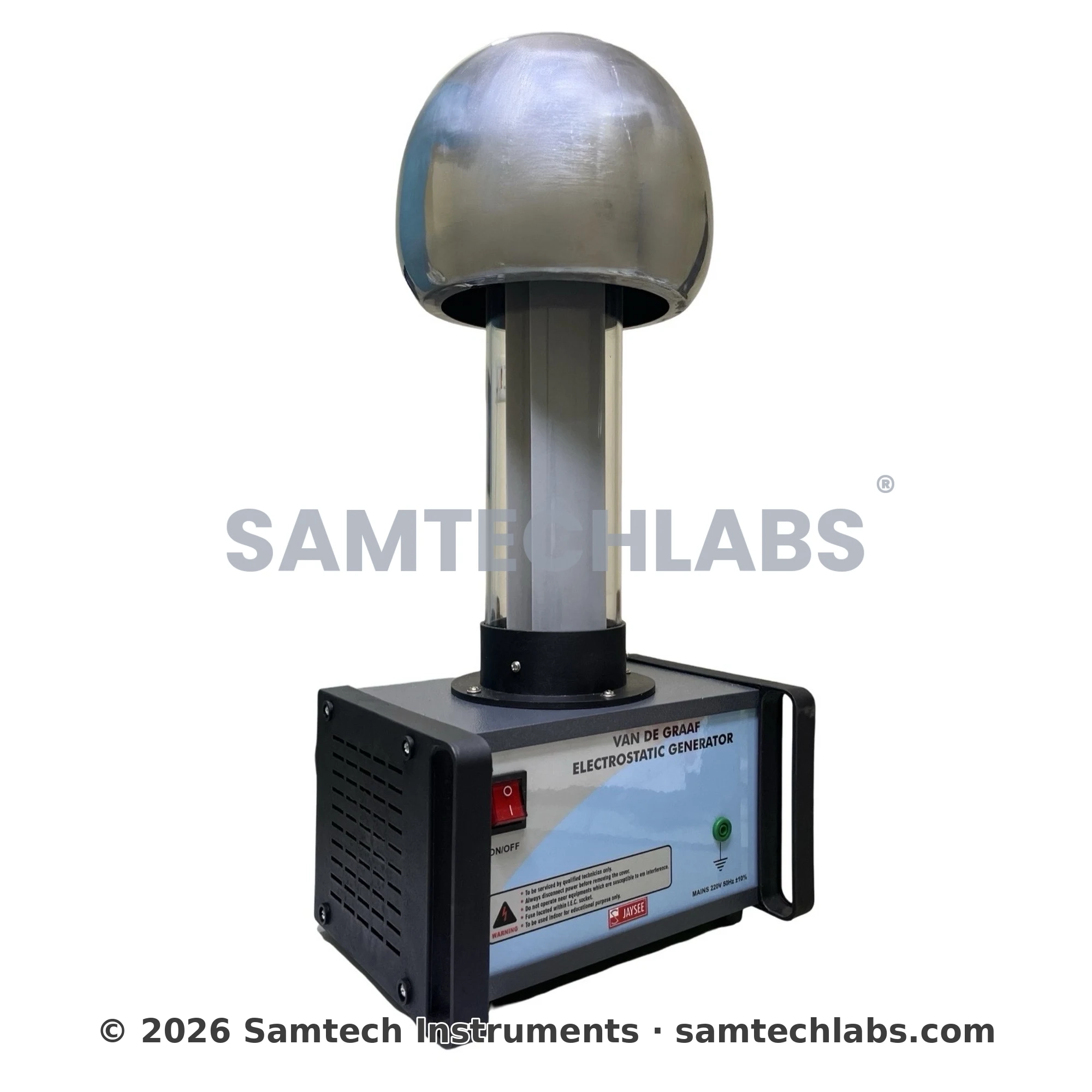

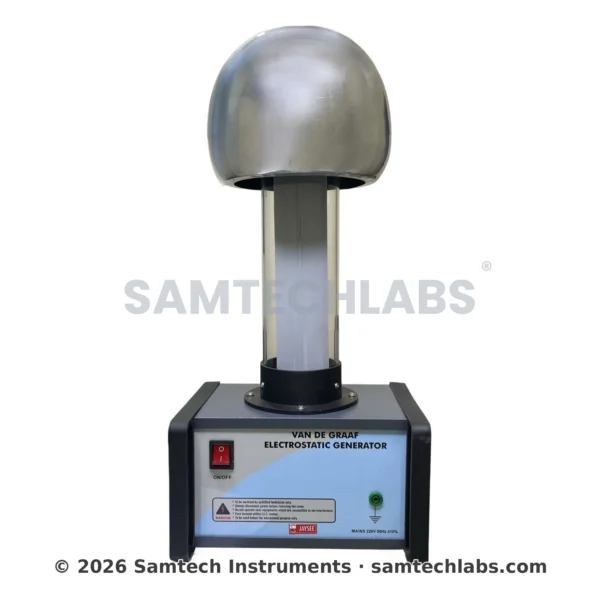

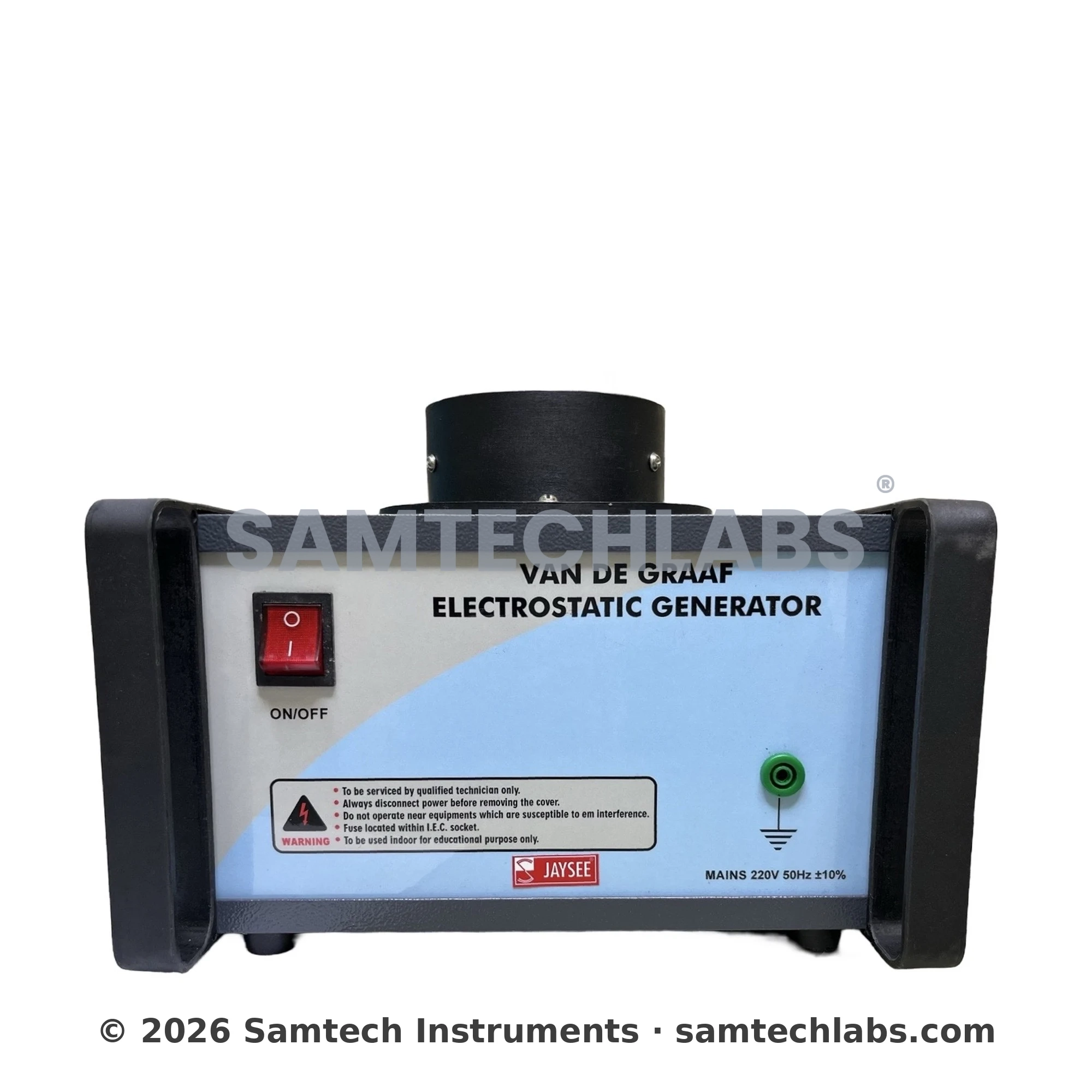

Van de Graaff Generator Electrical

A Van de Graaff generator is a type of electrostatic machine used to generate very high voltages, often in the range of hundreds of thousands to millions of volts. It works on the principle of electrostatic induction, where electric charge is transferred to a metal sphere, creating a strong electric field. Here’s how it works:

1. Main Components:
   • A moving belt (usually made of rubber or a similar insulating material) moves between two rollers: one at the bottom and one at the top.
   • A brush is located at the top roller, where it collects electric charge.
   • The electric charge is transferred to a large metal sphere at the top of the generator, which accumulates the charge.
2. How It Works:
   • As the belt moves, it rubs against a comb or brush near the bottom, which collects electrons from the belt. This negative charge is then carried upwards by the moving belt.
   • At the top, the brush contacts a metal dome or sphere, transferring the charge onto the dome.
   • The metal sphere accumulates the electric charge, leading to a build-up of a high voltage.
3. Results:
   • The machine can generate a very high voltage between the metal sphere and the ground.
   • This voltage can be used in various scientific experiments, including studying the effects of static electricity, electric fields, and in particle accelerators.
4. Applications:
   • Van de Graaff generators are used in physics demonstrations, where the high voltage can cause sparks or attract small objects like paper or hair.
   • In medical science, they have been used historically in particle accelerators to accelerate protons for radiation therapy.

The Van de Graaff generator is one of the most iconic devices for demonstrating electrostatic principles, showing how charges can be accumulated, stored, and discharged in spectacular ways.
