Demountable Transformer Model

Demountable Transformer Model | Manufactured by Samtech Instruments

The Demountable Transformer Model is a hands-on educational apparatus designed to help students clearly understand how high voltage (220V AC) is stepped down to safer, usable voltages like 12V AC and 6V AC. With its open and removable structure, it allows learners to visually explore the internal working of a transformer.

What Is the Demountable Transformer Model?

This model is based on the principle of electromagnetic induction, where voltage transformation depends on the number of turns in primary and secondary coils.

It demonstrates:

• Primary Coil: 2400 turns → 220V AC input
• Secondary Coil 1: 130 turns → 12V AC output
• Secondary Coil 2: 65 turns → 6V AC output

The demountable design allows students to see and understand the construction and coil arrangement in detail.

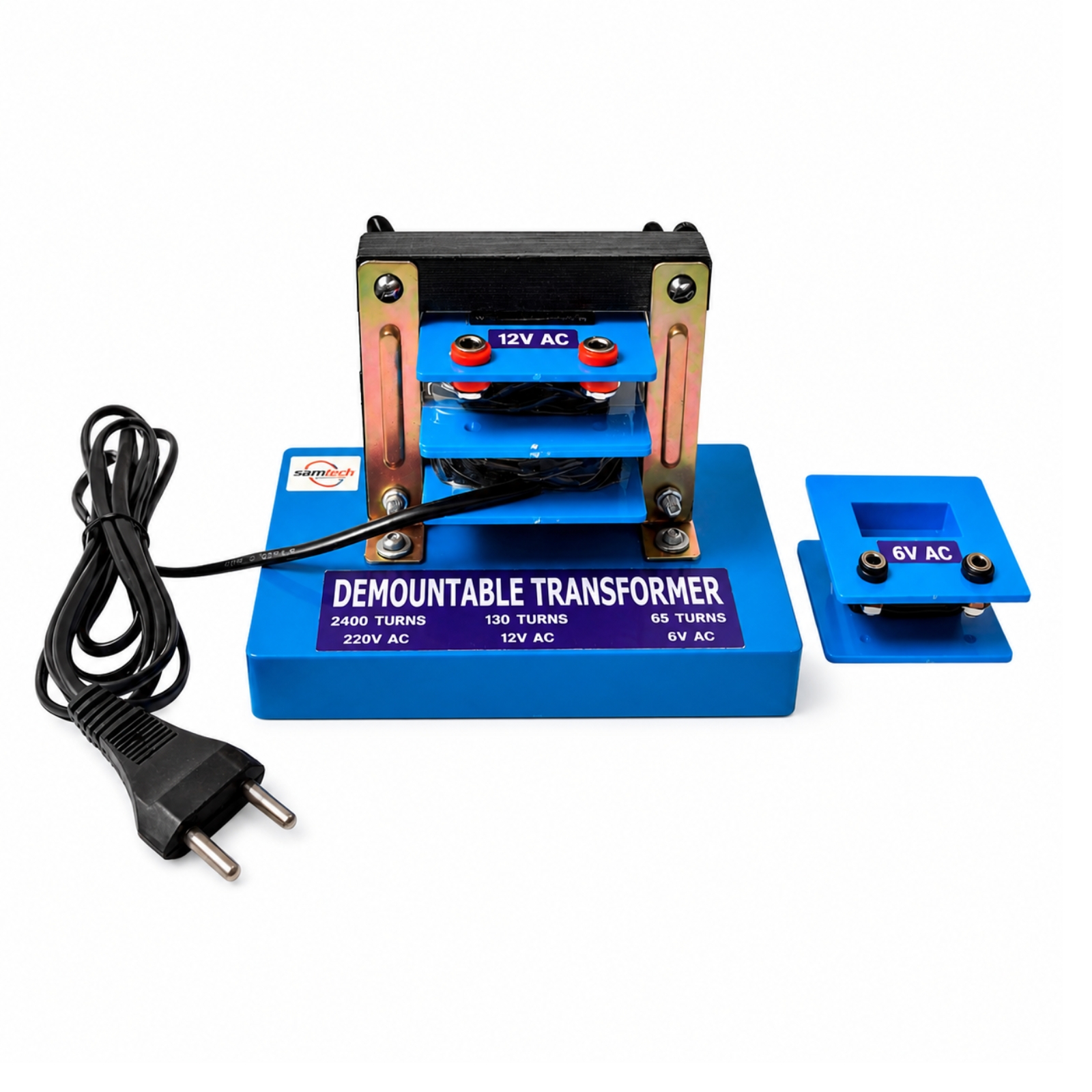

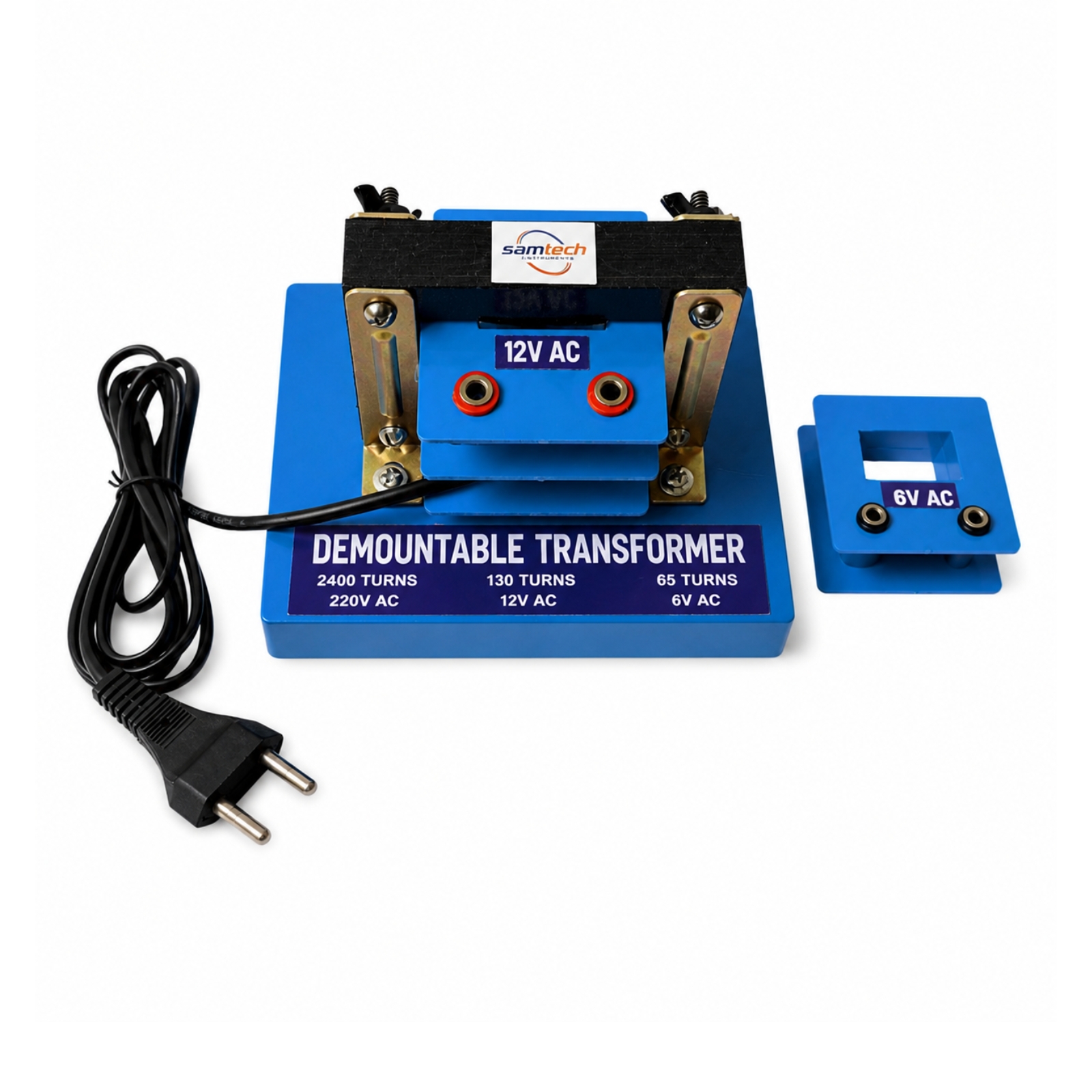

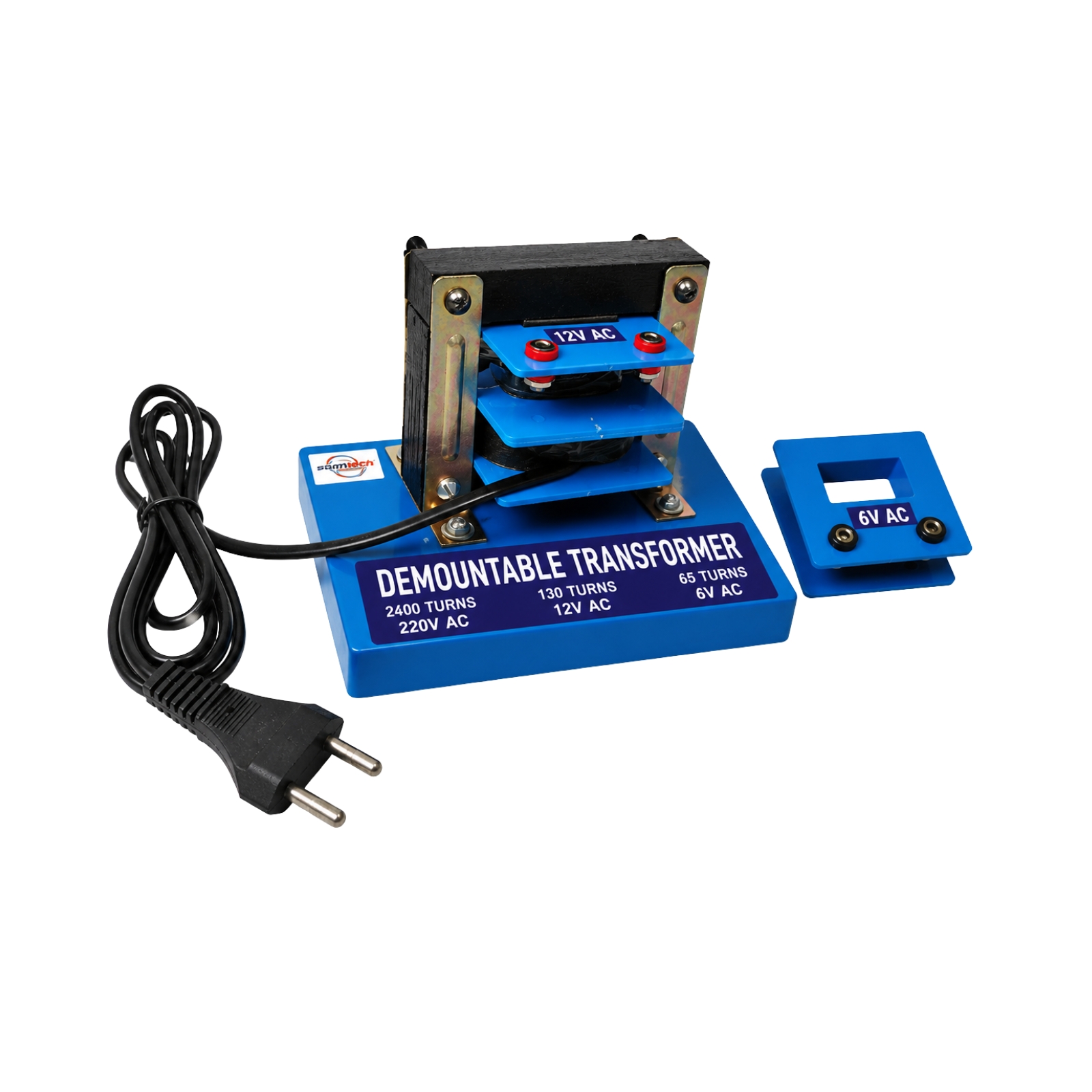

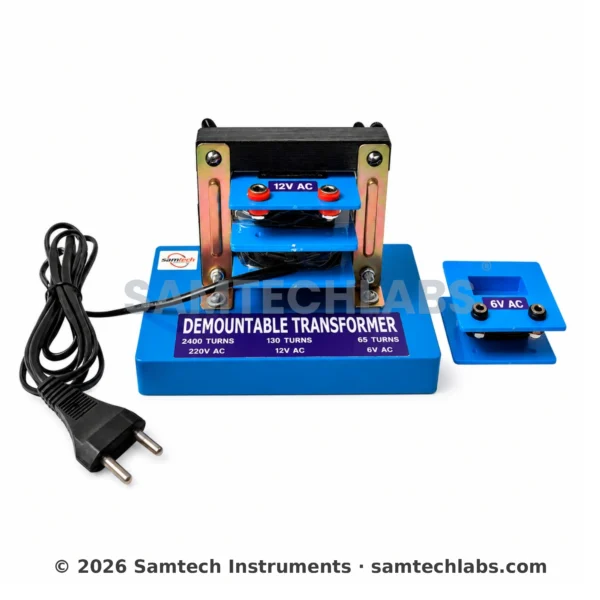

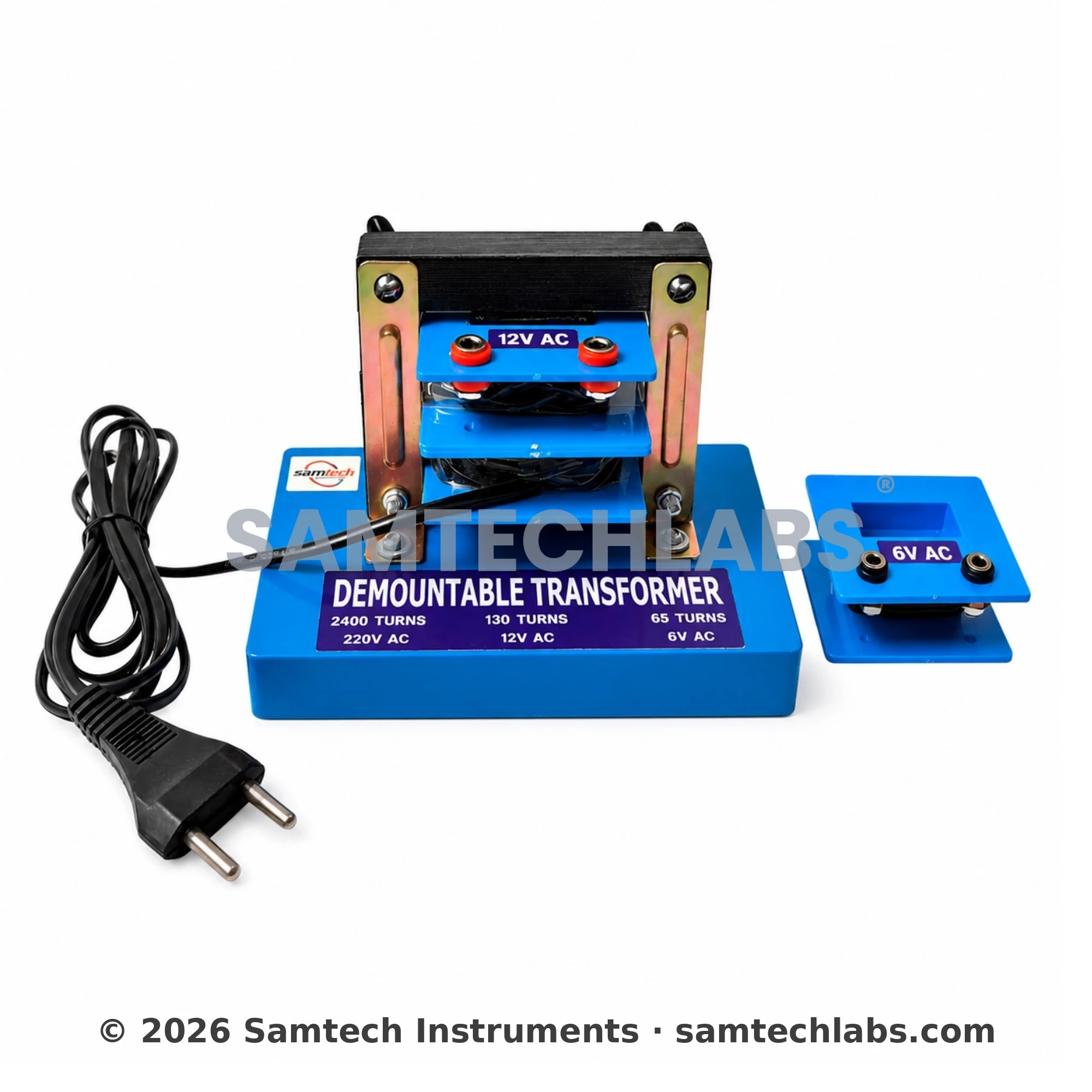

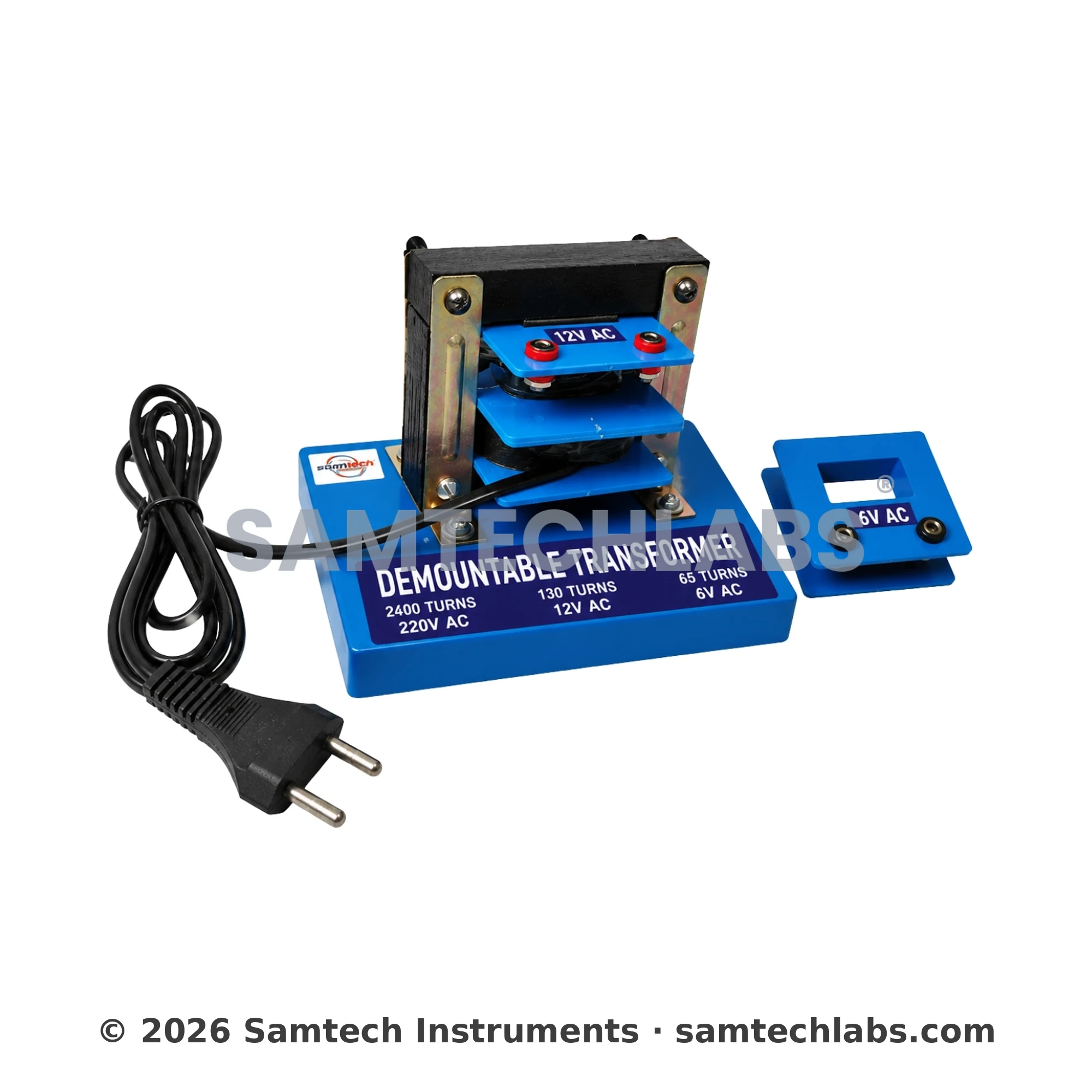

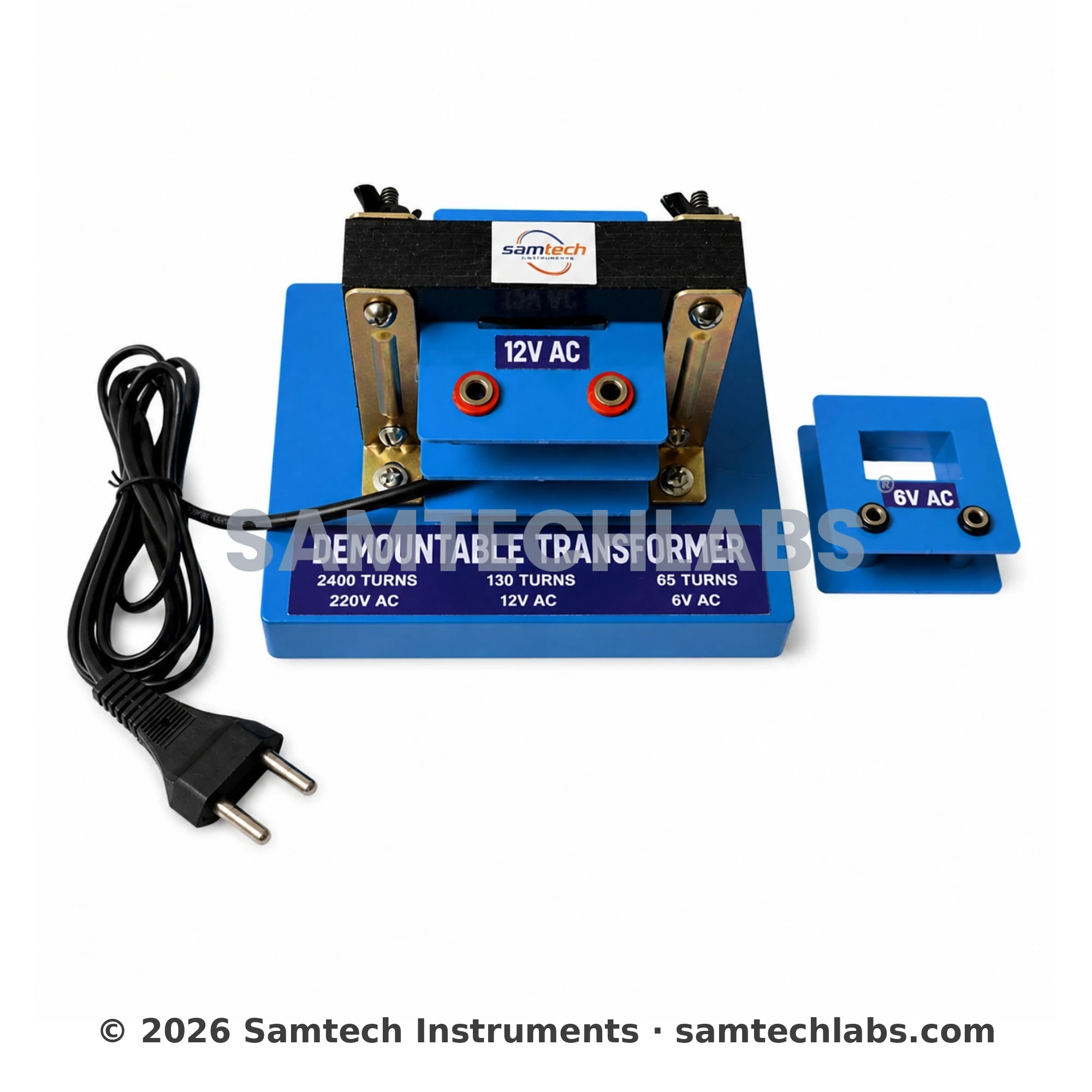

Kit Includes

• Demountable transformer unit with visible coil assembly
• Clearly labeled voltage output terminals (12V AC & 6V AC)
• Separate 6V AC module
• Mounted base with printed specifications
• Power cord with plug
• Strong metal support structure

Why Choose This Model?

• ✔️ Demonstrates real transformer working
• ✔️ Demountable structure for better concept clarity
• ✔️ Clearly marked inputs and outputs
• ✔️ Safe and suitable for classroom use
• ✔️ Durable and long-lasting build

Educational Applications

1. Understanding transformer construction
2. Learning step-down voltage principle
3. Studying turns ratio and voltage relation
4. Visualizing electromagnetic induction
5. Performing classroom demonstrations and experiments

Key Features

⚡ Converts 220V AC into 12V & 6V AC
🔍 Open and demountable design for internal view
🧲 Based on electromagnetic induction principle
🧪 Ideal for practical physics learning
🔌 Ready-to-use with power cord
🛠️ Strong and stable construction

Ideal For

FAQ

Q1: What is special about the demountable design?
A: It allows students to remove and observe internal components, helping them understand coil structure and working more clearly.

Q2: Who manufactures this Demountable Transformer Model?
A: This Demountable Transformer Model is proudly manufactured by Samtech Instruments, a trusted Indian educational equipment manufacturer based in Ambala Cantt, serving schools and STEM institutions since 2002.

Q3: What voltages does it provide?
A: It converts 220V AC into 12V AC and 6V AC using different coil turns.

Manufacturer Advantages

🏭 Trusted since 2002
📦 Reliable product quality
🔬 Designed for real educational use
🇮🇳 Made in India
💡 Focused on STEM learning solutions

Conclusion

The Demountable Transformer Model is an effective teaching tool that transforms complex electrical concepts into easy-to-understand, visual learning. It is ideal for making classroom demonstrations more interactive and impactful.
