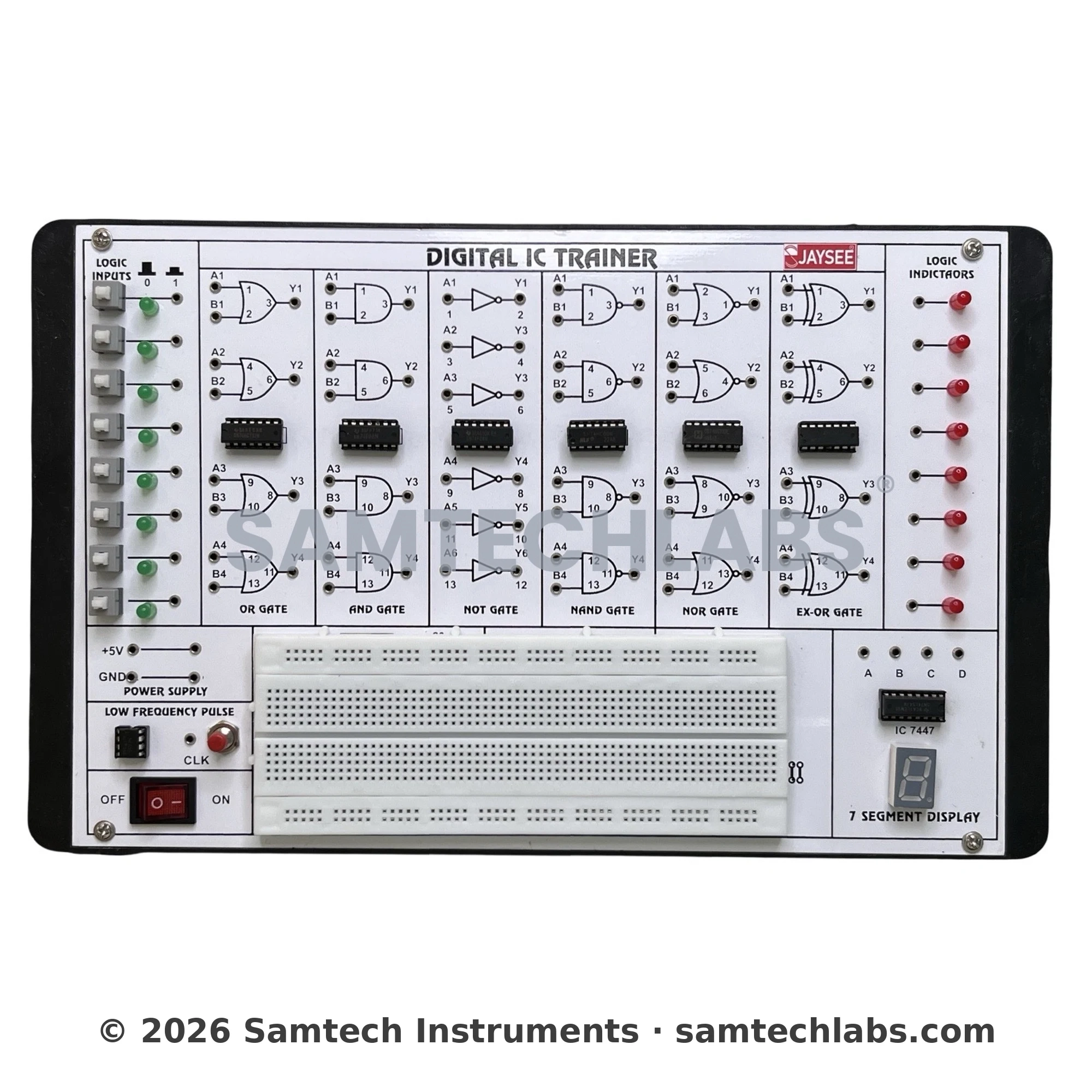

DigitaL IC Trainer
- Digital IC Trainer with Digital Voltmeter has been designed to study Digital IC Circuits.
- The trainer is entirely self-contained, versatile, sophisticated and economical.
- The board is self-contained and requires no other apparatus.
Original price was: ₹5,000.₹3,000Current price is: ₹3,000. (Exc. GST)
15 People watching this product now!
- Warranty 1 year
- Free 7-Day Replacement
Description
OBJECTIVE: Study and Construction of Various Digital Electronics Lab Experiments using Digital IC Trainer
TECHNICAL SPECIFICATIONS :
* Fixed DC Power Supply IC Regulated +5V DC/, 250mA.
* Operated On Mains Power 230v, 50hz +10%
* On Board Logic Gates are
Or Gate : 4 Nos.
And Gate : 4 Nos.
Not Gate : 6 Nos.
Nand Gate : 4 Nos.
Nor Gate : 4 Nos.
Ex-Or Gate : 4 Nos.
* Bread Board : 1 No.
* 8 Bit Logic Inputs & Outputs
* Logic Low Frequency Mono Pulsar.
* 7-Segment Decoder
SALIENT FEATURES:
* Front Panel Built With High-Class Insulated Printed Circuit Board Sheet With Well Printed Circuits And
Symbols.
* Instruction Manual.
* Connections are brought out through 2mm Brass Sockets.
* Patch Cords 2mm.
* The trainer is housed in ABS Plastic cabinet.*
* Size of the trainer set 12”x8”
STANDARD ACCESSORIES :
* User Manual
* Patchcords
