Energy Band Gap Apparatus

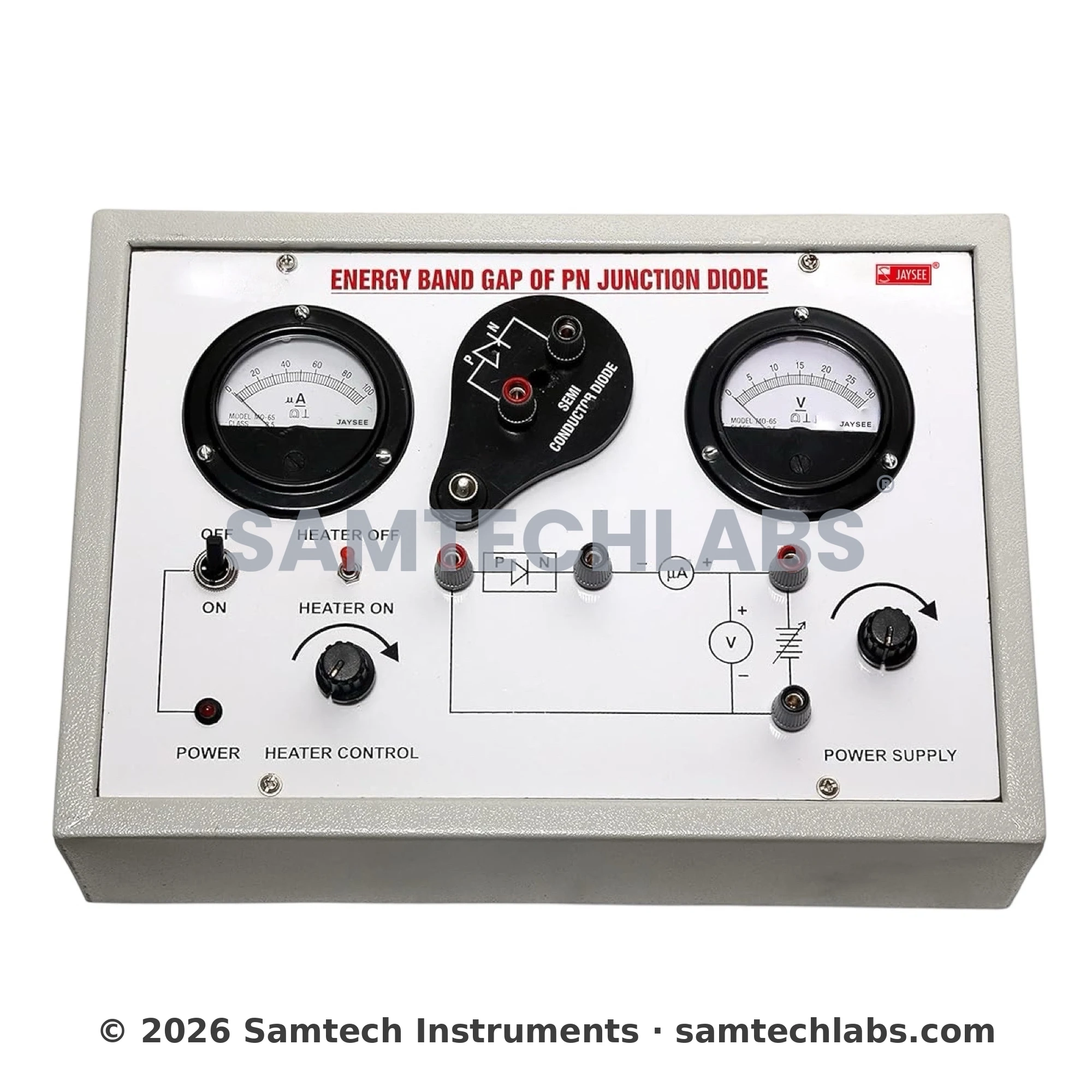

Our JAYSEE Energy Band gap apparatus is used to plot characteristics between reverse saturation current and voltage to find out the approximate value of the energy band gap in a PN junction diode.

Original price was: ₹5,000.Current price is: ₹3,750. (Exc. GST)

Compare

Add to wishlist

20 People watching this product now!

Pick up from the Samtech Store in Ambala

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

Warranty 1 year

More details

Free 7-Day Replacement

More details

Description

OBJECTIVE : To plot characteristics between Reverse saturation current & voltage to find out the approximate value of Energy Band Gap in PN Junction Diode.

TECHNICAL SPECIFICATIONS :
* Inbuilt Variable DC Regulated Power Supply of 0-20V DC.
* Temperature Controlled Electric oven to heat up the Diode.
* Mercury thermometer is mounted on front panel to measure the temperature of oven
* Volt Meter Range of 20V DC for measure the Voltages.
* Current Meter Range of 500mA for measure the Current.
* PN Junction Diode placed inside the oven & connection brought out at the sockets.

SALIENT FEATURES :
* Front Panel built with high class Bakelite sheet with well printed circuits diagram and symbol.
* Connections are brought out through 4mm Colored Sockets.
* The Trainer is housed in ABS Plastic Cabinet.
* Size of the Trainer set (310mm x 200mm).

STANDARD ACCESSORIES :
* Instruction manual.
* Patchcords 4mm.

NOTE : This Model is also provided with Square Meter & 3½ Digit Digital Panel Meter (DPM).
