FET Characteristics Apparatus

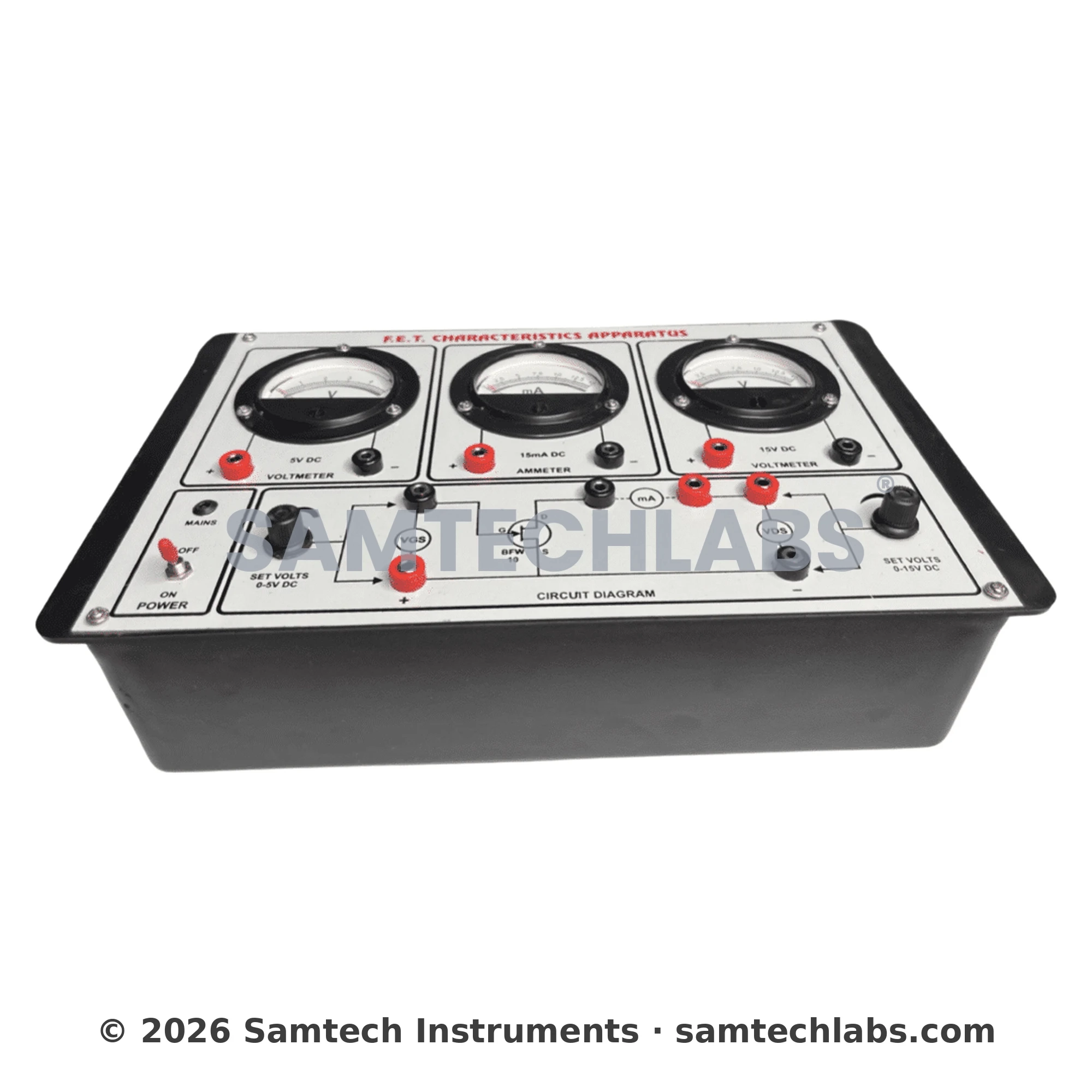

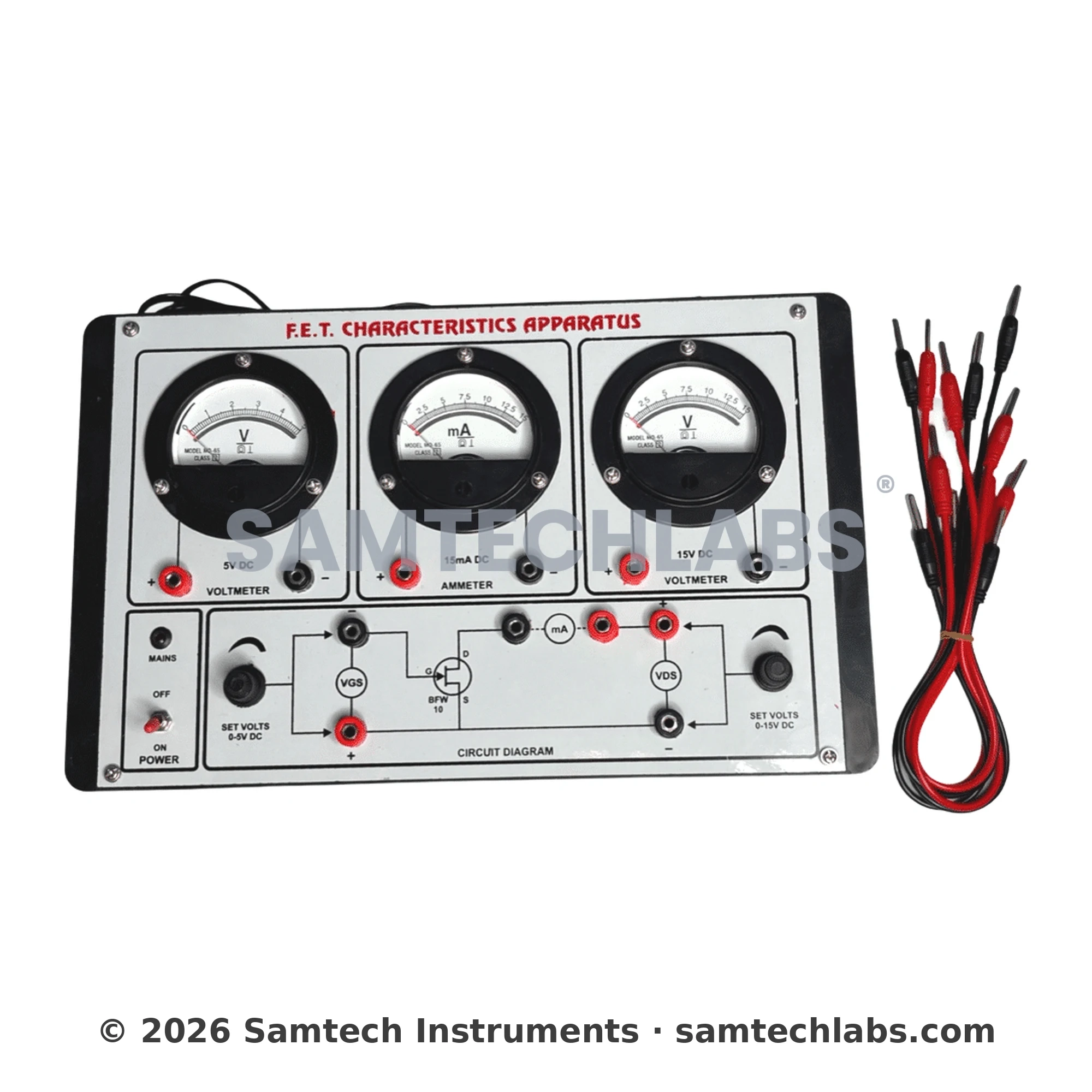

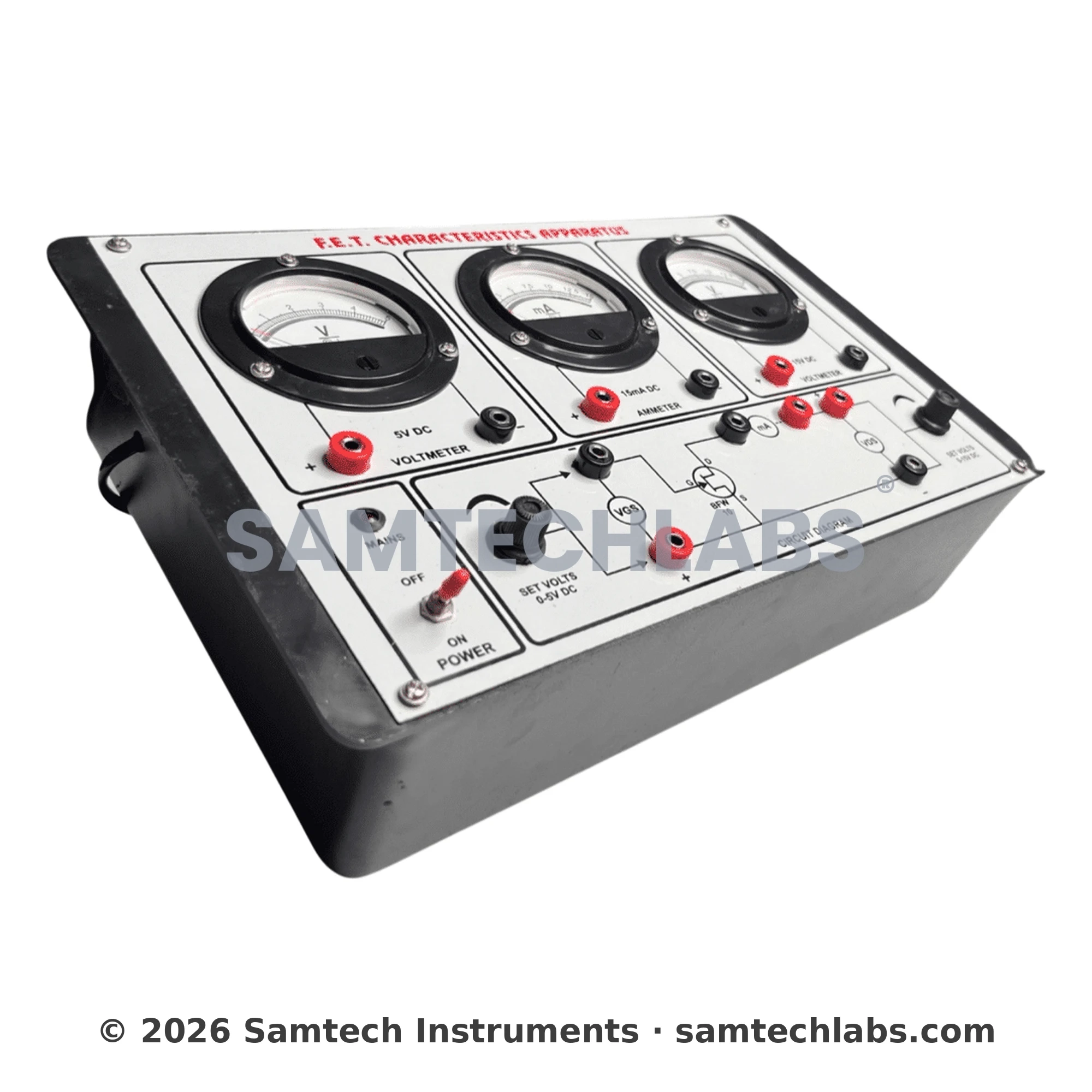

FET Characteristics Apparatus is designed to study the input and output characteristics of FET. Two DC-regulated power supplies 0 – 5 V DC (15 mA), 0 -15 V DC (15 mA), two round meters for voltage & one current meter are provided in this instrument. FET is mounted behind the panel. Connections of supplies, meters & FET are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.

SKU: SAM-218

Original price was: ₹3,000.Current price is: ₹2,350. (Exc. GST)

11 People watching this product now!
  • Pick up from the Samtech Store in Ambala

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

  • Warranty 1 year
  • Free 7-Day Replacement

Description

Technical Specifications :

  • Inbuilt Variable DC Regulated Power Supplies
  • Output voltages : 0-5VDC, 0-15VDC
  • On Board Analog Moving Coil Meters
  • Voltmeter : 0-5VDC, 0-15VDC
  • Ammeter : 0-15mA
  • FET : BFW10
  • Symbol diagram printed on  Front Panel & all important test Points are brought out on front panel
  • Power requirement : 230 VAC 10%, 50Hz.
  • Weight : 2.0Kg Approx.
