Transistor Characteristics Apparatus

  • Includes four Analog meters 1V 250uA 10V 15mA
  • Built-in Power supply
  • Common Emitter NPN type
SKU: SAM-214

Original price was: ₹3,200.Current price is: ₹1,550. (Exc. GST)

14 People watching this product now!
  • Pick up from the Samtech Store in Ambala

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

4-5 Days

200+

  • Warranty 1 year
  • Free 7-Day Replacement

Description

What are Transistors?

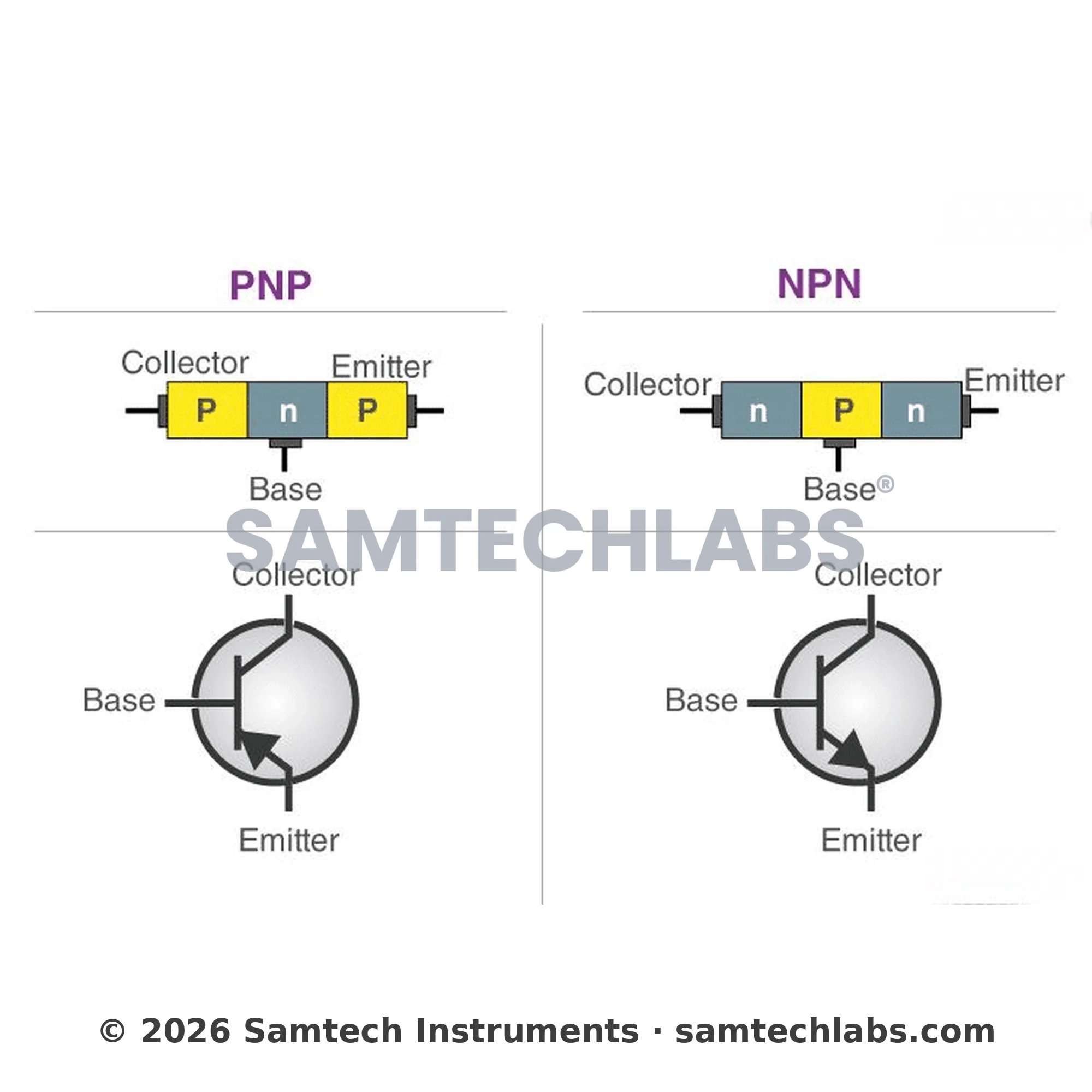

It is a semiconductor device that is widely used in electronic circuits as an amplifier or a switch. Transistors come in different types, such as NPN and PNP, and can be used in different configurations, such as common base, common emitter, and common collector.

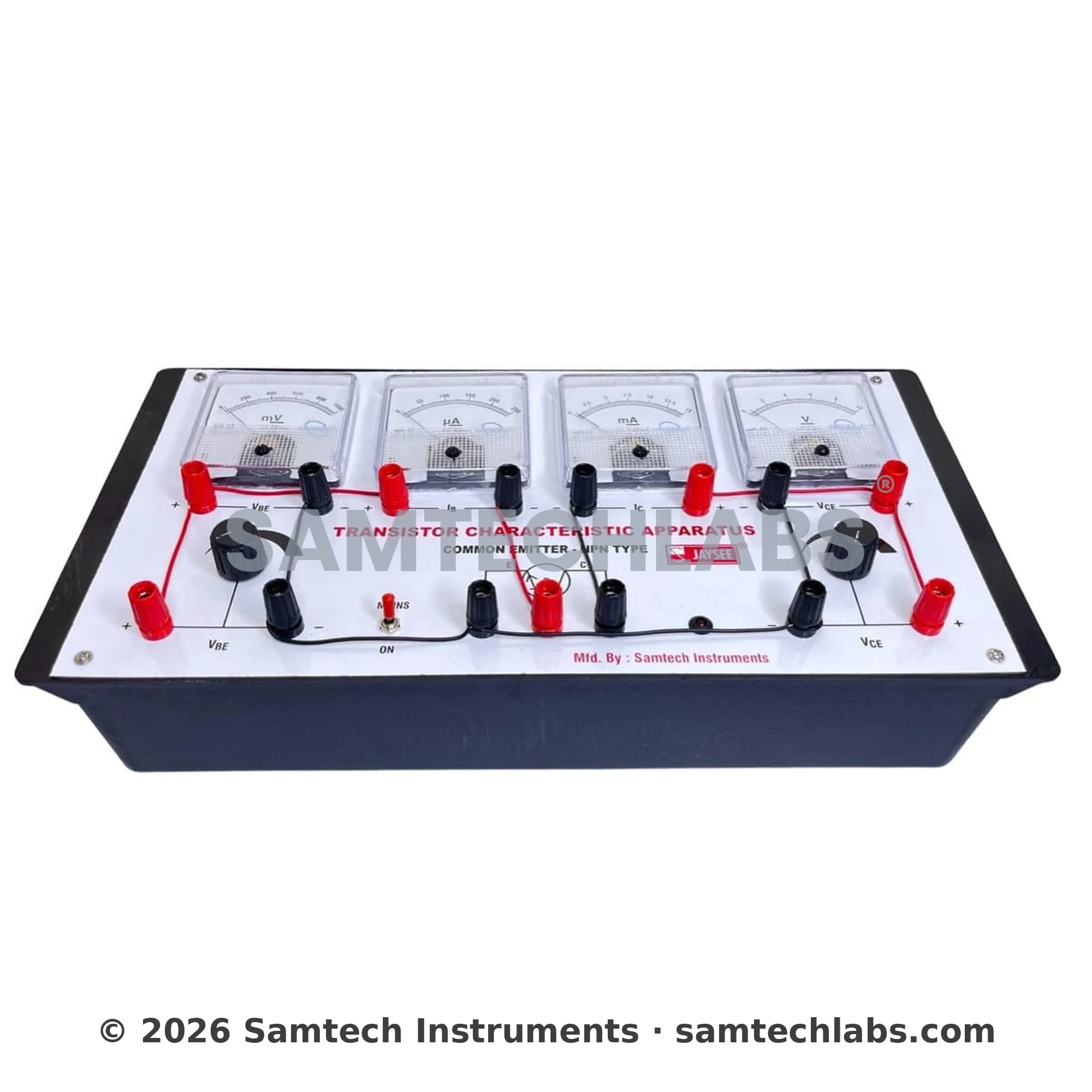

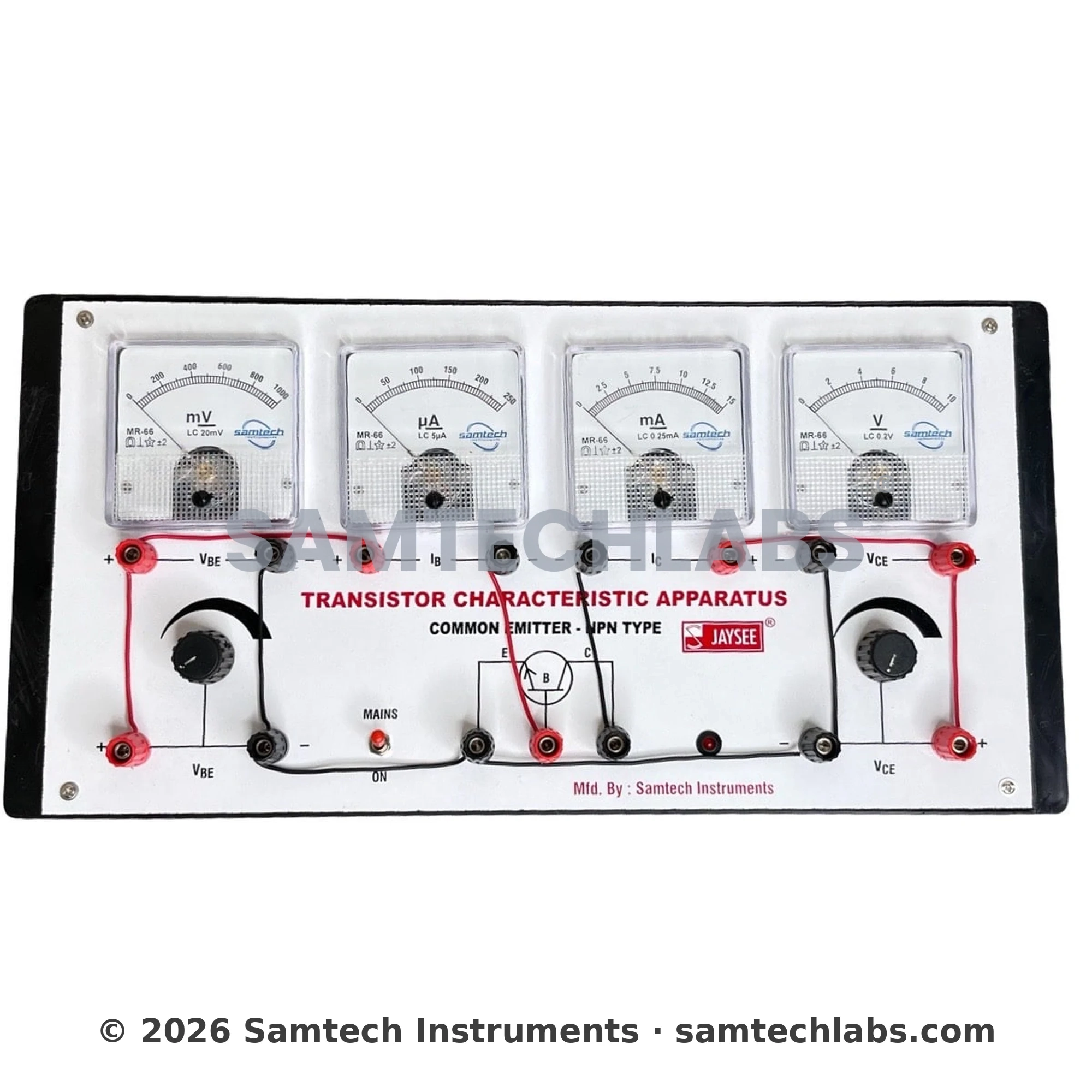

The Apparatus that we have created is designed to help students and electronics enthusiasts understand the characteristics of transistors. The apparatus includes four analog meters for observations of voltage and current, two regulated power supplies of 0-1 V/250 uA and 0-10 V/15 mA, and one NPN Transistor placed inside the cabinet for doing the common base and common emitter practical.

Specifications of our Apparatus

  • Includes four Analog meters for observing voltage and current
  • Two regulated power supplies of 0-1 V250 uA and 0-10 V/15 mA for convenience
  • Includes one NPN transistor for doing the common base and common emitter practical
  • Can be used to study the voltage-current characteristics of transistors in different configurations
  • Ideal for students and electronics enthusiasts who want to learn more about transistors and their applications
  •

Benefits of this Apparatus

By studying the characteristics of transistors using your apparatus, students and electronics enthusiasts can gain a better understanding of how these devices work and how they can be used in electronic circuits.

Specification

Overview

Type

NPN

Brand

JAYSEE
