Spectrometer Prism

Spectrometer Prisms

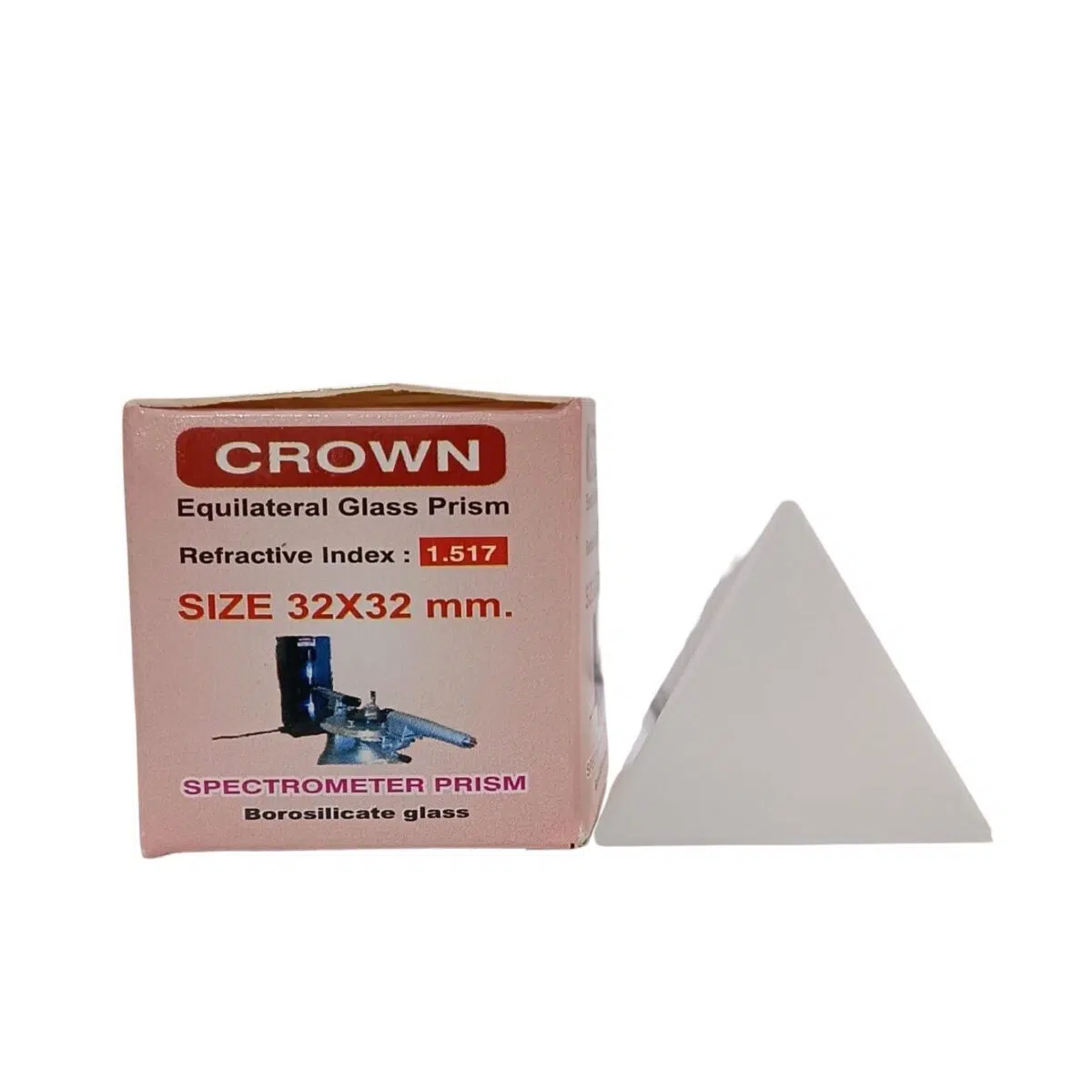

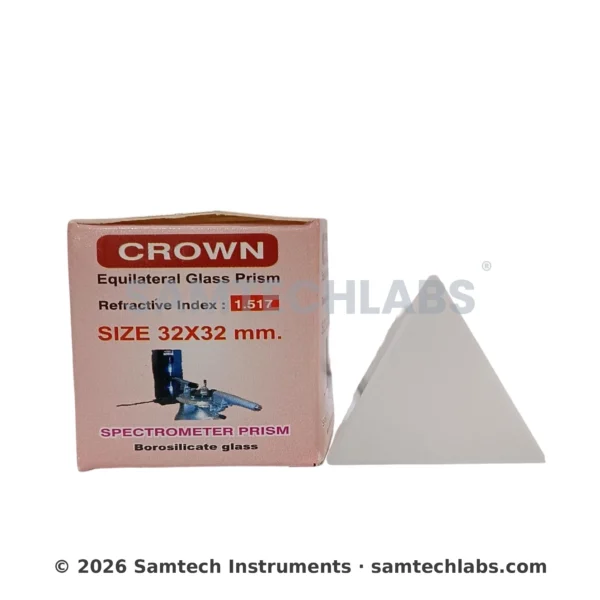

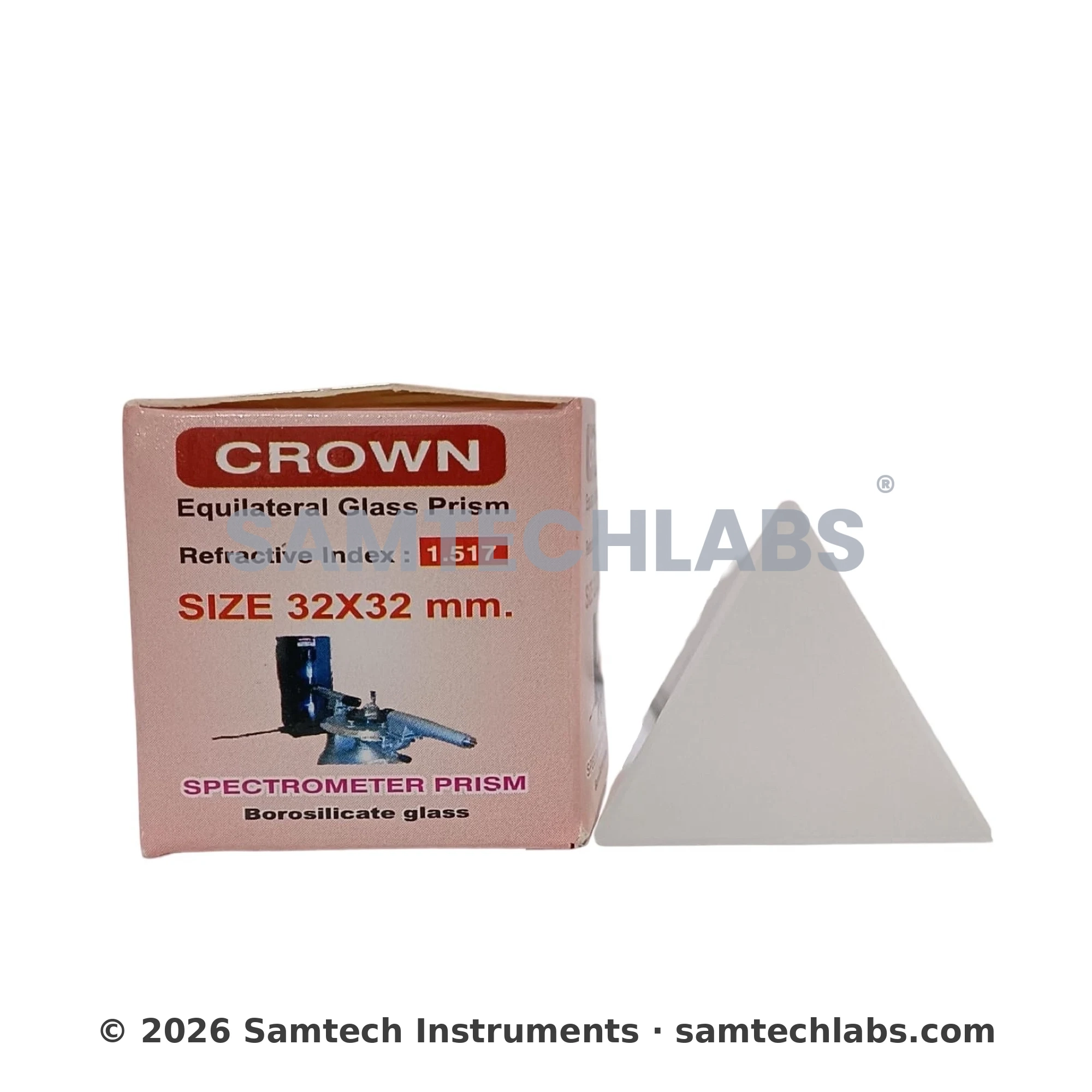

1. Crown Prism

• Material: Crown Glass
• Refractive Index: Lower refractive index compared to flint glasses. Typically around 1.5
• Dispersion: Lower dispersion (i.e., it doesn’t separate light into its constituent colours as much as flint glass).
• Application:
  • Crown prisms are commonly used in optical systems where mild dispersion is required.
  • Used in applications like basic spectrometers or optical instruments where minimizing chromatic aberration (colour distortion) is more important than achieving maximum spectral separation.

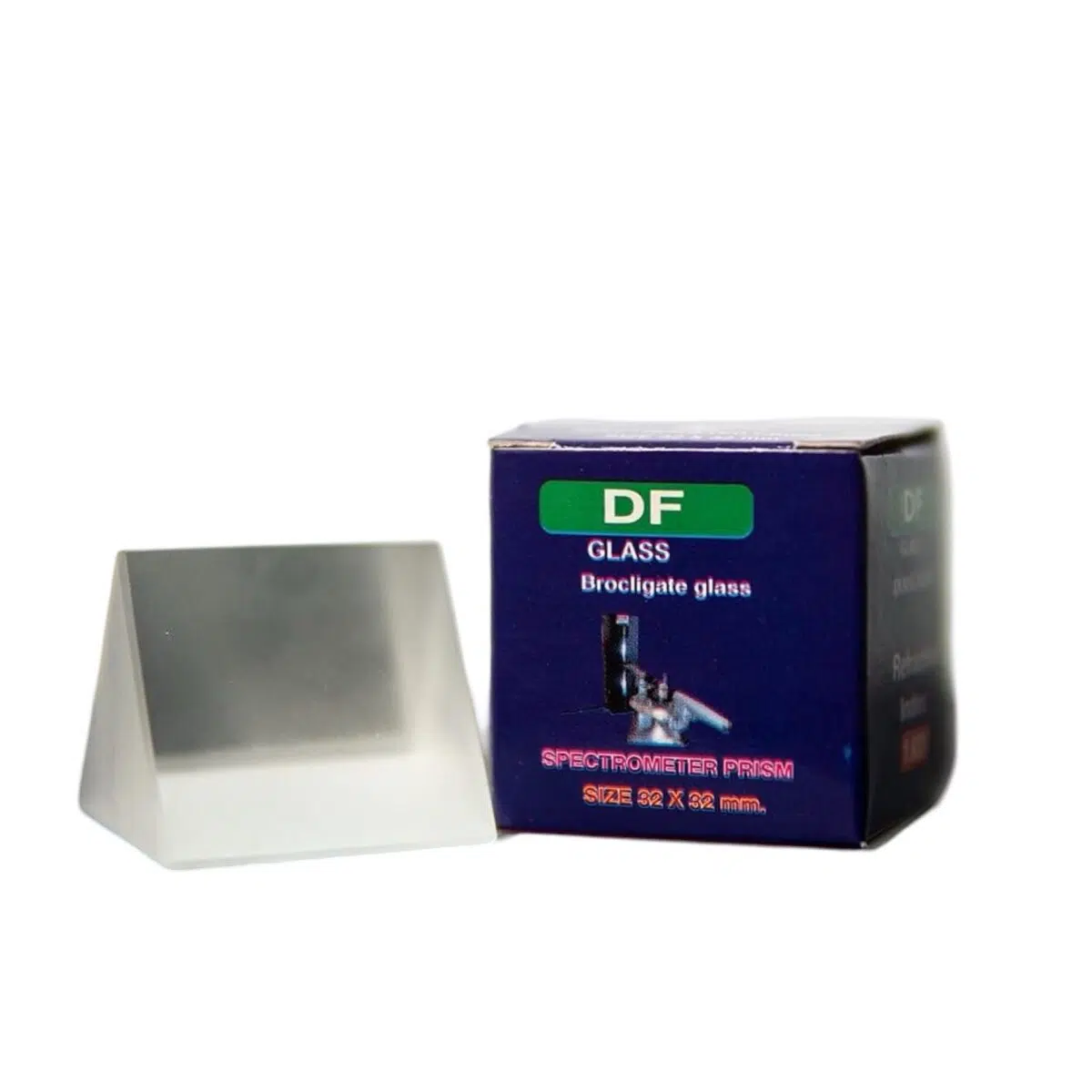

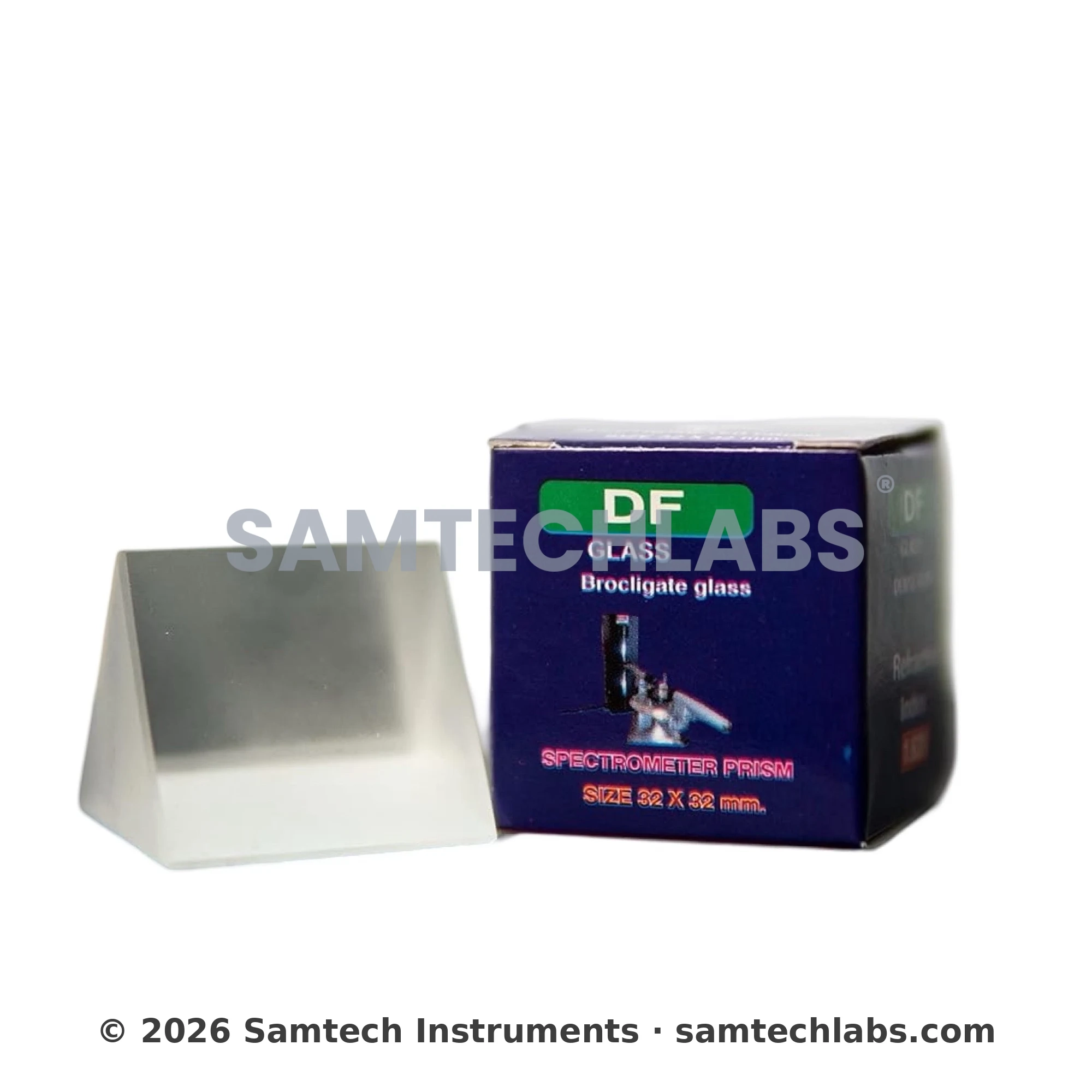

2. DF Prism (Dense Flint)

• Material: Dense Flint Glass
• Refractive Index: Higher refractive index compared to crown glass. Typically, around 1.62.
• Dispersion: High dispersion (strong separation of light into its component colours).
• Application:
  • DF prisms are used in systems where strong dispersion is needed to achieve more precise spectral separation.
  • Ideal for more advanced spectrometers or optical systems where a higher degree of light separation is necessary, such as in spectroscopic analysis and high-resolution spectrometry.

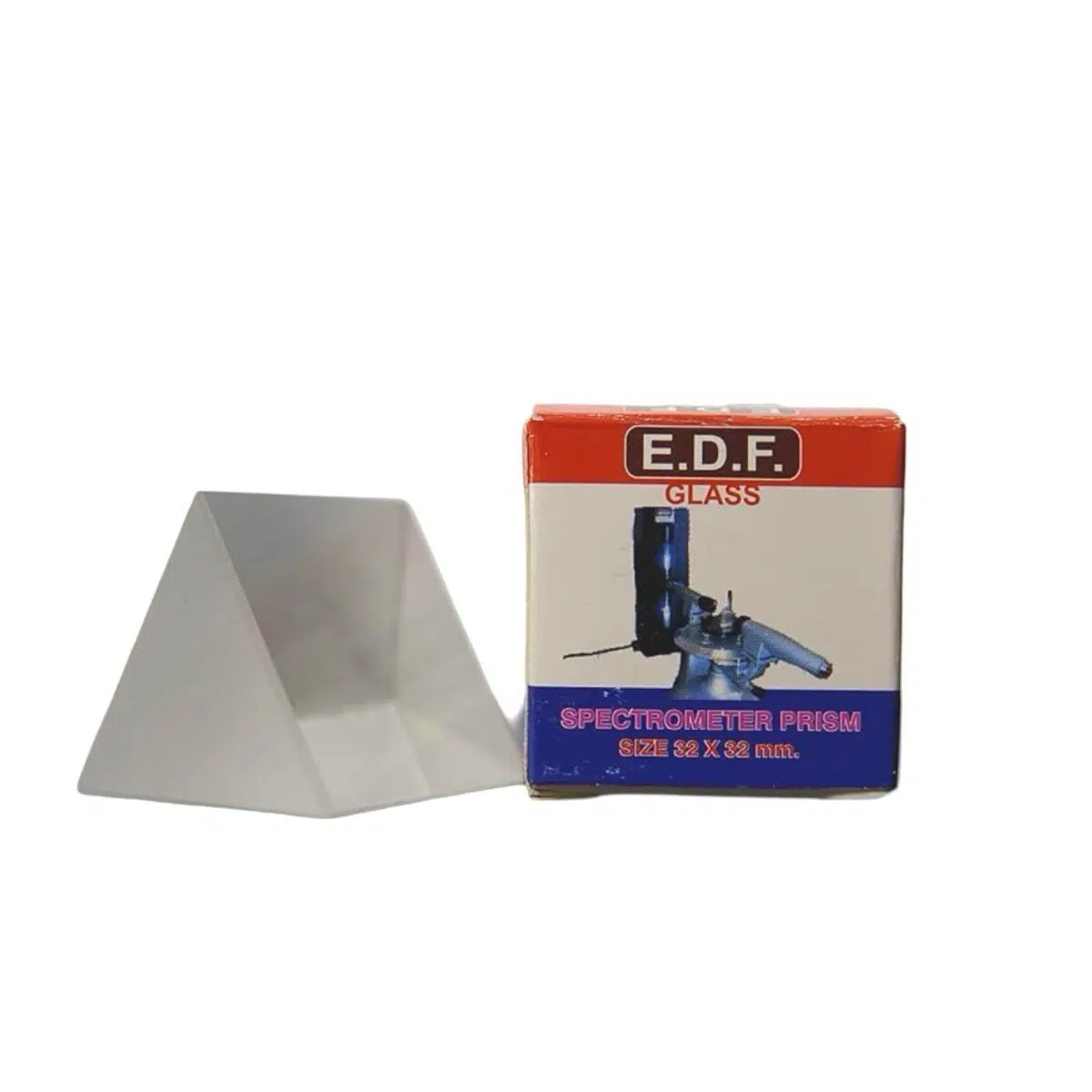

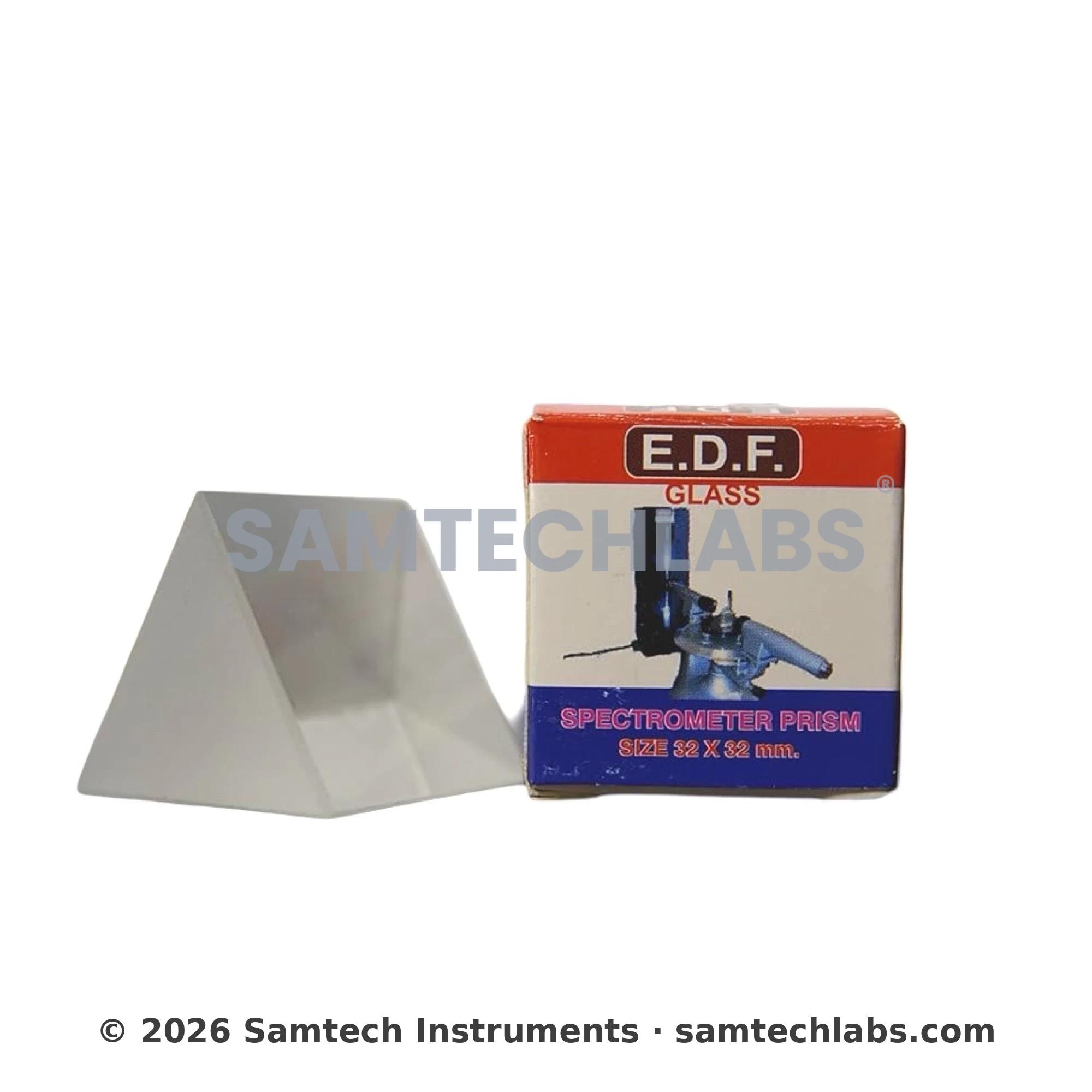

3. EDF Prism (Extra-Dispersion Flint)

• Material: Extra-Dispersion Flint Glass
• Refractive Index: Higher refractive index than regular flint glass, generally ranging from 1.65.
• Dispersion: Very high dispersion (this glass type provides a stronger separation of light into its component colors).
• Application:
  • EDF prisms are designed for applications where maximum dispersion is needed. They are ideal for high-precision spectrometers that require a high level of spectral separation.
  • Often used in optical instruments that need to analyze fine details in the spectrum or separate light very effectively for accurate wavelength measurement.
